Connector End View (C3134) - INLINE
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Inline C3134
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness 2B254
FEMALE
Harness 14A005
| Pin | Circuit | Gauge | Qualifier |
| 1 | CCB18 (YE-GY) | 12 | |
| 2 | CCB19 (GN-BN) | 12 |
| Available Pigtail Kits | |

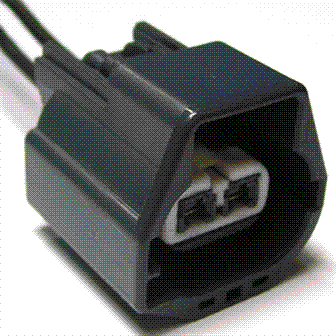

| Pigtail Kit Part Number WPT-1336 |
Service Part Number: DU2Z-14S411-KA Gauge: 16 Pin material: Tin Cavities: 2 Vehicle Uses: Motor - Fuel Filler Door Motor - Power Window - LH - Rear Motor - Power Window - RH - Rear |
| Pigtail Kit Part Number WPT-1496 |
Service Part Number: DU2Z-14S411-KB Gauge: 14 Pin material: Tin Cavities: 2 Vehicle Uses: Glow Plug Motor - Fuel Filler Door Motor - Power Slider Motor - Power Window - LH - Front Motor - Power Window - LH - Rear Motor - Power Window - RH - Front Motor - Power Window - RH - Rear |
