Connector End View (C3127) - FUEL PUMP (FP) ASSEMBLY
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C3127
Description
FUEL PUMP (FP) ASSEMBLY
Color
Harness
14A069
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | RMC11 (GN-BU) | 18 | #N/A | China |
| 1 | RMC32 (GN-BU) | 18 | CTRL MOD. - SENSOR FUEL LEVEL | Fusion/MKZ |
| 2 | VMC11 (YE-VT) | 18 | SENSOR - FUEL LEVEL (FLI) | |
| 3 | * | * | Not Used | |
| 4 | RE515 (GN-BN) | 12 | DRIVER - FUEL PUMP MOTOR (FPDM) - | |
| 4 | RE515 (WH-BN) | 12 | DRIVER - FUEL PUMP MOTOR (FPDM) - | Fusion/MKZ |
| 5 | CE515 (YE-GY) | 12 | DRIVER - FUEL PUMP MOTOR (FPDM) + | China |

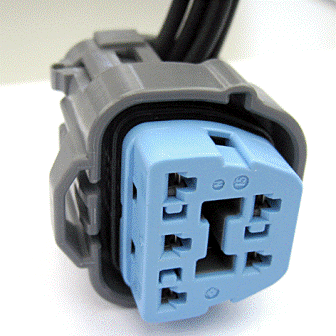

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-909 |
Service Part Number: 8U2Z-14S411-NA Gauge: 14 Pin material: Tin Cavities: 5 Vehicle Uses Control - Engine Air Shutoff Fuel Pump/Sending Unit Resistor - Blower Motor (Front) |
