Connector End View (C2606) - INLINE
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Inline C2606
Description
INLINE
Color
Base Part #
Service Pigtail
See Below
MALE
Harness PIA
FEMALE
Harness 14K147
| Pin | Circuit | Gauge | Qualifier |
| 1 | CRH02 (BU) | * | |
| 2 | LX105 (BK-BU) | * | |
| 3 | RX101 (BU-BK) | * | |
| 4 | RX102 (BU-RD) | * | |
| 5 | VLN04 (BN) | * | |
| 6 | RRH02 (PK) | * | |
| 7 | * | * | |
| 8 | * | * |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1219 |

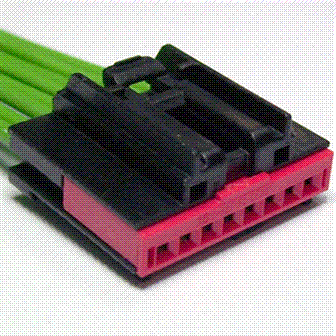

Service Part Number: 3U2Z-14S411-DAAC Gauge: 18 Pin material: Silver Cavities: 8 Vehicle Uses: Switch - Ambient Lighting Dimmer Switch - Door Lock (LH) Switch - Message Center Switch - Moon Roof/Sun Roof Switch - Seat Memory |
