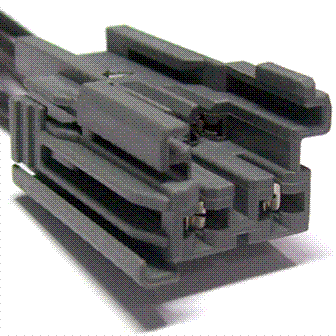

Connector End View (C2600) - ADJUSTABLE STEERING COLUMN MOTOR, TILT
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2600
Description
ADJUSTABLE STEERING COLUMN MOTOR, TILT
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CPP23 (VT-GY) | 20 | CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) DOWN | |
| 2 | CPP04 (GY) | 20 | CTRL MOD. - MOTOR ADJUSTABLE STEERING COLUMN TILT (RAKE) UP | |
| 3 | CPP05 (WH-VT) | 20 | CTRL MOD. - MOTORS ADJUSTABLE STEERING COLUMN COMMON | |
| 4 | VPP08 (WH) | 20 | SENSOR - ADJUSTABLE STEERING COLUMN TILT (RAKE) |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-1501 |
Service Part Number: AU2Z-14S411-RB Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses Motor - Power Seat Track Motor - Seat Height (Front) Motor - Seat Height (Rear) Motor - Seat Recline Motor - Steering Column Adjust |
| Pigtail Kit Part Number WPT-1072 |
Service Part Number: AU2Z-14S411-RA Gauge: 14 18 Pin material: Tin Cavities: 4 Vehicle Uses Motor - Power Seat Track Motor - Seat Height (Front) Motor - Steering Column Adjust |
