Connector End View (C2406) - HEATED STEERING WHEEL MODULE
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Connector: C2406
Description
HEATED STEERING WHEEL MODULE
Color
Harness
14401
Base Part #
part# N/A
Service Pigtail
See Below
Check for Terminal Part Numbers
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
| 1 | CBP37 (WH) | 14 | FUSE - 37 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | VDB07 (VT) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 3 | VDB07 (VT) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW | |
| 4 | VDB06 (GY) | 26 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 4 | VDB06 (GY) | 22 | CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH | |
| 5 | CHS71 (BU) | 22 | CTRL MOD. - HEATER STEERING WHEEL # SENSOR POWER | |
| 6 | * | * | Not Used | |
| 7 | RHS72 (YE-GY) | 20 | CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT - | |
| 8 | CHS72 (YE-BU) | 20 | CTRL MOD. - HEATER STEERING WHEEL # HEATER ELEMENT + | |
| 9 | * | * | Not Used | |
| 10 | * | * | Not Used | |
| 11 | * | * | Not Used | |
| 12 | RHS73 (BN-BU) | 22 | CTRL MOD. - HEATER STEERING WHEEL # SENSOR | |
| 13 | * | * | Not Used | |
| 14 | GD214 (BK-BU) | 20 | GROUND - INSTRUMENT PANEL STRUCTURE |

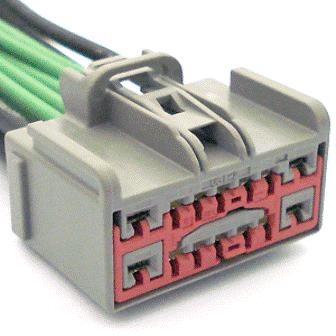

| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-955 |
Service Part Number: 3U2Z-14S411-BJAC Gauge: 12 14 16 Pin material: Tin & Silver Cavities: 14 Vehicle Uses Connector - Inline |
