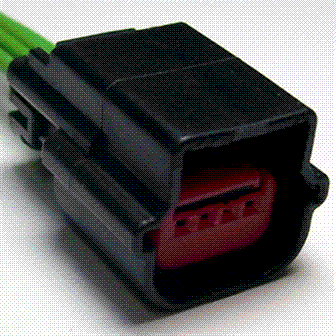

Connector End View (C2299) - BRAKE PEDAL POSITION SWITCH

WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

Connector: C2299

Description

BRAKE PEDAL POSITION SWITCH

Color

Harness

12A581

Base Part #

part# N/A

Service Pigtail

See Below

Courtesy of FORD MOTOR COMPANY

Check for Terminal Part Numbers

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	VCA43 (WH-GN)	20	SENSOR - BRAKE PEDAL POSITION/ANGLE 2
2	RCA27 (WH)	20	CTRL MOD. - SENSOR BRAKE PEDAL POSITION -
3	LCA27 (BN-WH)	20	CTRL MOD. - SENSOR BRAKE PEDAL POSITION +
4	VCA30 (YE-VT)	20	SENSOR - BRAKE PEDAL POSITION/ANGLE 1

Available Pigtail Kits

Pigtail Kit Part Number

WPT-1307

Courtesy of FORD MOTOR COMPANY

Service Part Number:

CU2Z-14S411-AGA

Gauge:

Pin material:

Silver

Cavities:

Vehicle Uses

Antenna - Keyless Entry

Sensor - Brake Pedal Position

Sensor - Clutch Master Cylinder
