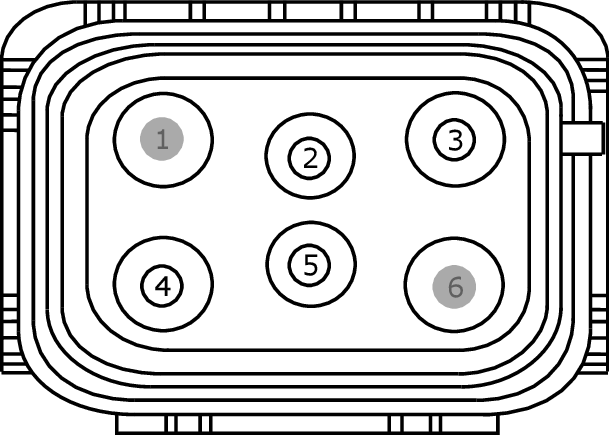

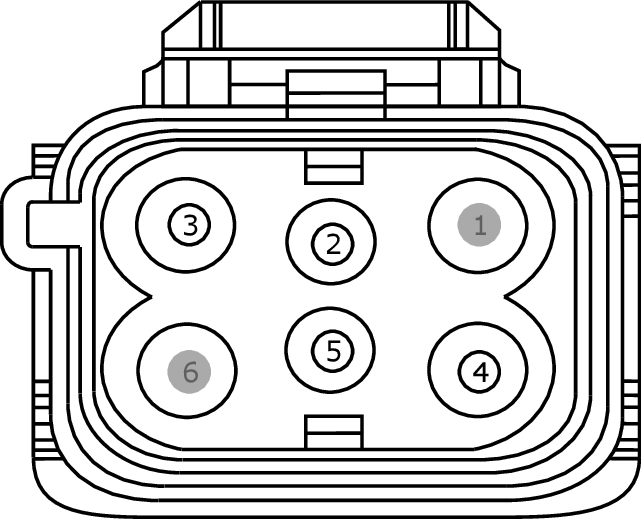

Connector End View (C1824) - INLINE
WARNING: This page is about a different car, the 2017 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Inline C1824
Description
INLINE
Color
Base Part #
Service Pigtail
Not Available
Harness 14B322 Harness 14B308
 Courtesy of FORD MOTOR COMPANY
|
 Courtesy of FORD MOTOR COMPANY
|
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
* |
* |
| 2 |
CYB56 (WH-VT) |
20 |
| 3 |
HYB53 (OG) |
12 |
| 4 |
HYB54 (OG) |
12 |
| 5 |
CYB55 (YE-GY) |
20 |
| 6 |
* |
* |
14B308 |
