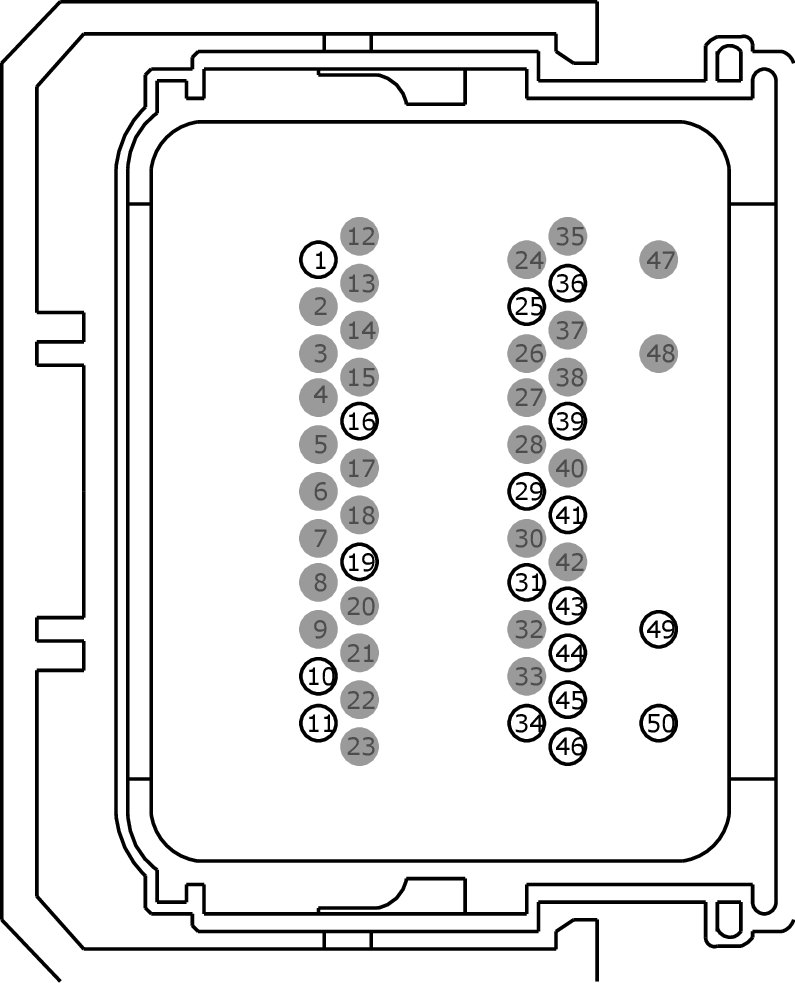

Connector End View (C1551T) - POWERTRAIN CONTROL MODULE (PCM)
Connector:C1551T
Description
POWERTRAIN CONTROL MODULE (PCM)
Color
Harness
12C508
Base Part #
part# N/A
Service Pigtail
Not Available
Check for Terminal Part Numbers
|
Pin |
Circuit |
Gauge |
Circuit Function |
Qualifier |
|
1 |
B-LE111 (VT-GN) |
20 |
CTRL MOD. - POWERTRAIN # BUFFERED POWER SUPPLY SENSORS (VBPWR) |
|
|
2 |
* |
* |
Not Used |
|
|
3 |
* |
* |
Not Used |
|
|
4 |
* |
* |
Not Used |
|
|
5 |
* |
* |
Not Used |
|
|
6 |
* |
* |
Not Used |
|
|
7 |
* |
* |
Not Used |
|
|
8 |
* |
* |
Not Used |
|
|
9 |
* |
* |
Not Used |
|
|
10 |
CET08 (BN-WH) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID D (SSD) |
|
|
11 |
CET18 (GY-YE) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID E (SSE) |
|
|
12 |
* |
* |
Not Used |
|
|
13 |
* |
* |
Not Used |
|
|
14 |
* |
* |
Not Used |
|
|
15 |
* |
* |
Not Used |
|
|
16 |
VET33 (WH-OG) |
20 |
SENSOR - TURBINE/TRANSMISSION SHAFT SPEED (TSS) + |
|
|
17 |
* |
* |
Not Used |
|
|
18 |
* |
* |
Not Used |
|
|
19 |
VET27 (BN-YE) |
20 |
SENSOR - TRANSMISSION FLUID TEMPERATURE (TFT) |
|
|
20 |
* |
* |
Not Used |
|
|
21 |
* |
* |
Not Used |
|
|
22 |
* |
* |
Not Used |
|
|
23 |
* |
* |
Not Used |
|
|
24 |
* |
* |
Not Used |
|
|
25 |
VET26 (BN-GN) |
20 |
SENSOR - OUTPUT SHAFT SPEED (OSS) |
|
|
26 |
* |
* |
Not Used |
|
|
27 |
* |
* |
Not Used |
|
|
28 |
* |
* |
Not Used |
|
|
29 |
VE731 (YE-GN) |
18 |
SENSOR - HEATED OXYGEN POST CAT. 1ST OR UNIQUE (HO2S12) |
|
|
30 |
* |
* |
Not Used |
|
|
31 |
CET34 (BN-GN) |
18 |
SWITCH - TRANSMISSION CONTROL / OVERDRIVE CANCEL (TCS) |
|
|
32 |
* |
* |
Not Used |
|
|
33 |
* |
* |
Not Used |
|
|
34 |
CET09 (YE-VT) |
20 |
LINE PRESSURE CONTROL (LPC) |
|
|
35 |
* |
* |
Not Used |
|
|
36 |
RET24 (BN-BU) |
20 |
CTRL MOD. - POWERTRAIN # TRANSMISSION RANGE SIGNAL RETURN (TRGND) |
|
|
37 |
* |
* |
Not Used |
|
|
38 |
* |
* |
Not Used |
|
|
39 |
VET32 (VT) |
20 |
SENSOR - TRANSMISSION RANGE # 4 (TR4) [DTRS] |
|
|
40 |
* |
* |
Not Used |
|
|
41 |
RE406 (GY-VT) |
20 |
CTRL MOD. - POWERTRAIN # SIGNAL RETURN TRANSMISSION (T-SIGRTN) (SIGRTN-B) |
|
|
42 |
* |
* |
Not Used |
|
|
43 |
CET06 (GN-BN) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID B (SSB) |
|
|
44 |
CET07 (GY-OG) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID C (SSC) |
|
|
45 |
CET05 (BU-GN) |
20 |
CTRL MOD. - POWERTRAIN # SHIFT SOLENOID A (SSA) |
|
|
46 |
CET10 (BU-GY) |
20 |
TORQUE CONVERTER CLUTCH (TCC) SOLENOID |
|
|
47 |
* |
* |
Not Used |
|
|
48 |
* |
* |
Not Used |
|
|
49 |
CE233 (WH-OG) |
18 |
CTRL MOD. - POWERTRAIN # HEATER OXYGEN SEN. POST CAT. 1ST OR UNIQUE (HTR12) |
|
|
50 |
CET25 (BU-GN) |
18 |
CTRL MOD. - POWERTRAIN # TRANSMISSION SOLENOID POWER CONTROL (TSPC) |
