Headliner - Lowering - SuperCrew

WARNING: This page is about a different car, the 2017 Ford F-150. However, it is still accessible from the selected car via links, so may be relevant.

Remove the following items:
1. On both sides, remove the A-pillar trim panels. Refer to: A-Pillar Trim Panel .
2. On both sides, remove the B-pillar trim panels. Refer to: B-Pillar Trim Panel - SuperCrew .
3. On both sides, remove the C-pillar trim panels. Refer to: C-Pillar Trim Panel .
NOTE: LH side shown, RH side similar.

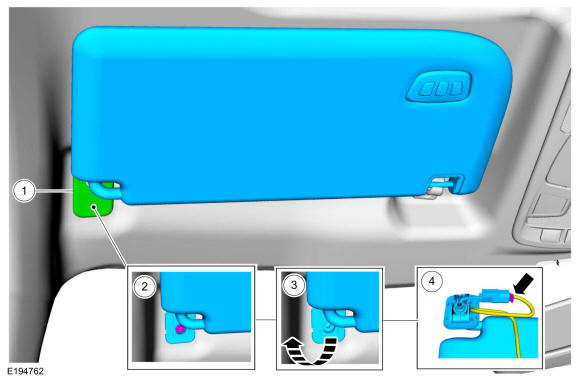

On both sides. Remove the sun visor.
1. Remove the retainer cover.
2. Remove the retainer.
3. Remove the sun visor.
4. If equipped. Disconnect the electrical connector.
Courtesy of FORD MOTOR COMPANY
NOTE: LH side shown, RH side similar.

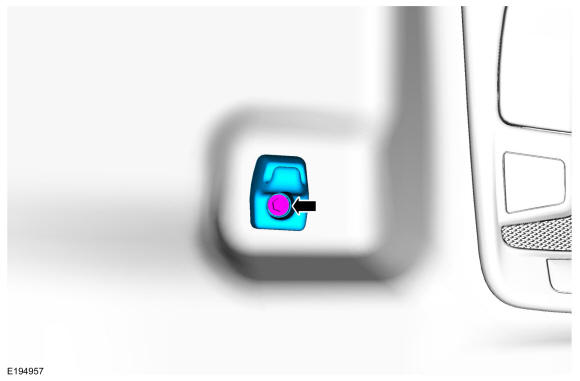

On both sides. Remove the retainers and the sun visor clips.

Courtesy of FORD MOTOR COMPANY

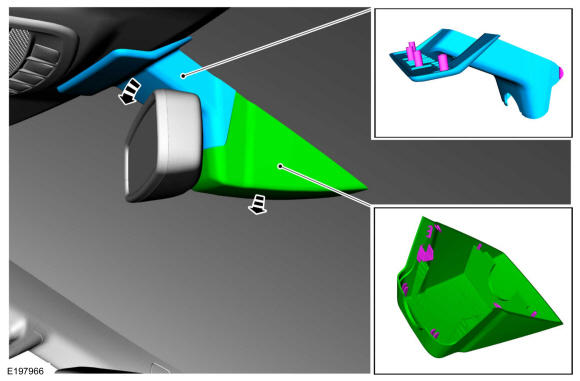

If equipped. Release the clips and remove the rain sensor covers.

Courtesy of FORD MOTOR COMPANY

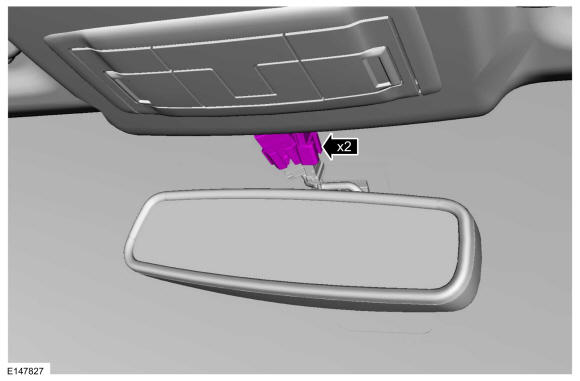

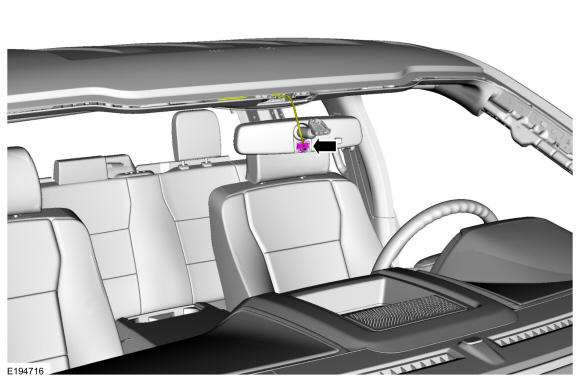

If equipped. Disconnect the rear view mirror electrical connector.

Courtesy of FORD MOTOR COMPANY
If equipped. Disconnect the rain sensor electrical connector.

Courtesy of FORD MOTOR COMPANY

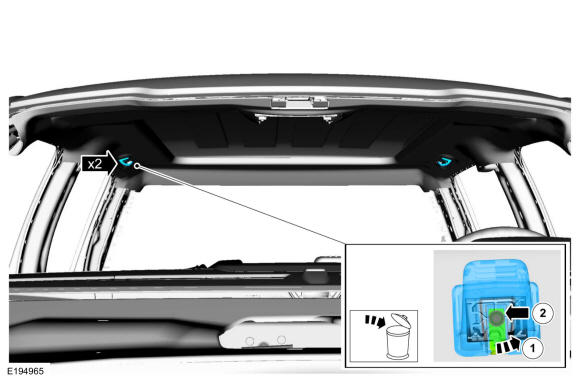

On both sides. Remove the garment hooks.
1. Open the garment hook retainer cover.
2. Remove the retainer and the garment hook.
Courtesy of FORD MOTOR COMPANY

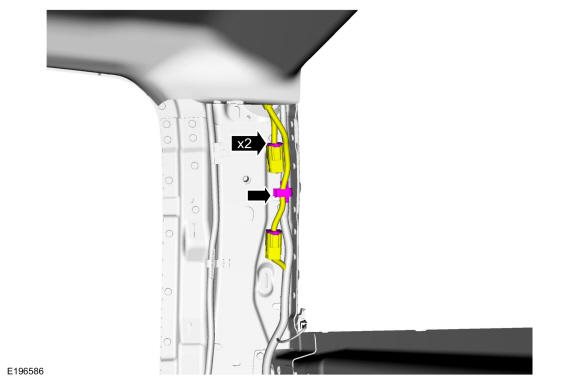

Disconnect the headliner wiring harness connectors and position aside the wiring harness.

Courtesy of FORD MOTOR COMPANY
NOTE: The seat backrest latch is only accessible when the seat cushion is raised.

NOTE: The striker should be in its lowest position for the latch to engage.

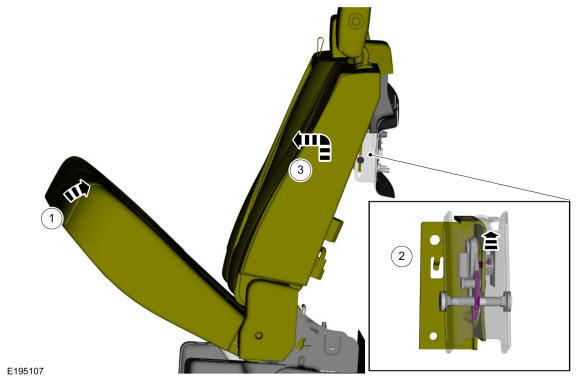

Fold the LH rear seat backrest down.
1. Raise the seat cushion.
2. Release the backrest latch.
3. Fold the backrest down.
Courtesy of FORD MOTOR COMPANY

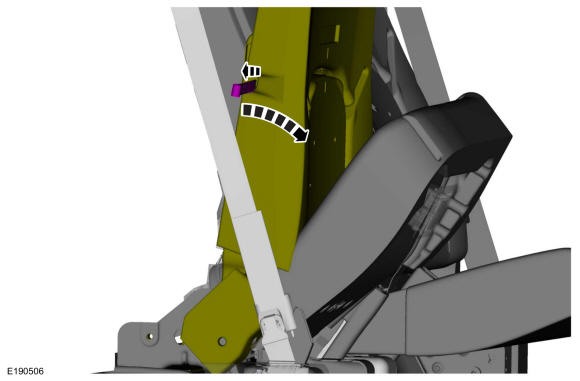

Pull the backrest release strap and fold the RH rear seat backrest forward.

Courtesy of FORD MOTOR COMPANY

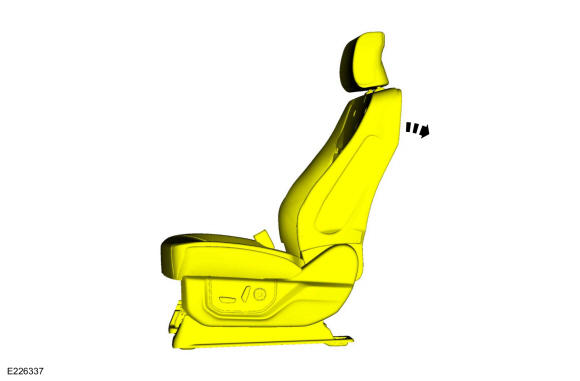

On both sides. Fully recline the front seat backrest.

Courtesy of FORD MOTOR COMPANY

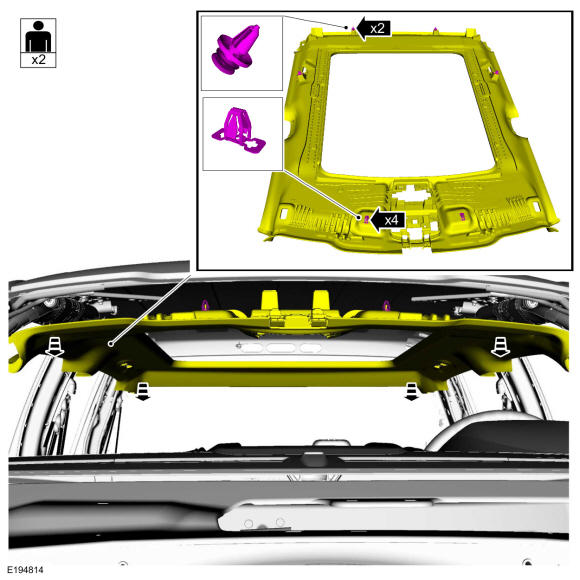

Release the clips and lower the headliner.

Courtesy of FORD MOTOR COMPANY
