WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.
Fig 1: Turn Signal/Stop/Hazard Lamps Wiring Diagram (1 of 6)
Courtesy of FORD MOTOR COMPANY

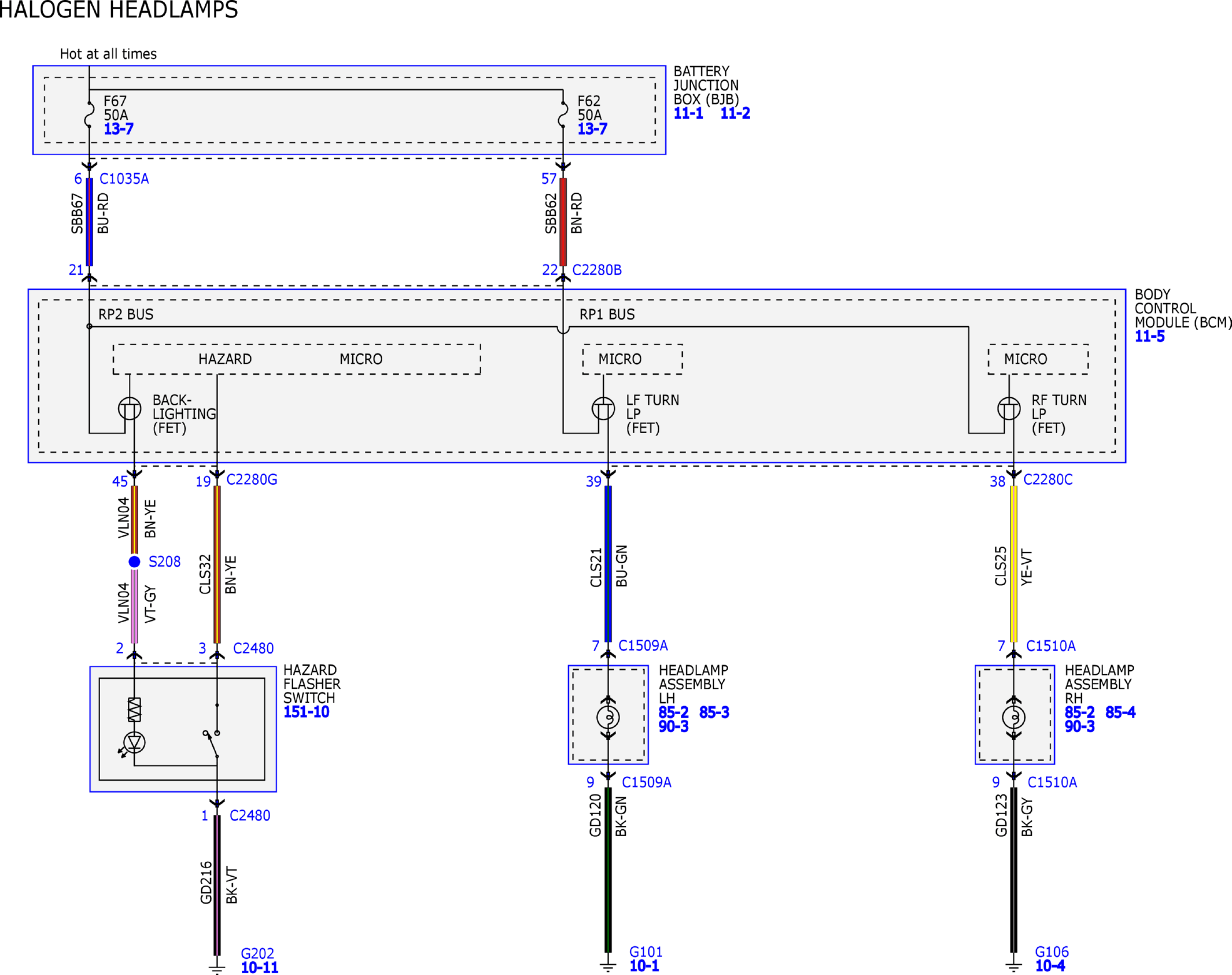

Fig 2: Turn Signal/Stop/Hazard Lamps Wiring Diagram (2 of 6)
Courtesy of FORD MOTOR COMPANY

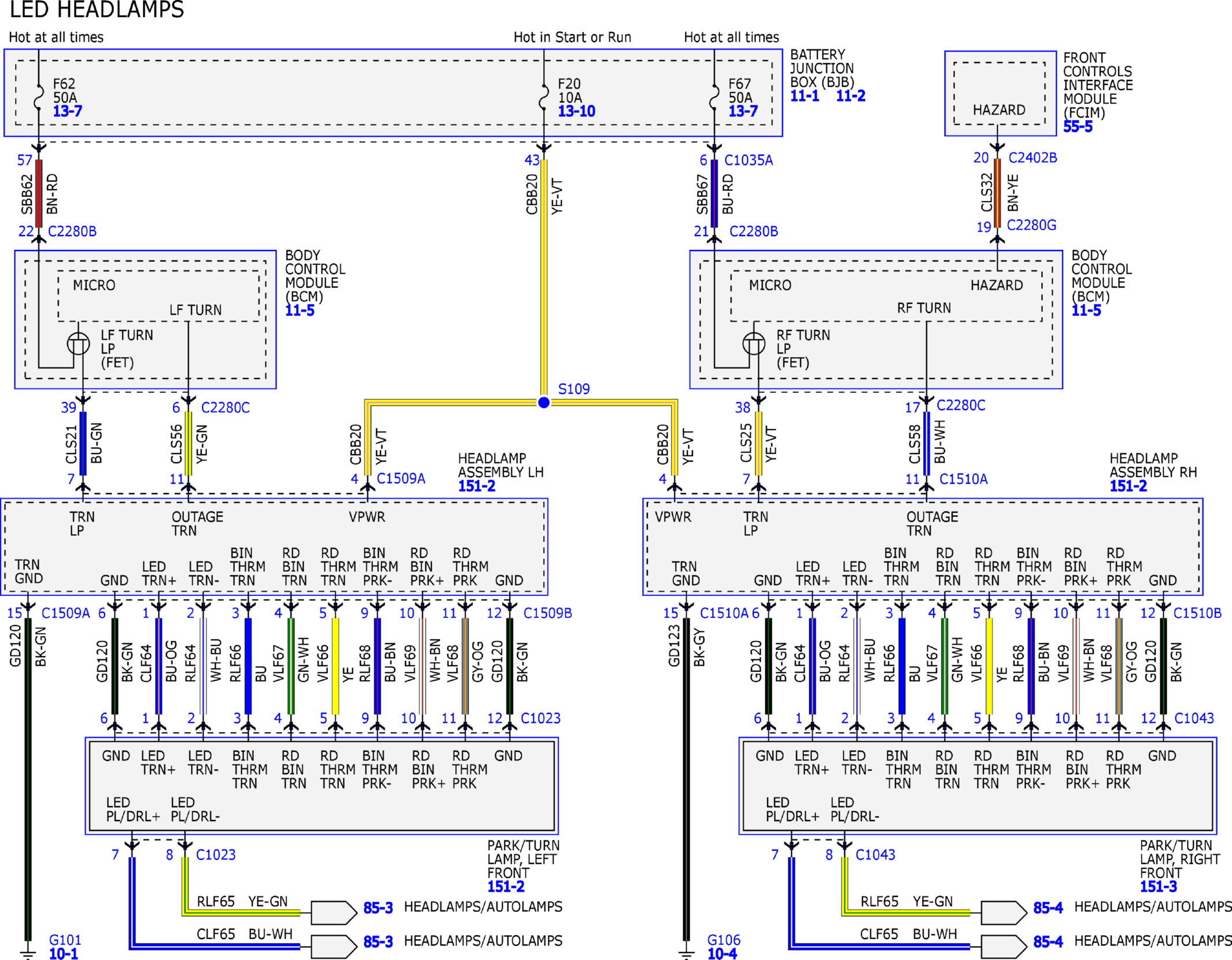

Fig 3: Turn Signal/Stop/Hazard Lamps Wiring Diagram (3 of 6)
Courtesy of FORD MOTOR COMPANY

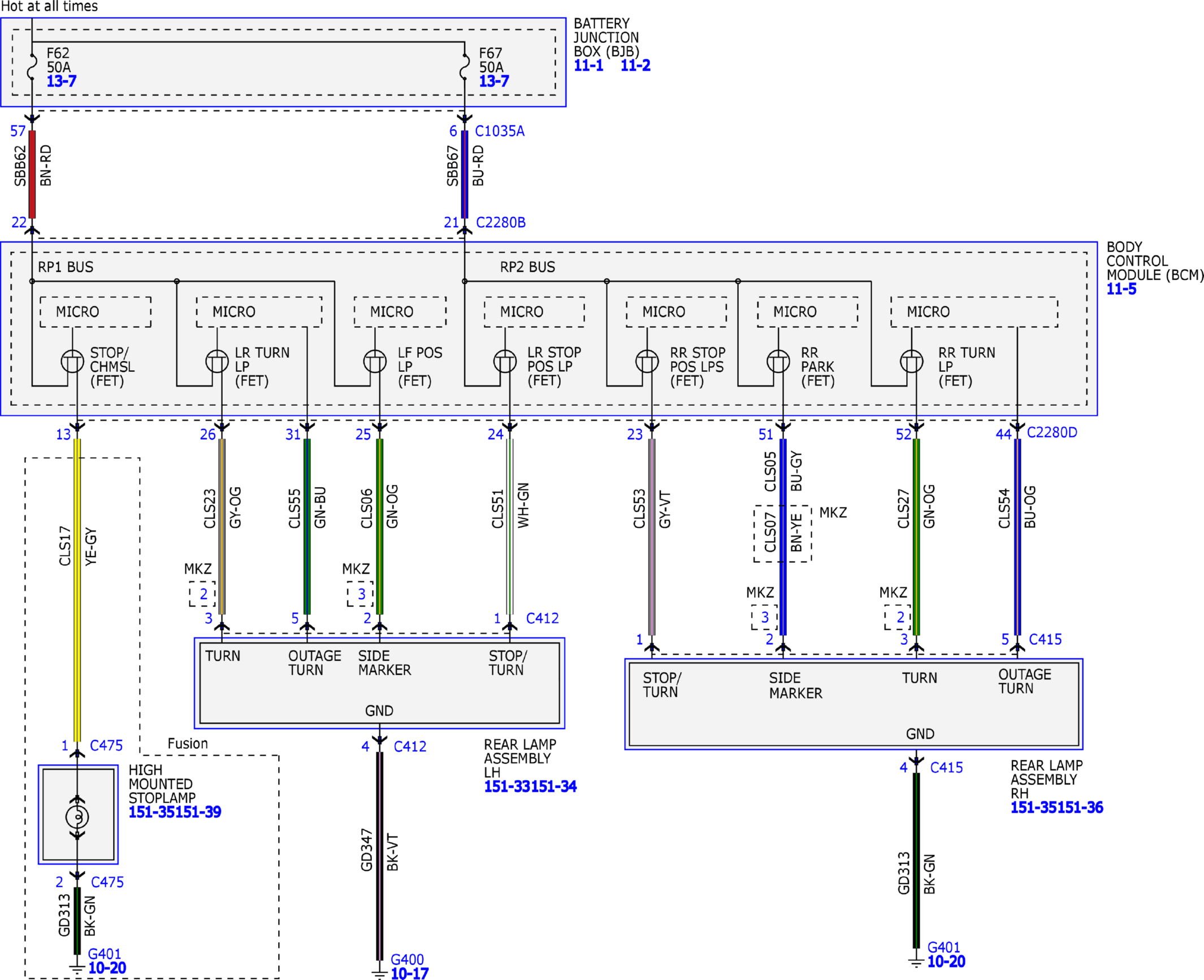

Fig 4: Turn Signal/Stop/Hazard Lamps Wiring Diagram (4 of 6)
Courtesy of FORD MOTOR COMPANY

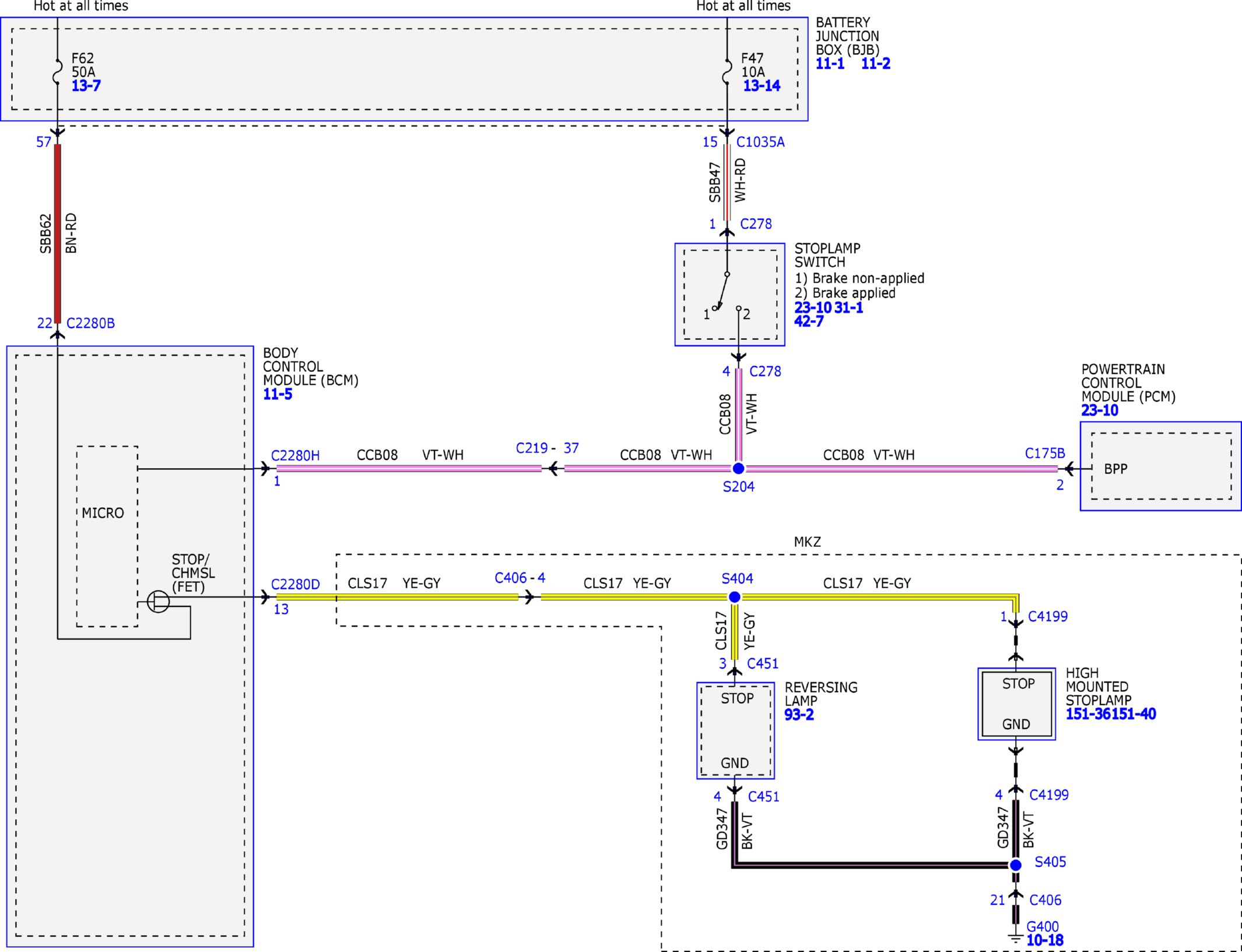

Fig 5: Turn Signal/Stop/Hazard Lamps Wiring Diagram (5 of 6)
Courtesy of FORD MOTOR COMPANY

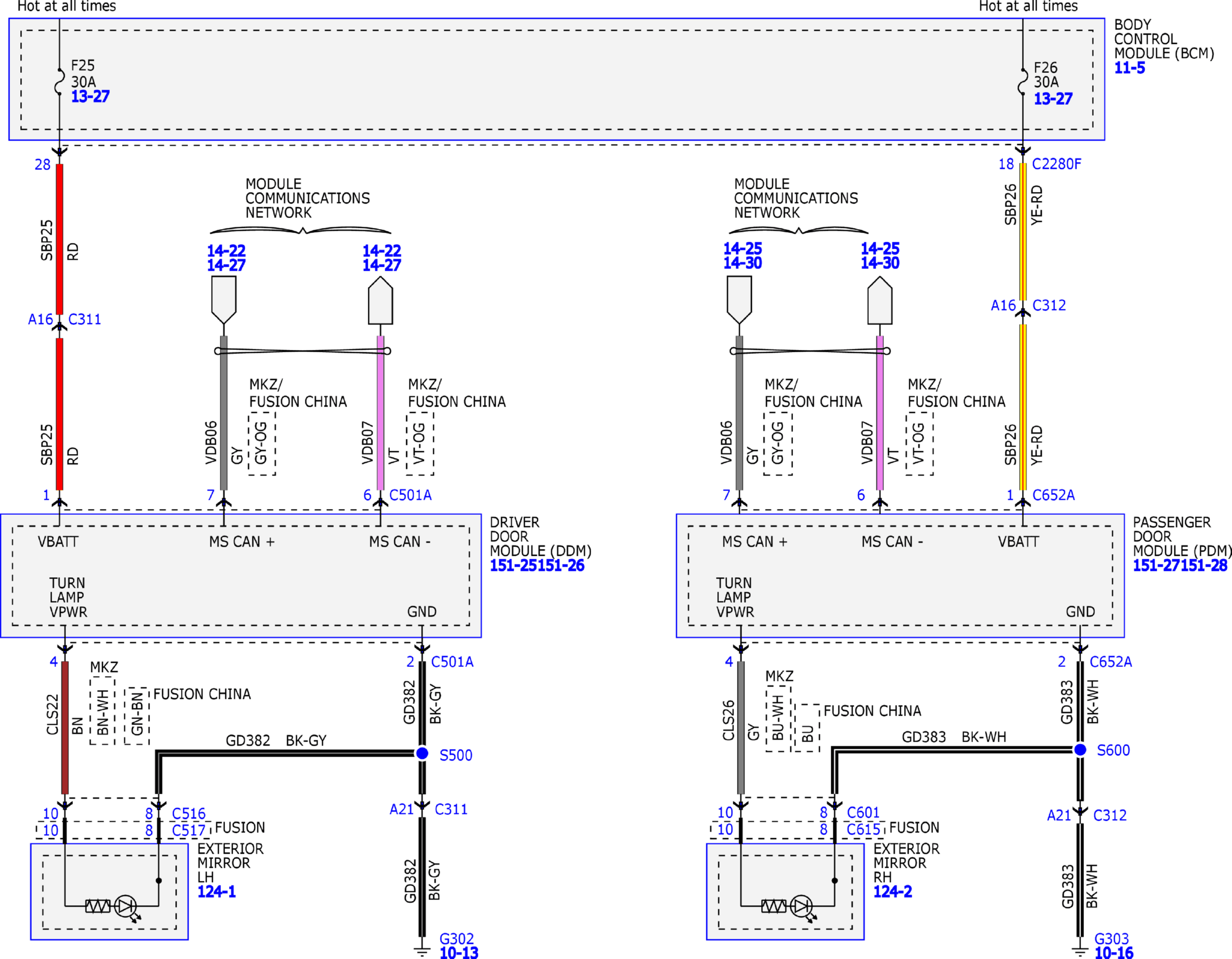

Fig 6: Turn Signal/Stop/Hazard Lamps Wiring Diagram (6 of 6)
