Section 1121 (OEM Wiring Diagrams (Hybrid/ENERGI))
>>
Starting System
Starting System
WARNING:
This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

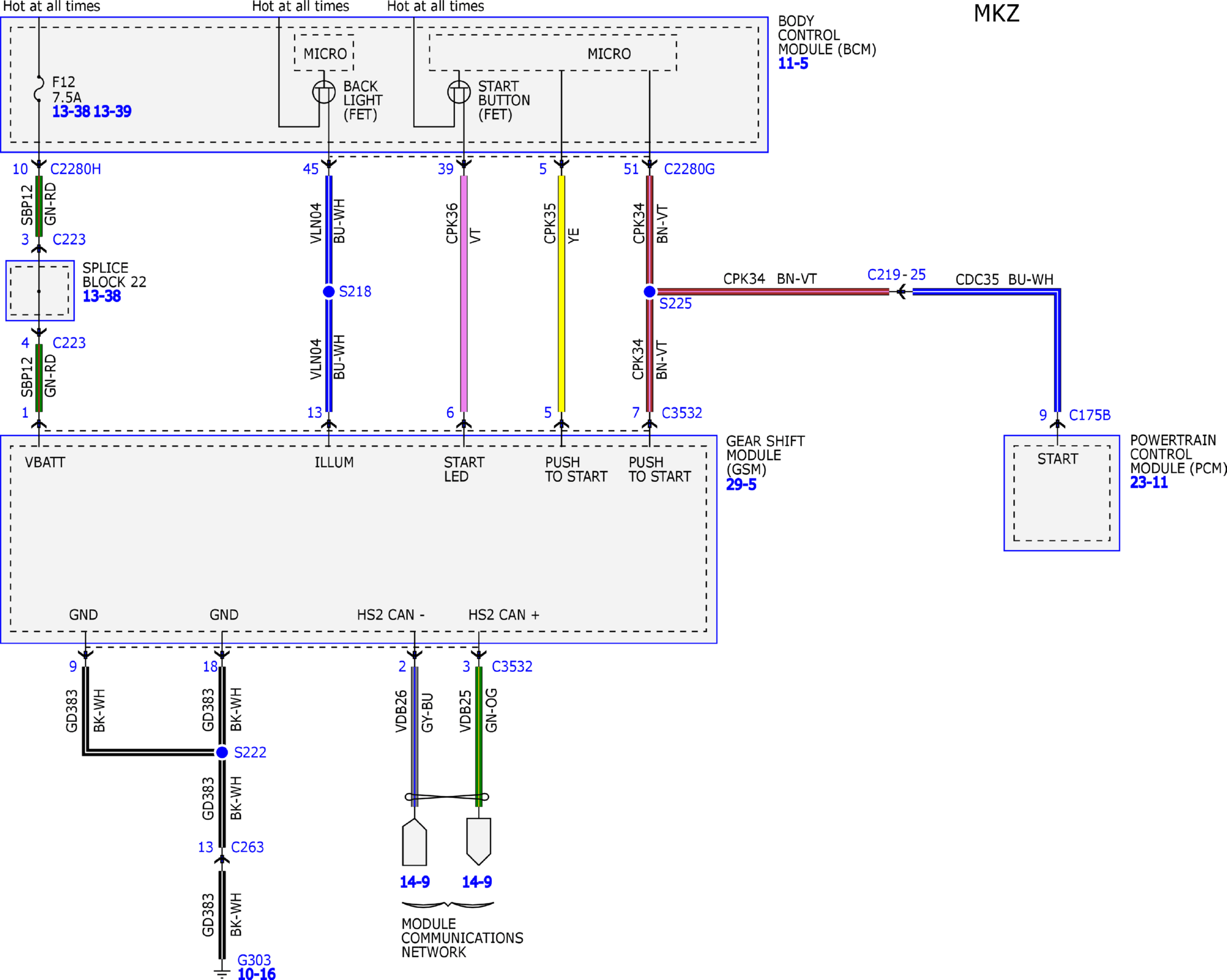

Fig 1: Starting System Wiring Diagram (1 of 3)
Courtesy of FORD MOTOR COMPANY

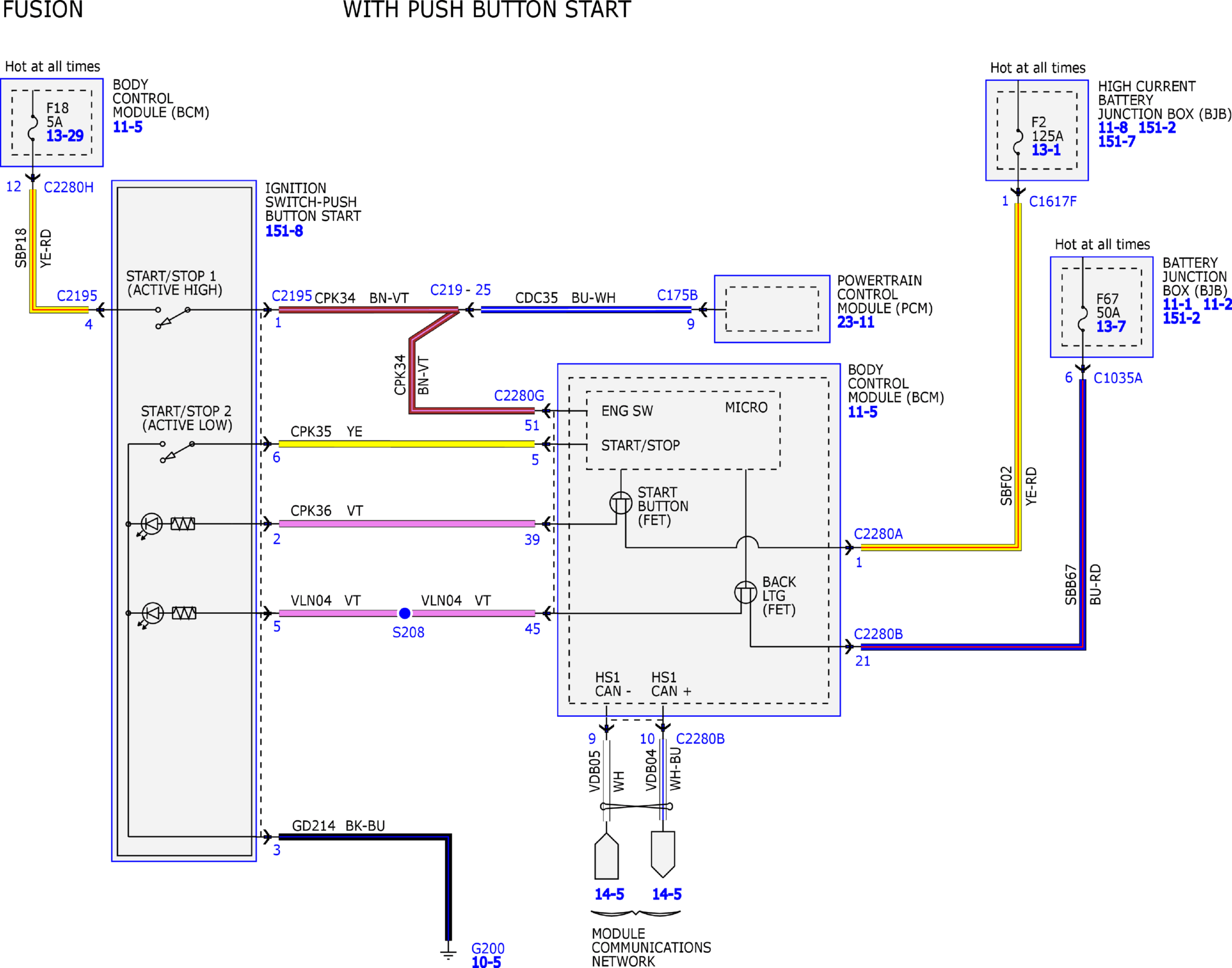

Fig 2: Starting System Wiring Diagram (2 of 3)
Courtesy of FORD MOTOR COMPANY

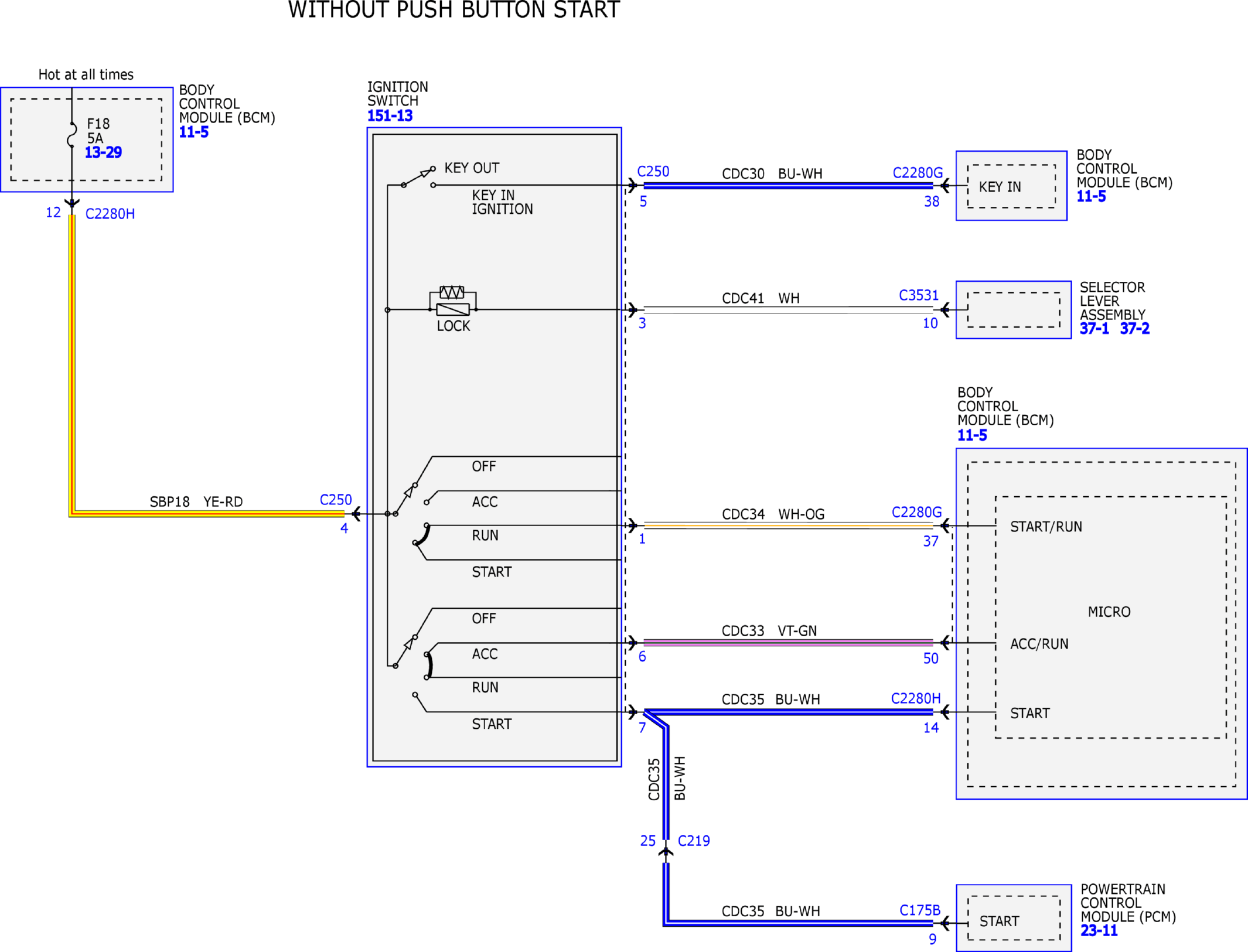

Fig 3: Starting System Wiring Diagram (3 of 3)
Courtesy of FORD MOTOR COMPANY
