Power Seats

WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

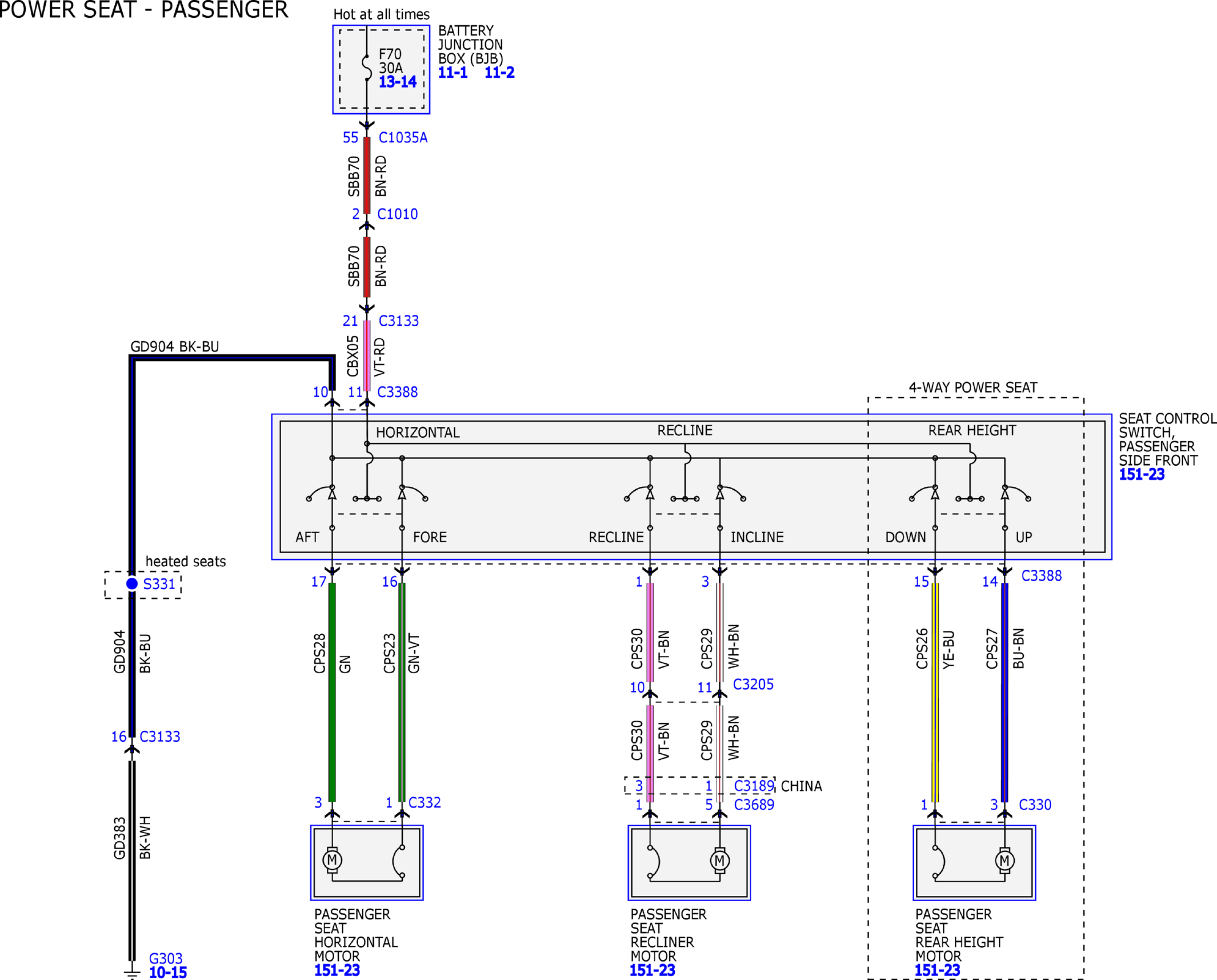

Fig 1: Power Seats Wiring Diagram (1 of 4)

Courtesy of FORD MOTOR COMPANY

Fig 2: Power Seats Wiring Diagram (2 of 4)

Courtesy of FORD MOTOR COMPANY

Fig 3: Power Seats Wiring Diagram (3 of 4)

Courtesy of FORD MOTOR COMPANY

Fig 4: Power Seats Wiring Diagram (4 of 4)

Courtesy of FORD MOTOR COMPANY
