WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

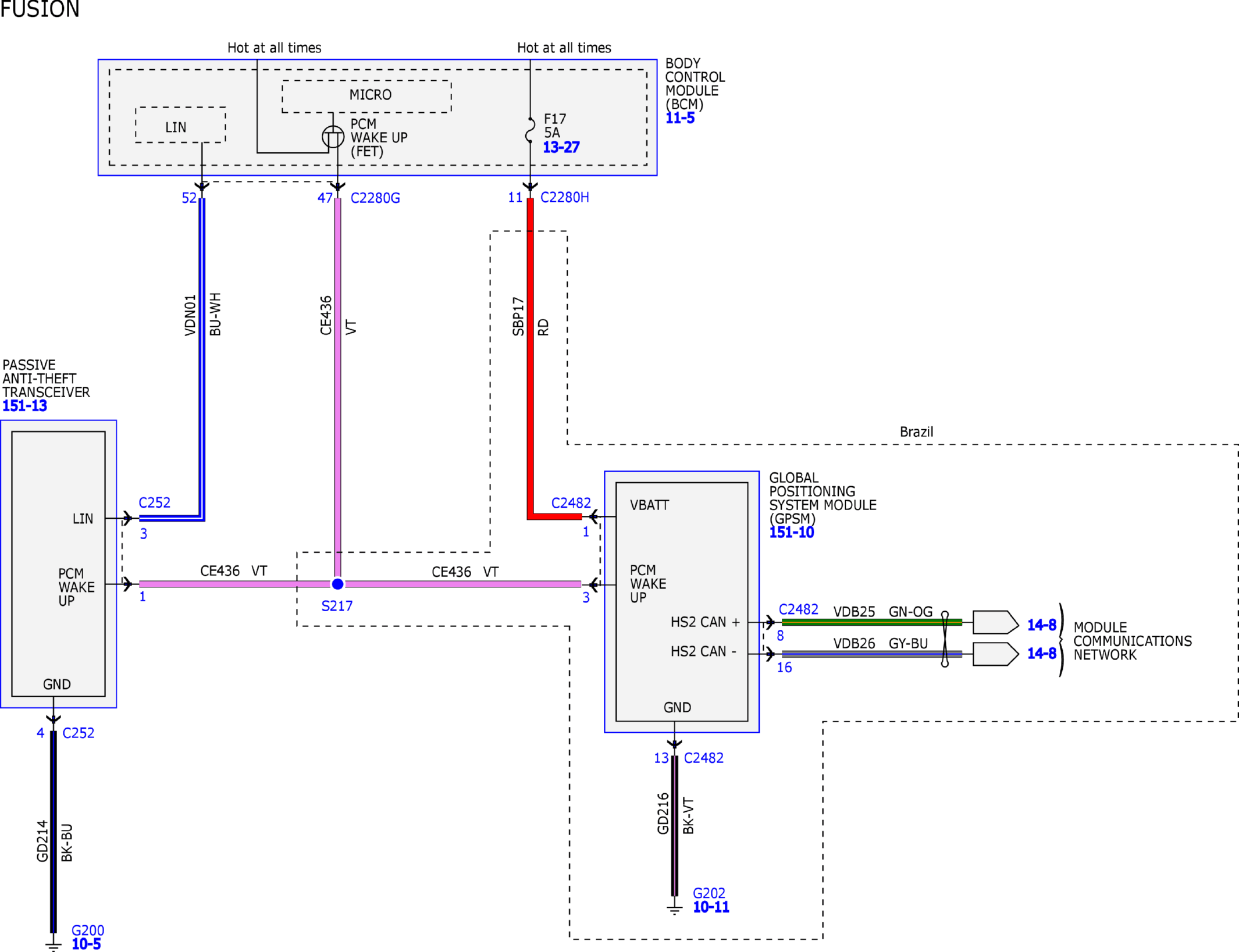

Fig 1: Passive Anti-Theft System Wiring Diagram (1 of 2)
Courtesy of FORD MOTOR COMPANY
Fig 2: Passive Anti-Theft System Wiring Diagram (2 of 2)
