WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

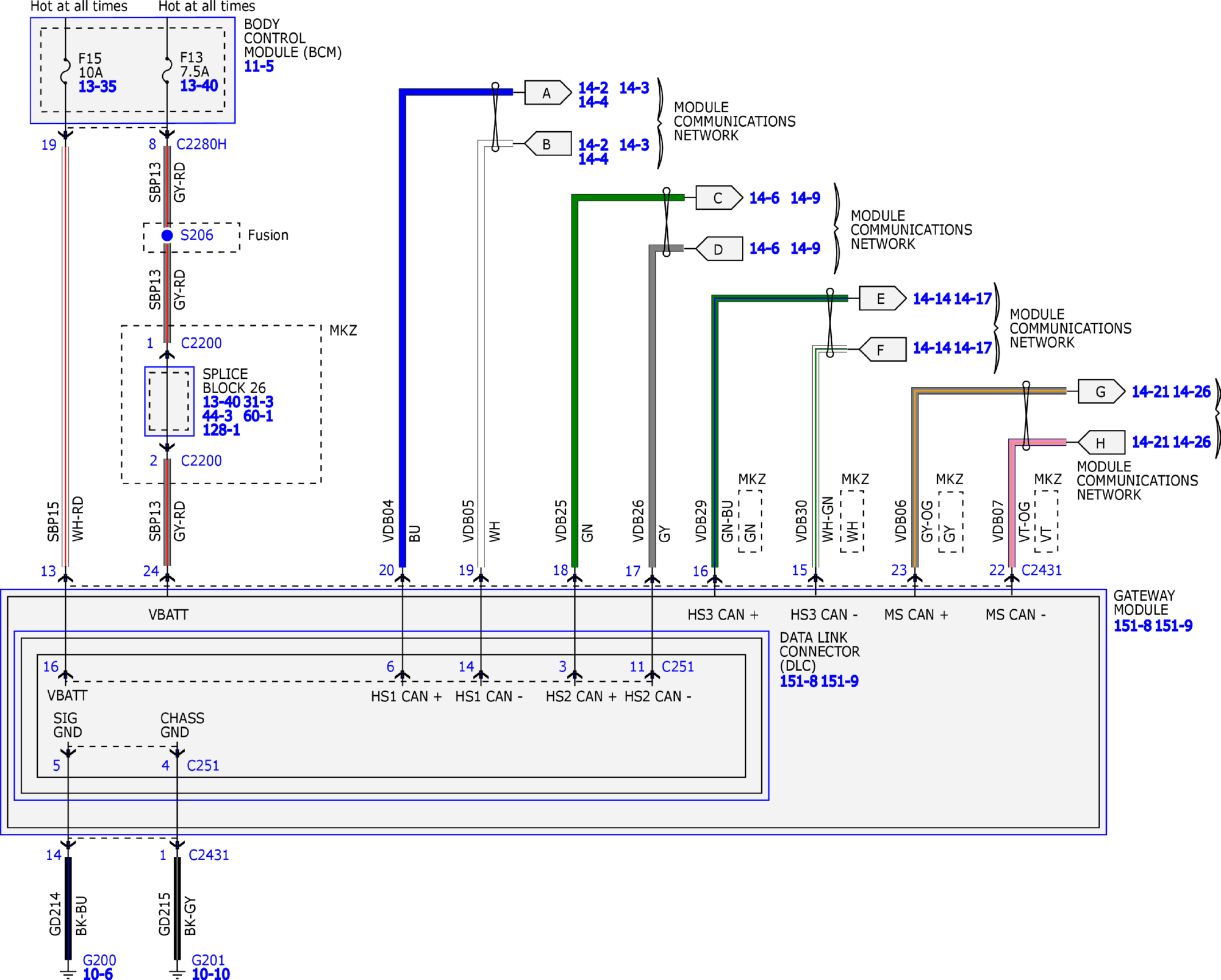

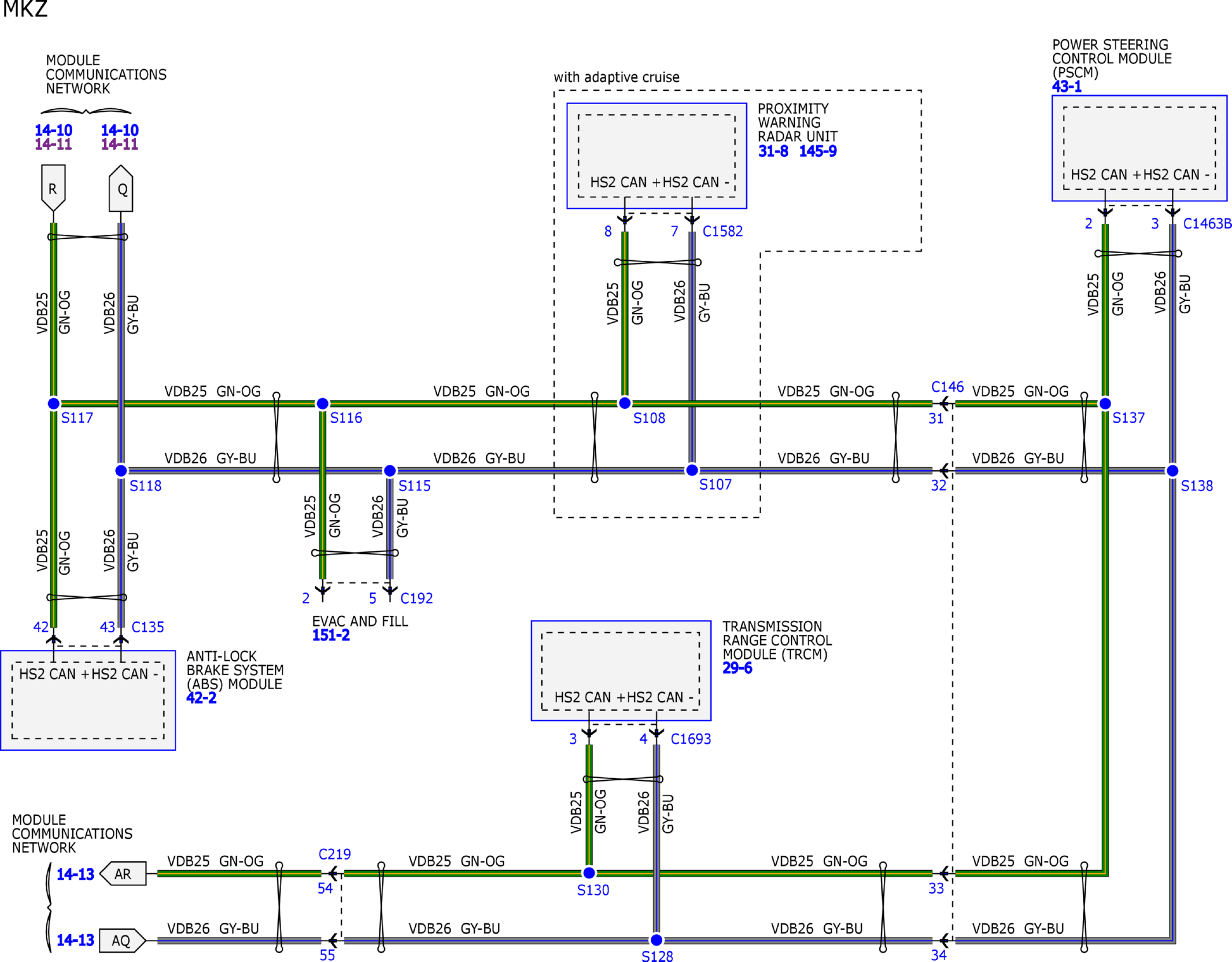

Fig 1: Module Communications Network Wiring Diagram (1 of 30)
Courtesy of FORD MOTOR COMPANY

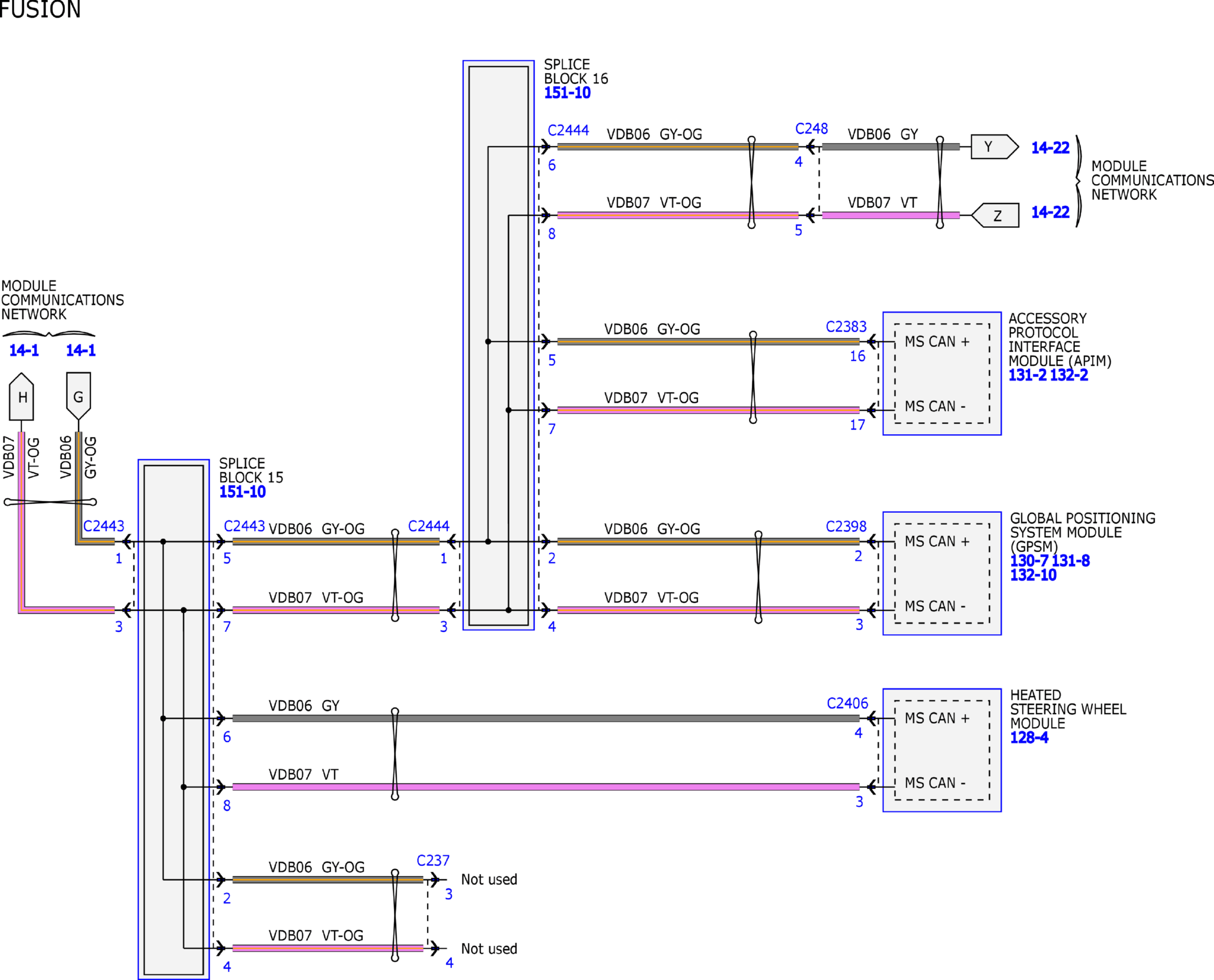

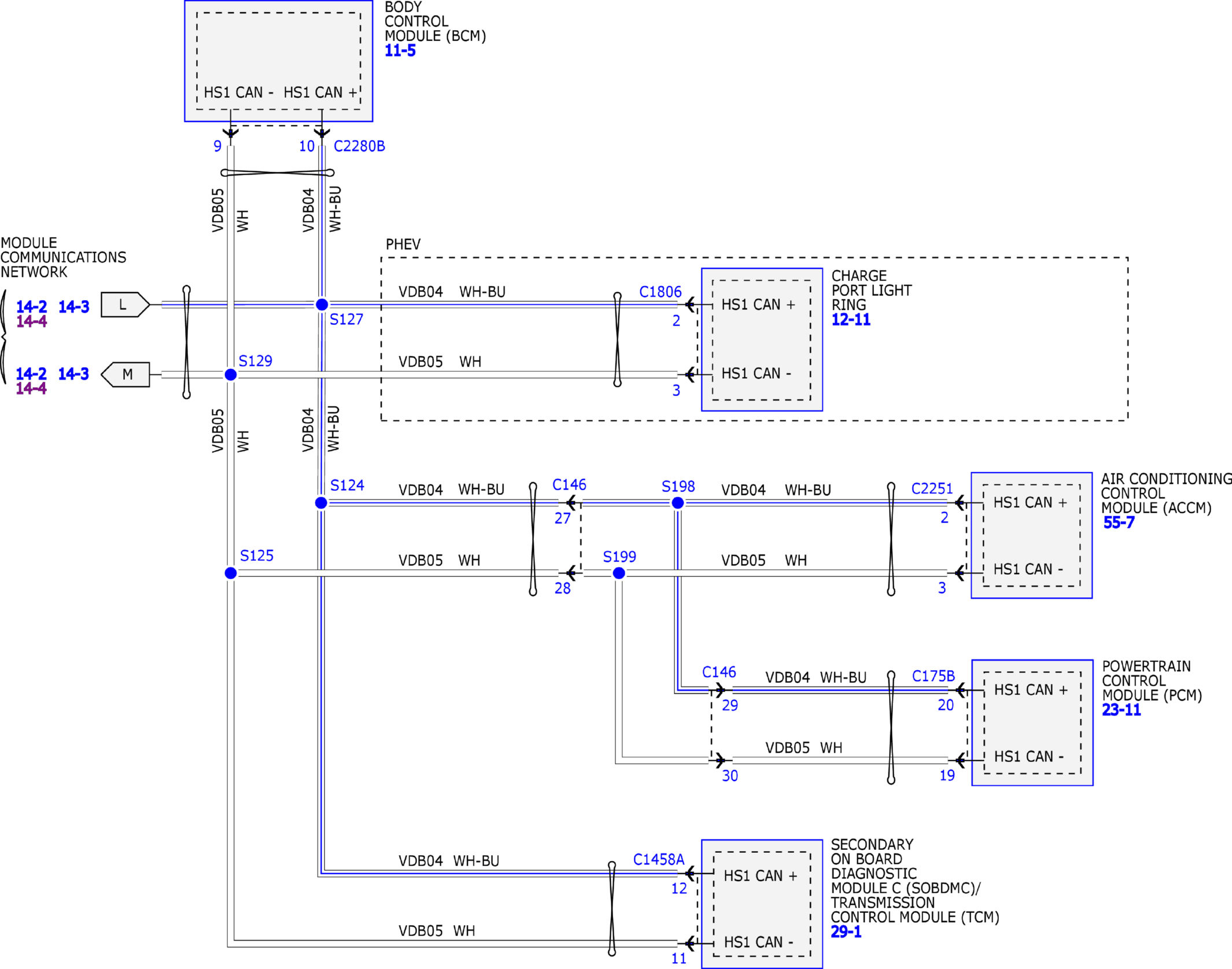

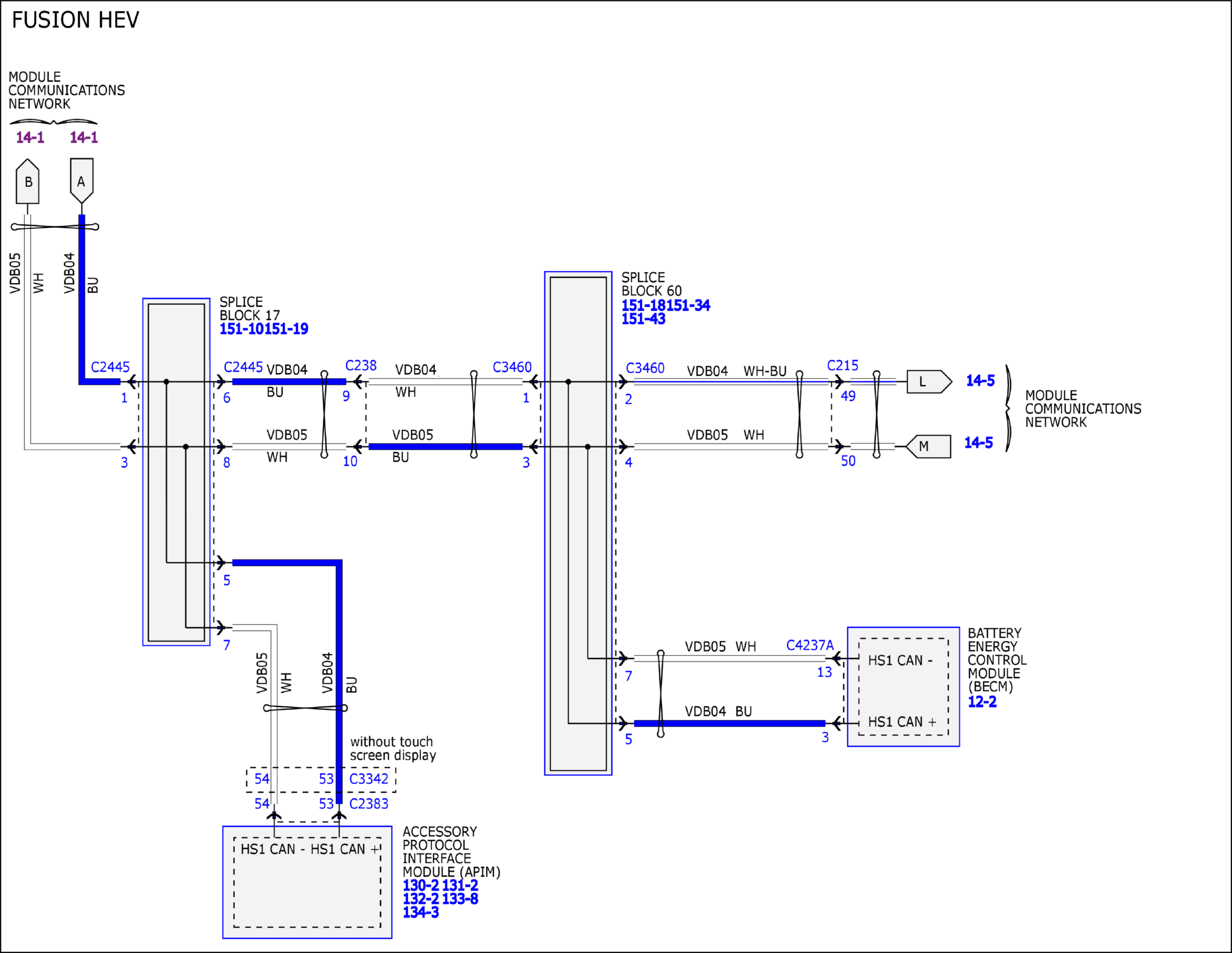

Fig 2: Module Communications Network Wiring Diagram (2 of 30)
Courtesy of FORD MOTOR COMPANY

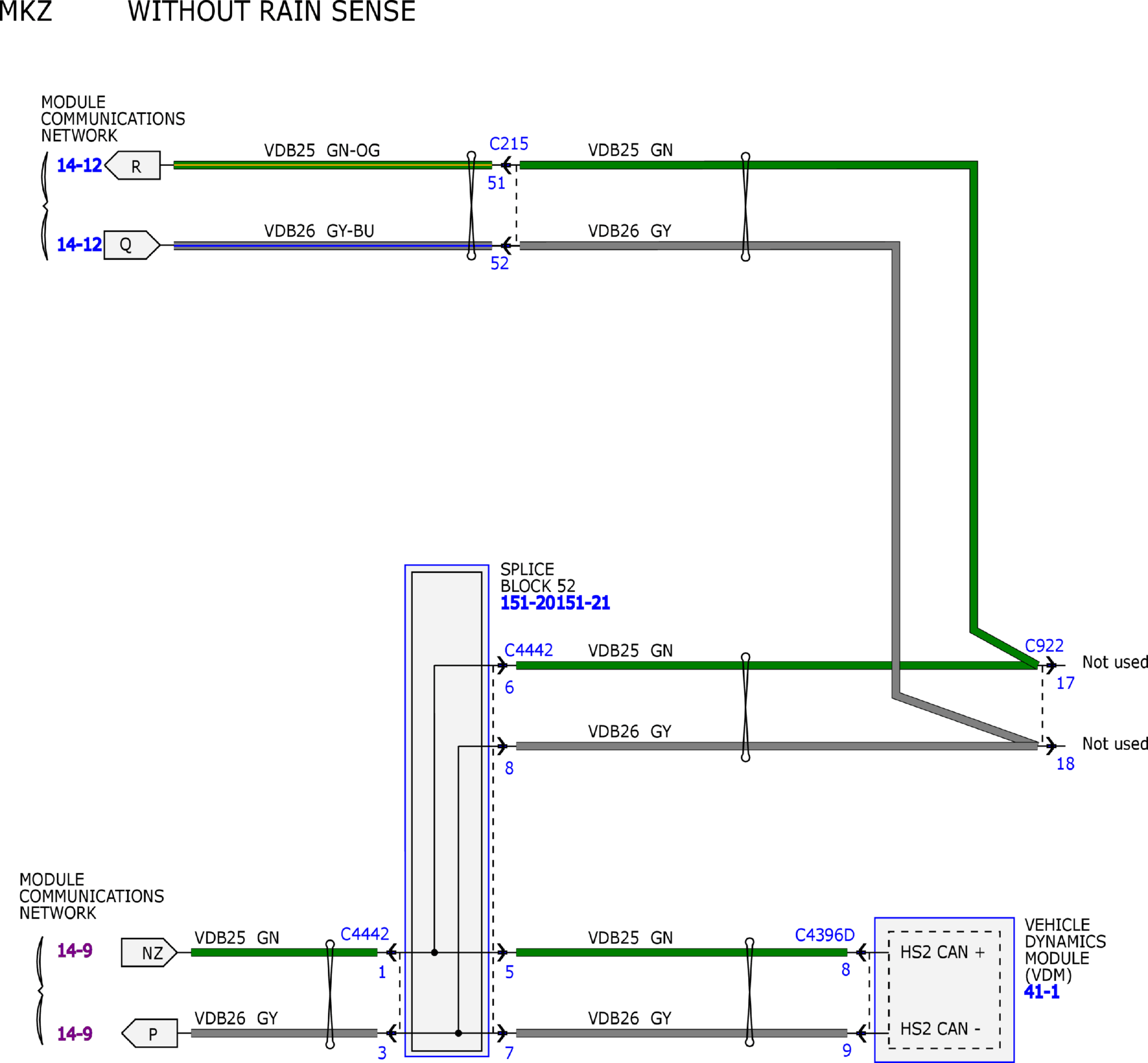

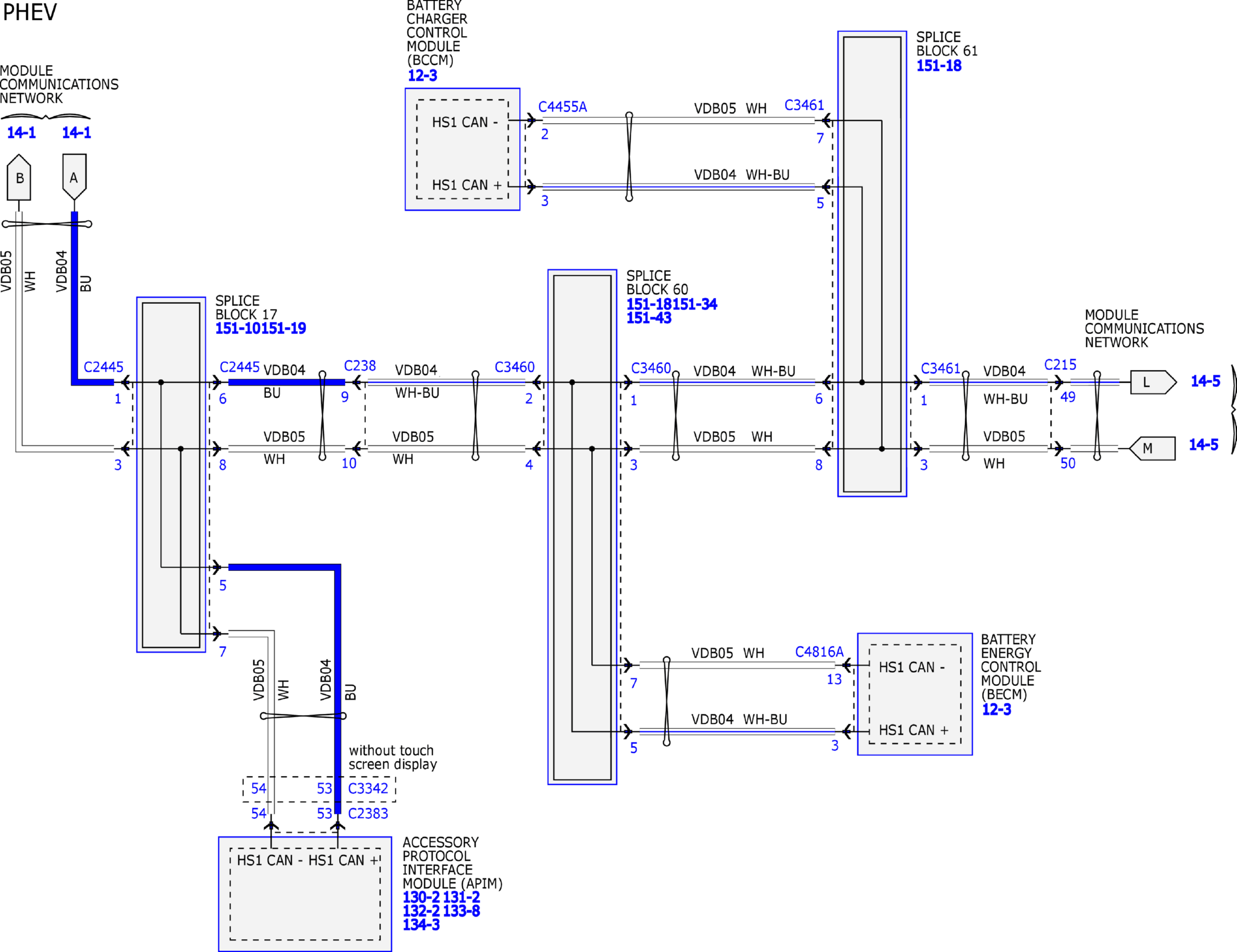

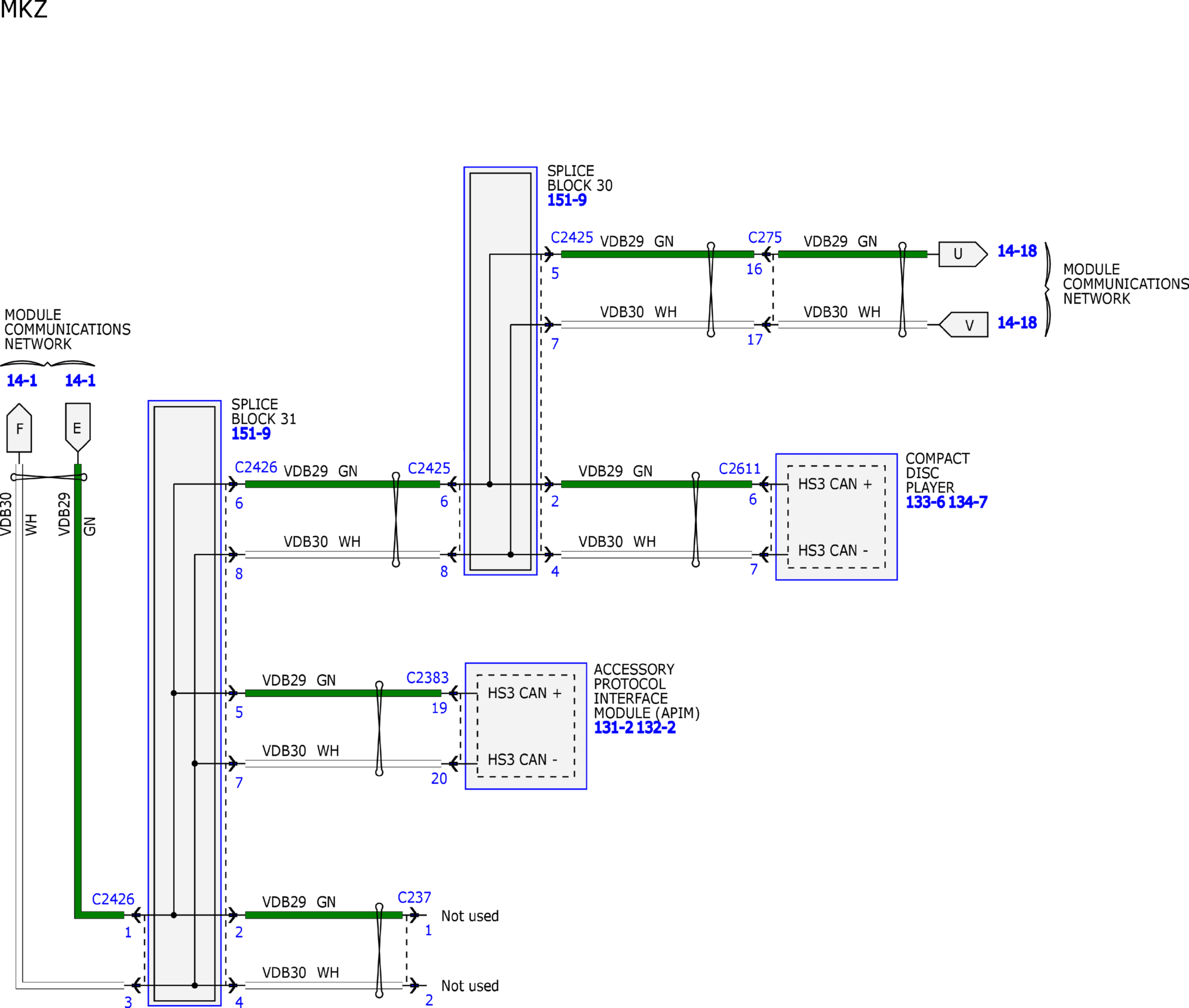

Fig 3: Module Communications Network Wiring Diagram (3 of 30)
Courtesy of FORD MOTOR COMPANY

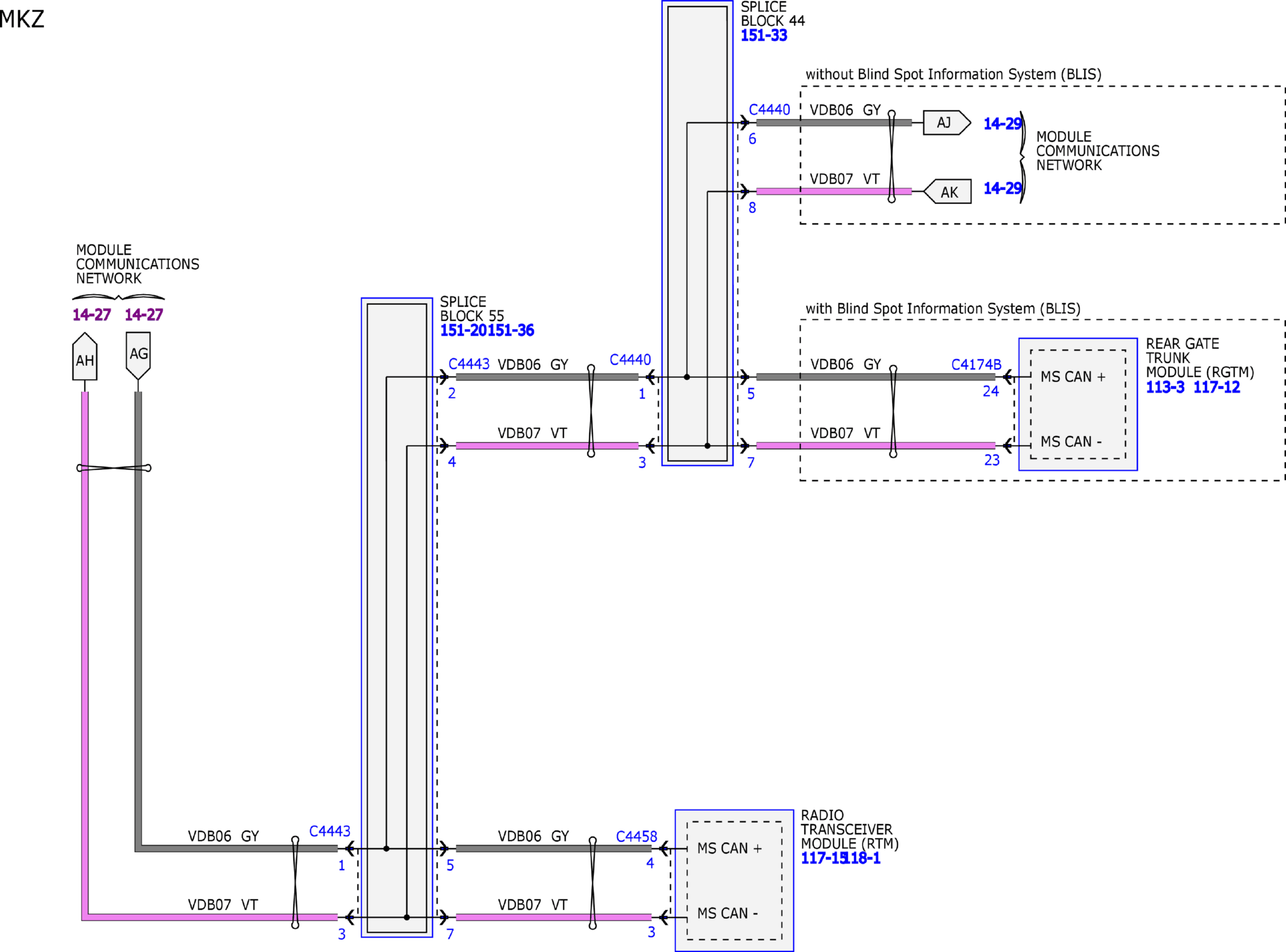

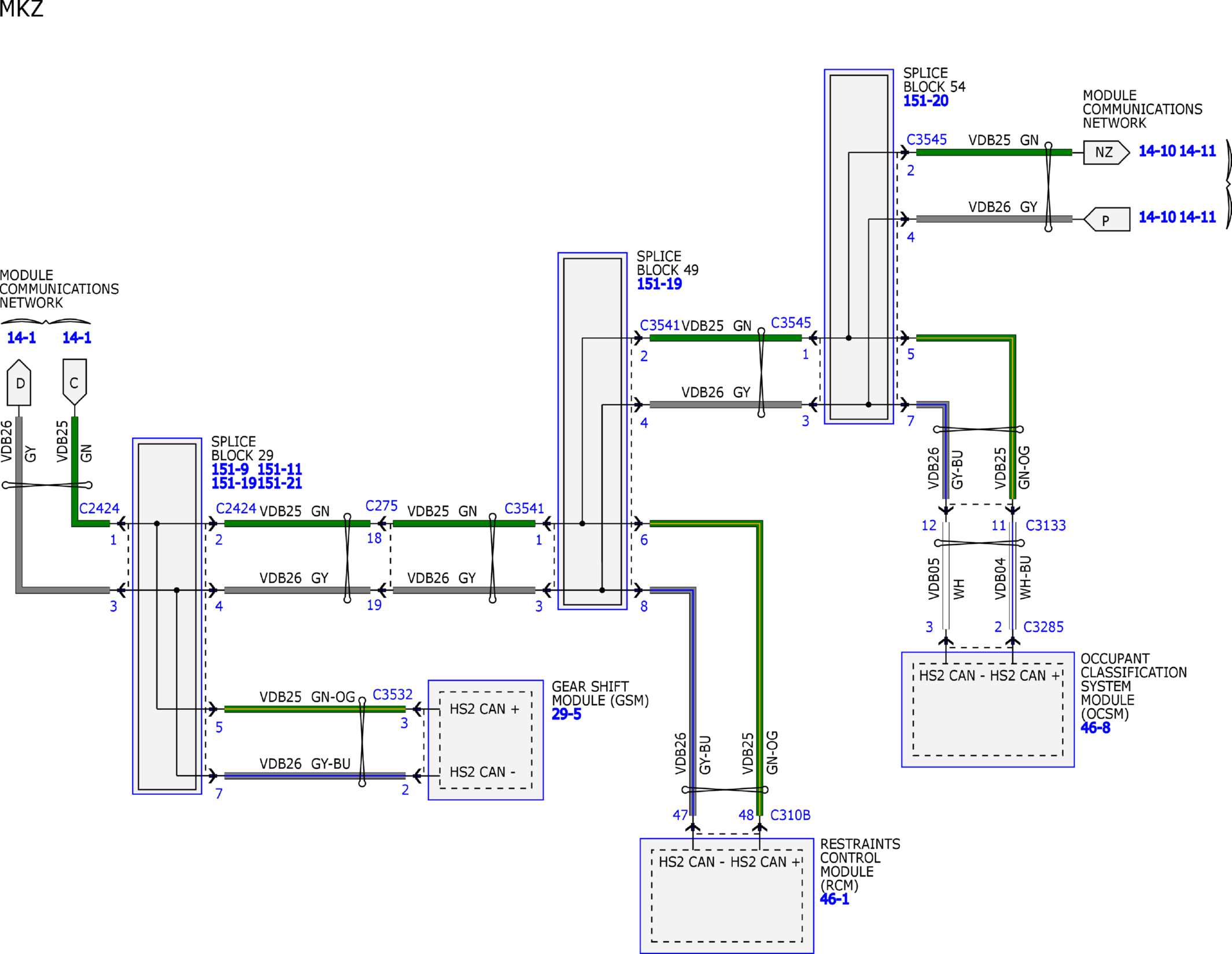

Fig 4: Module Communications Network Wiring Diagram (4 of 30)
Courtesy of FORD MOTOR COMPANY

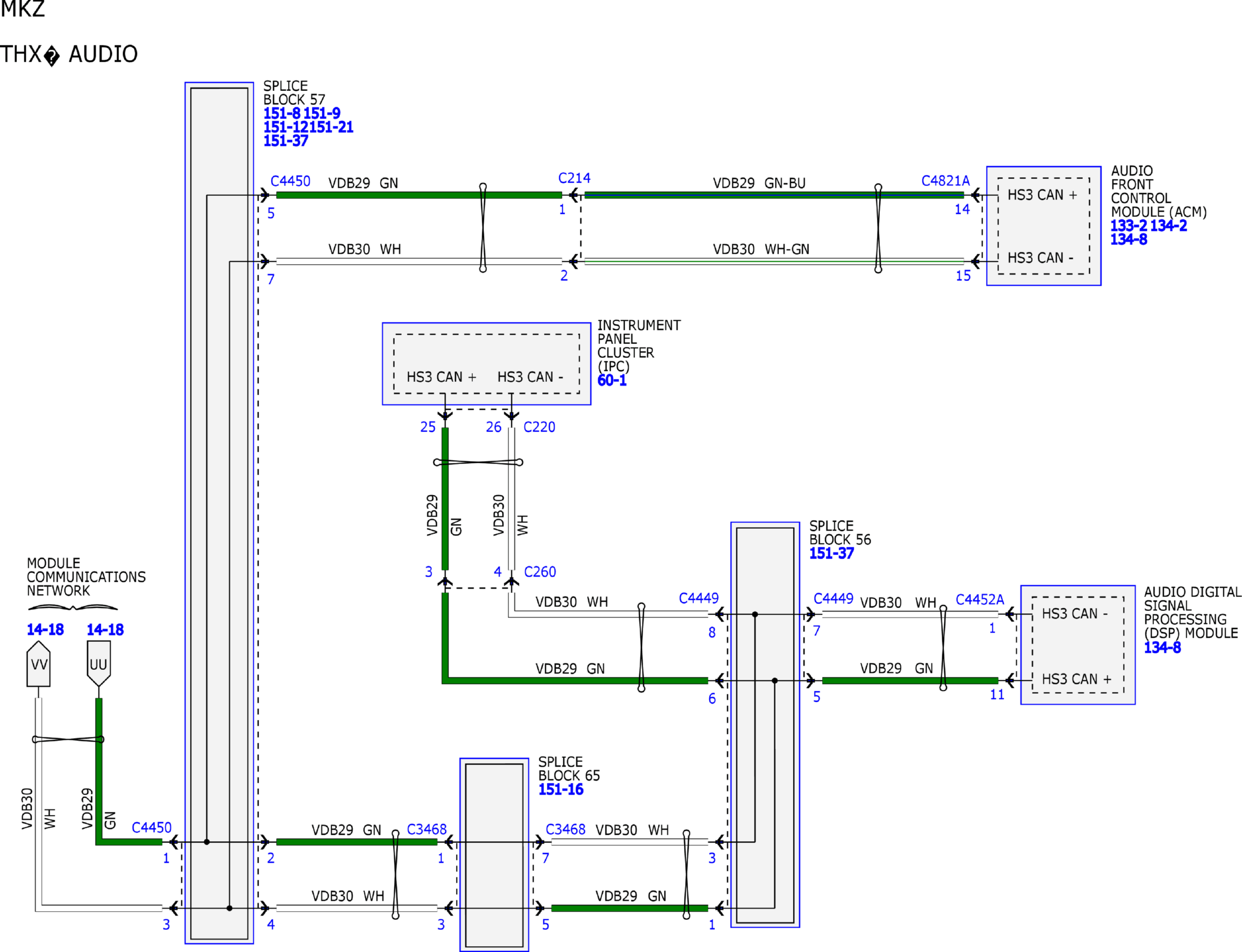

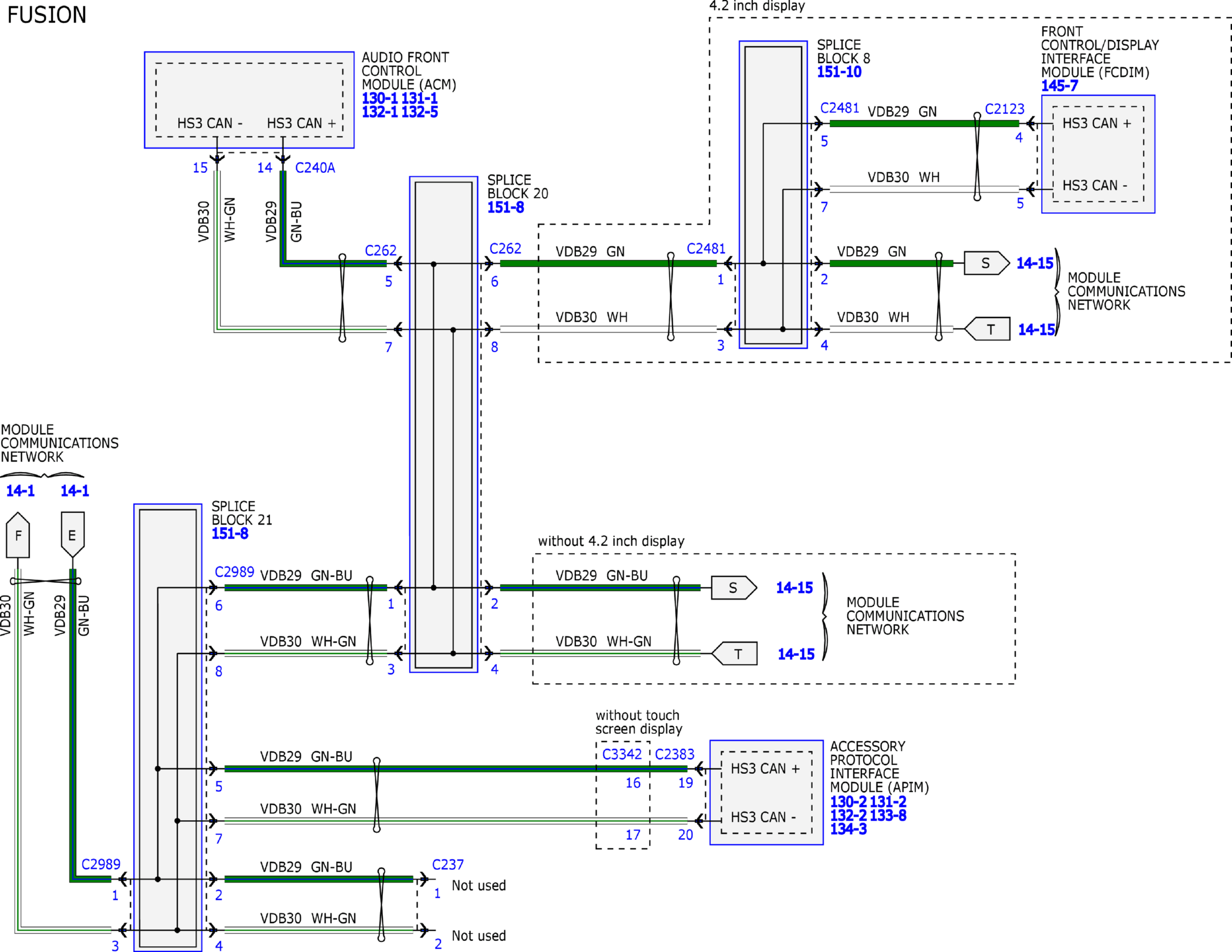

Fig 5: Module Communications Network Wiring Diagram (5 of 30)
Courtesy of FORD MOTOR COMPANY

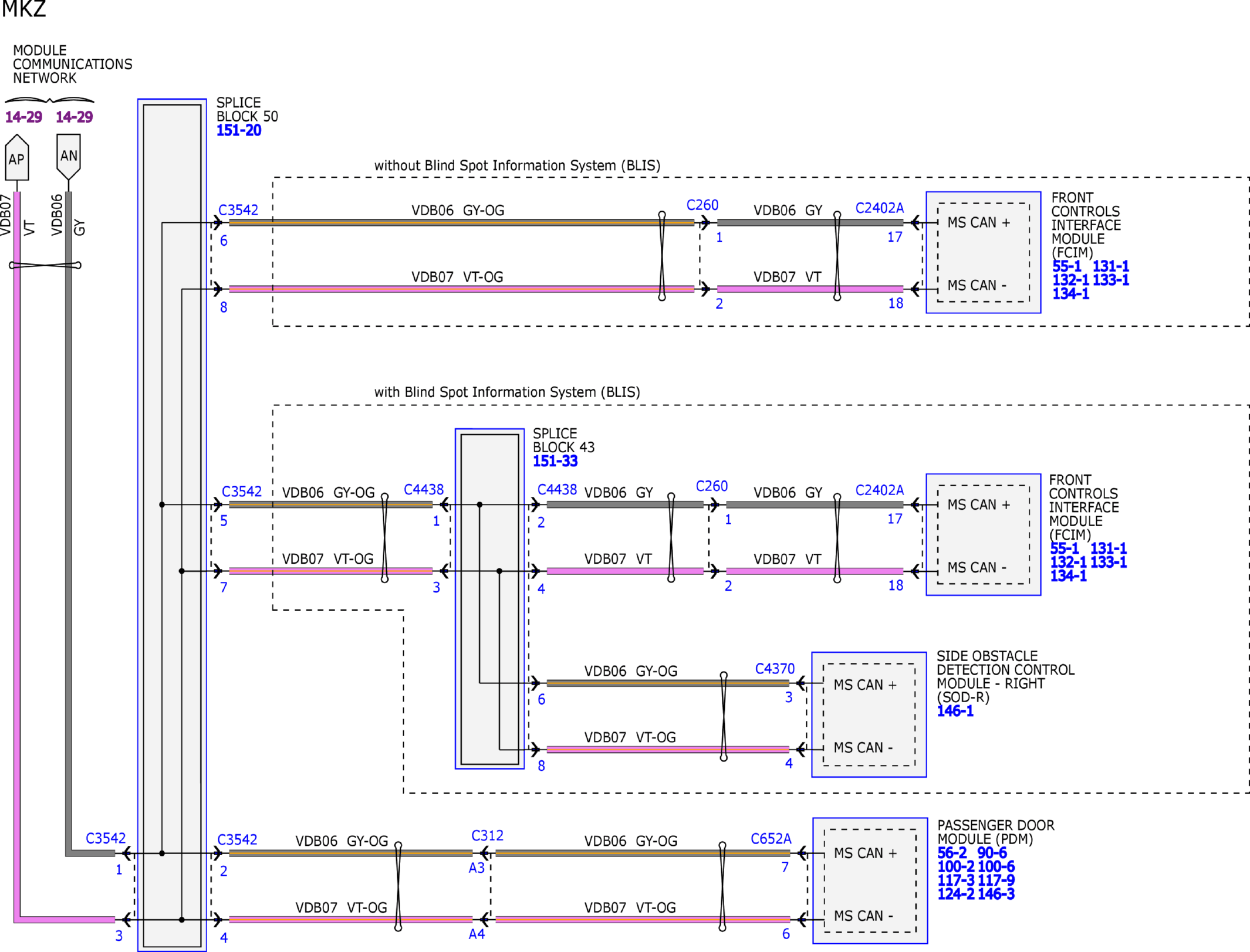

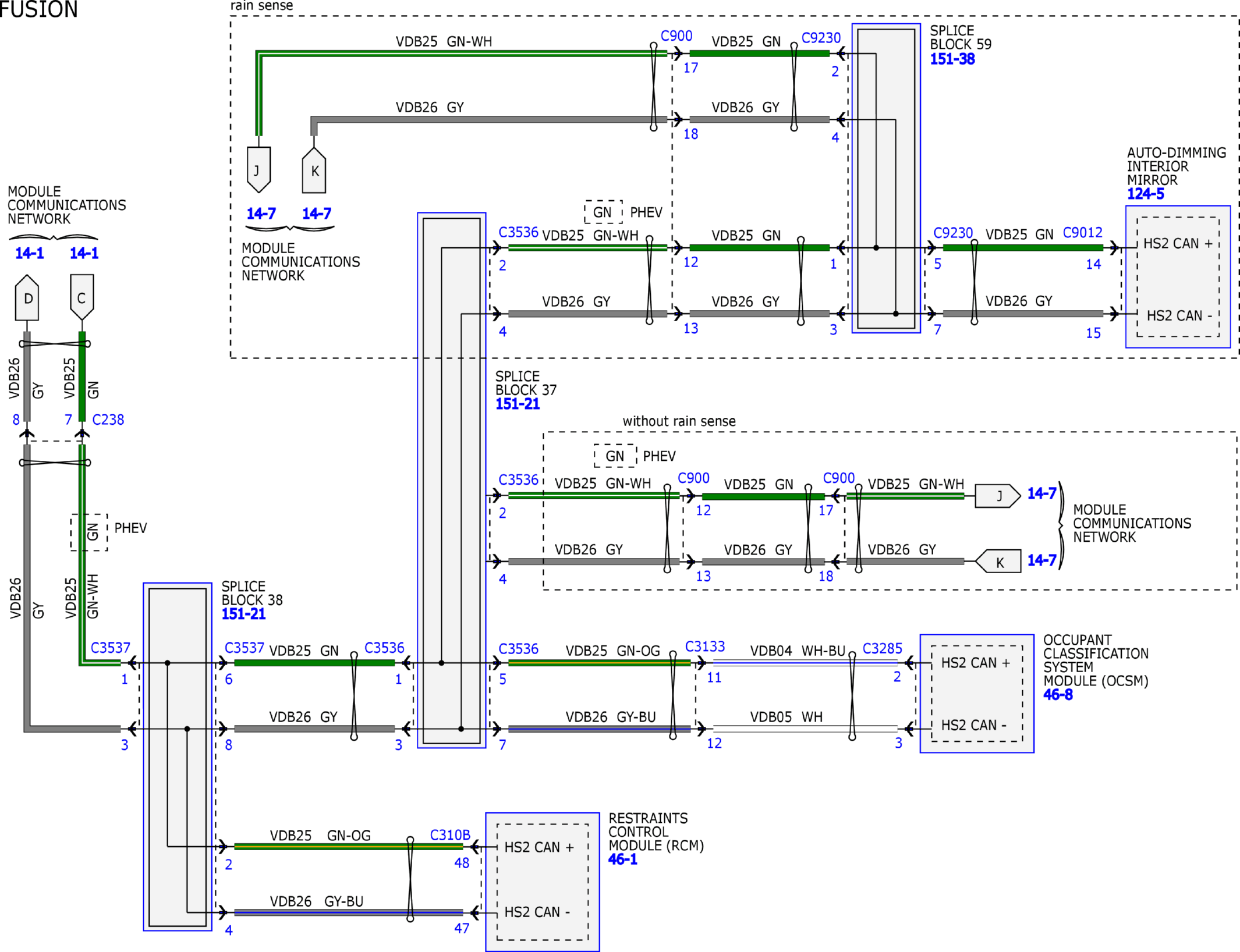

Fig 6: Module Communications Network Wiring Diagram (6 of 30)
Courtesy of FORD MOTOR COMPANY

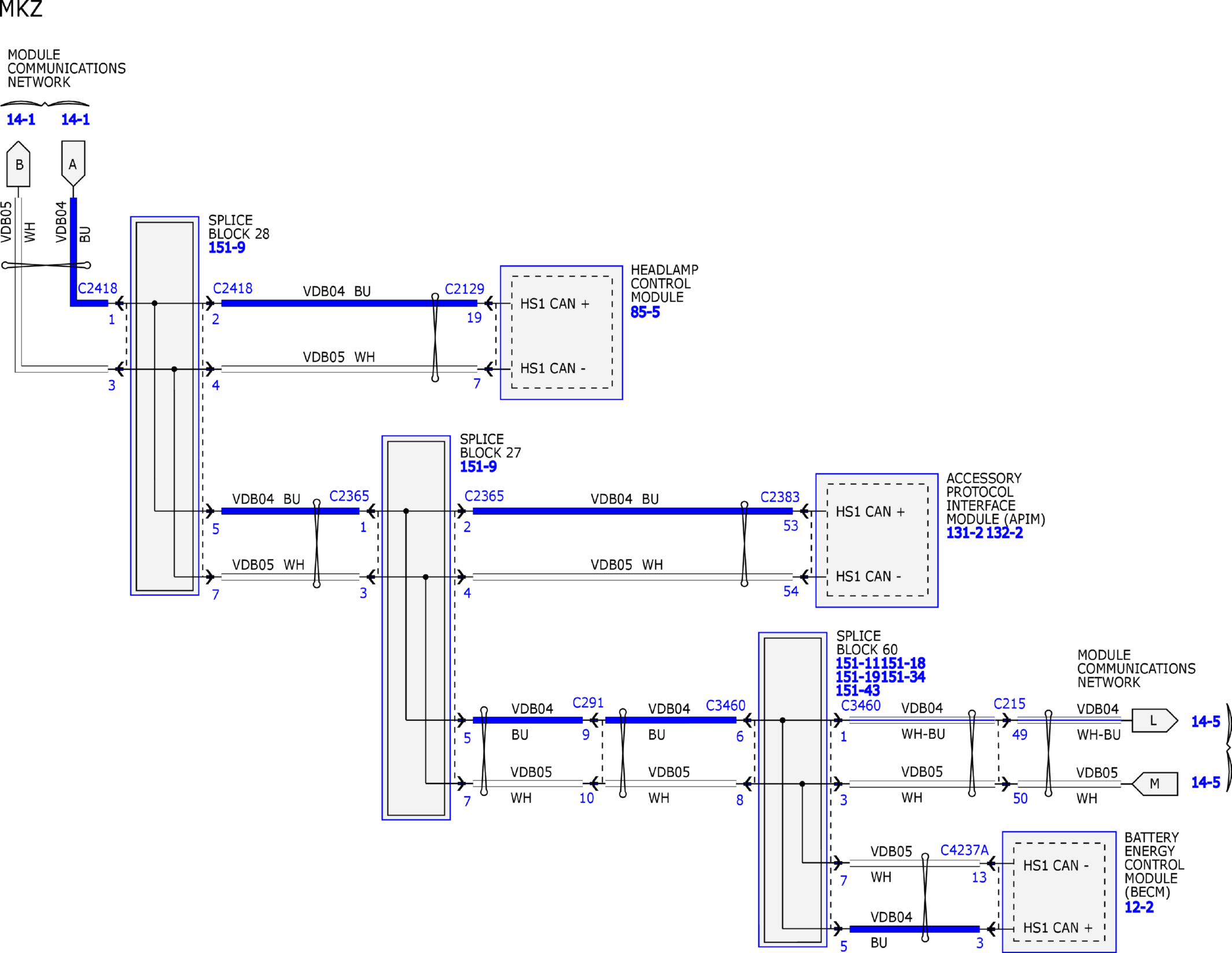

Fig 7: Module Communications Network Wiring Diagram (7 of 30)
Courtesy of FORD MOTOR COMPANY

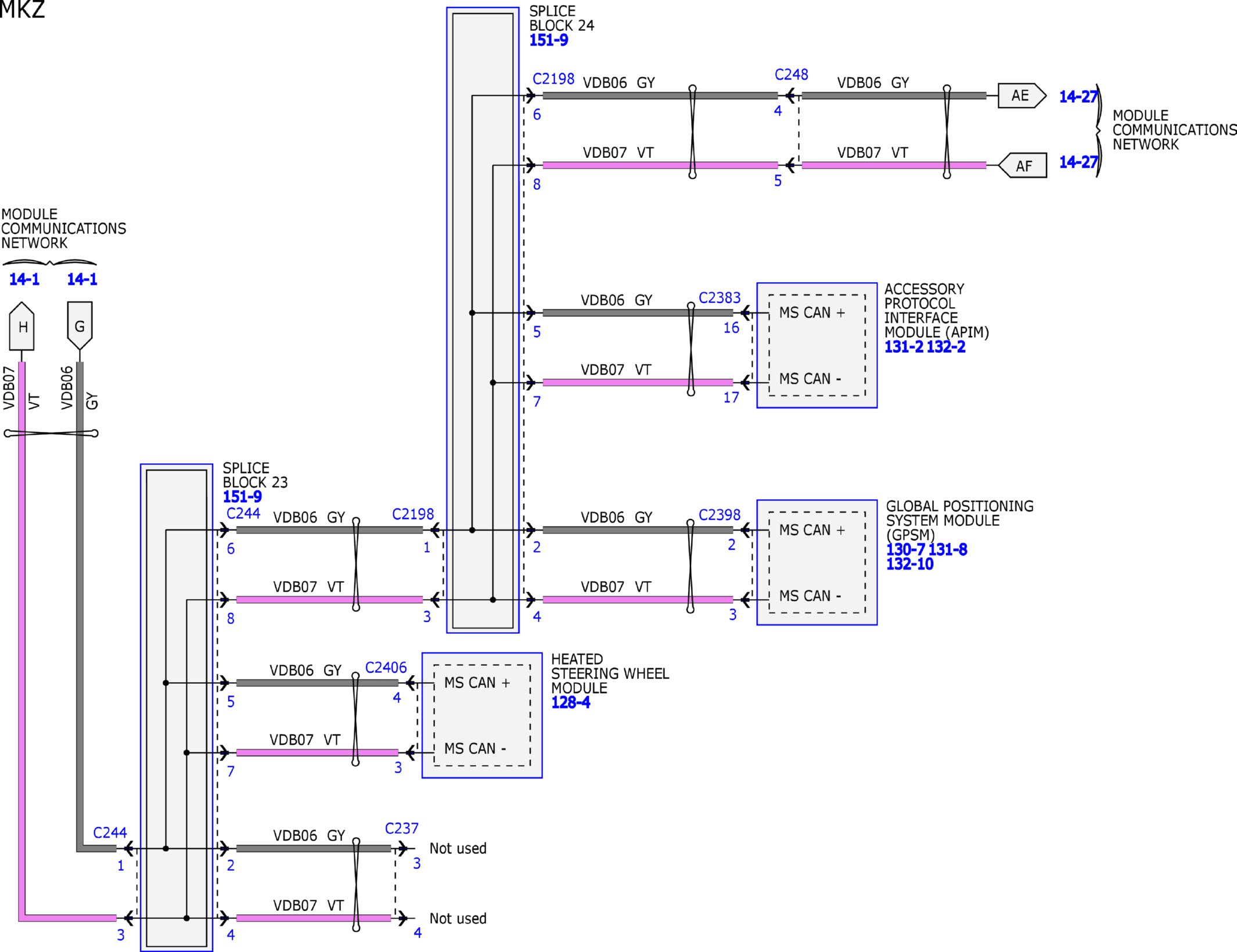

Fig 8: Module Communications Network Wiring Diagram (8 of 30)
Courtesy of FORD MOTOR COMPANY

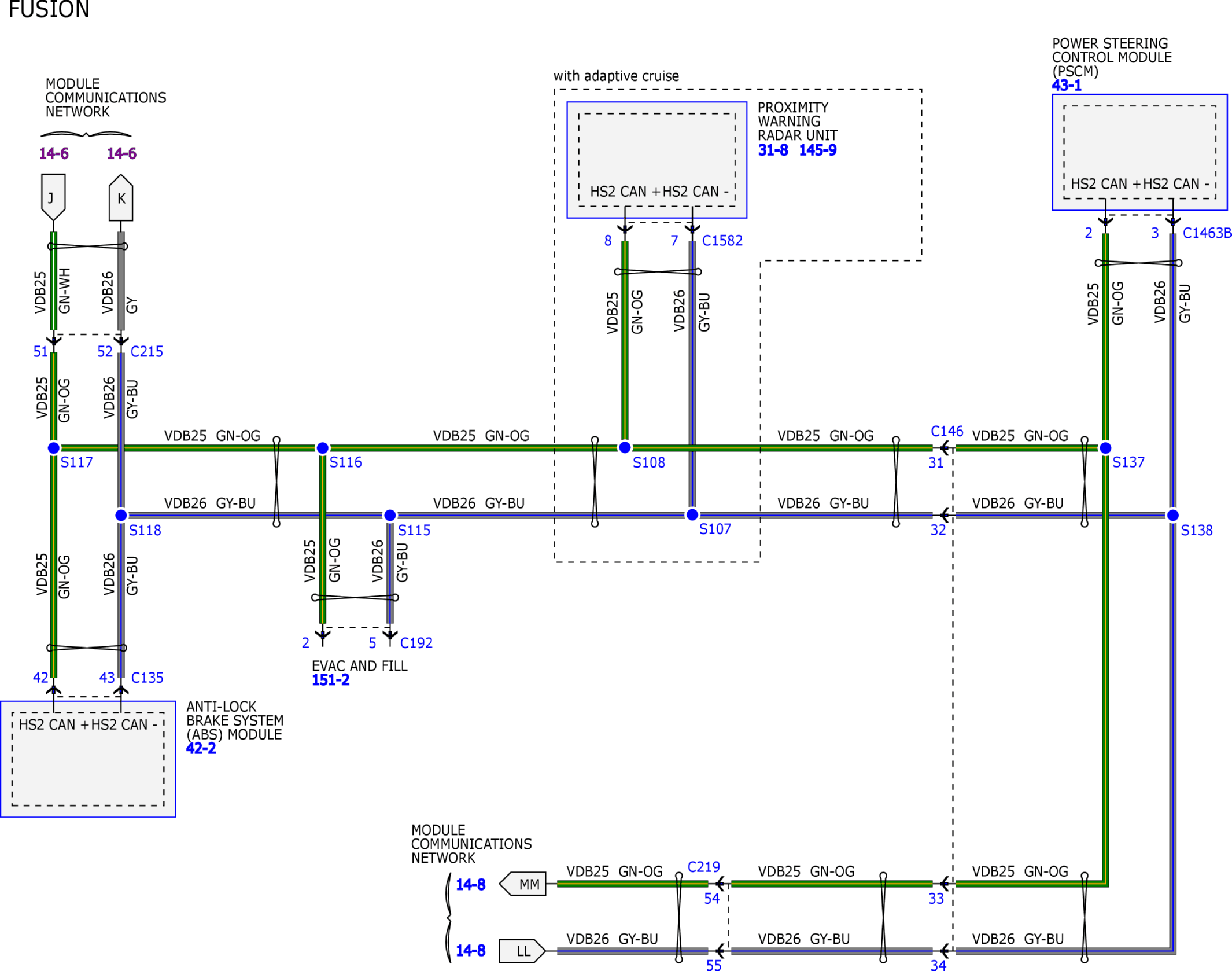

Fig 9: Module Communications Network Wiring Diagram (9 of 30)
Courtesy of FORD MOTOR COMPANY

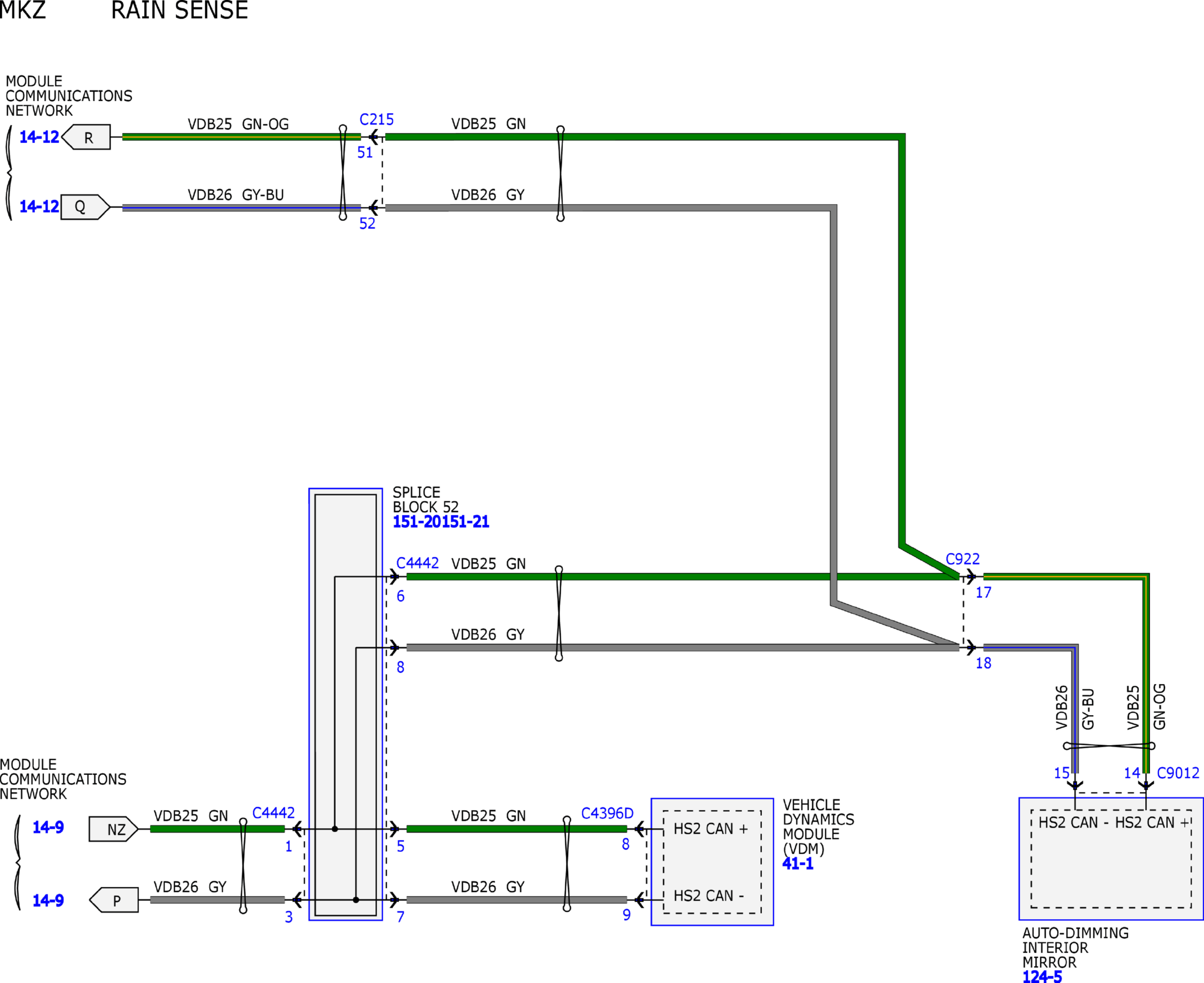

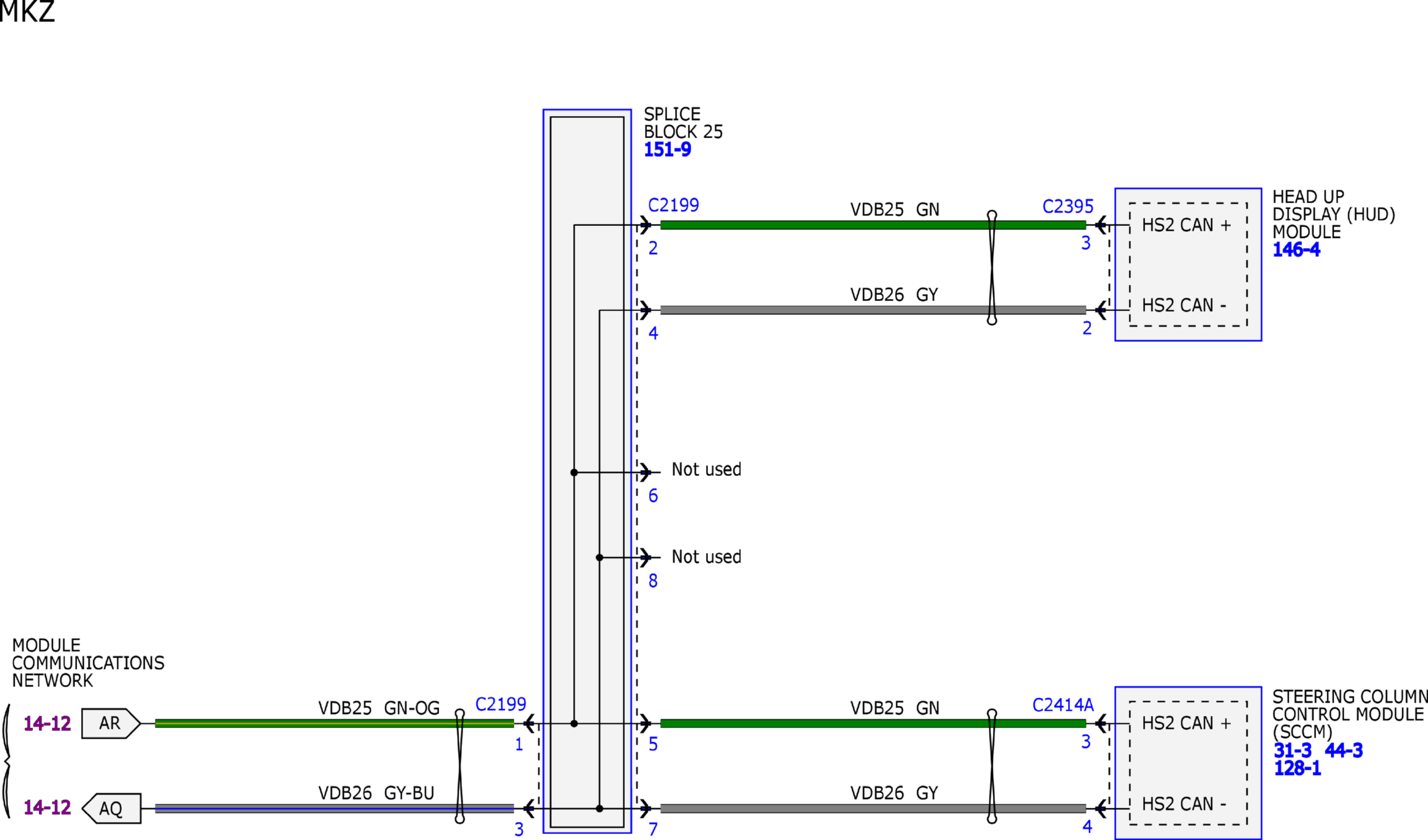

Fig 10: Module Communications Network Wiring Diagram (10 of 30)
Courtesy of FORD MOTOR COMPANY

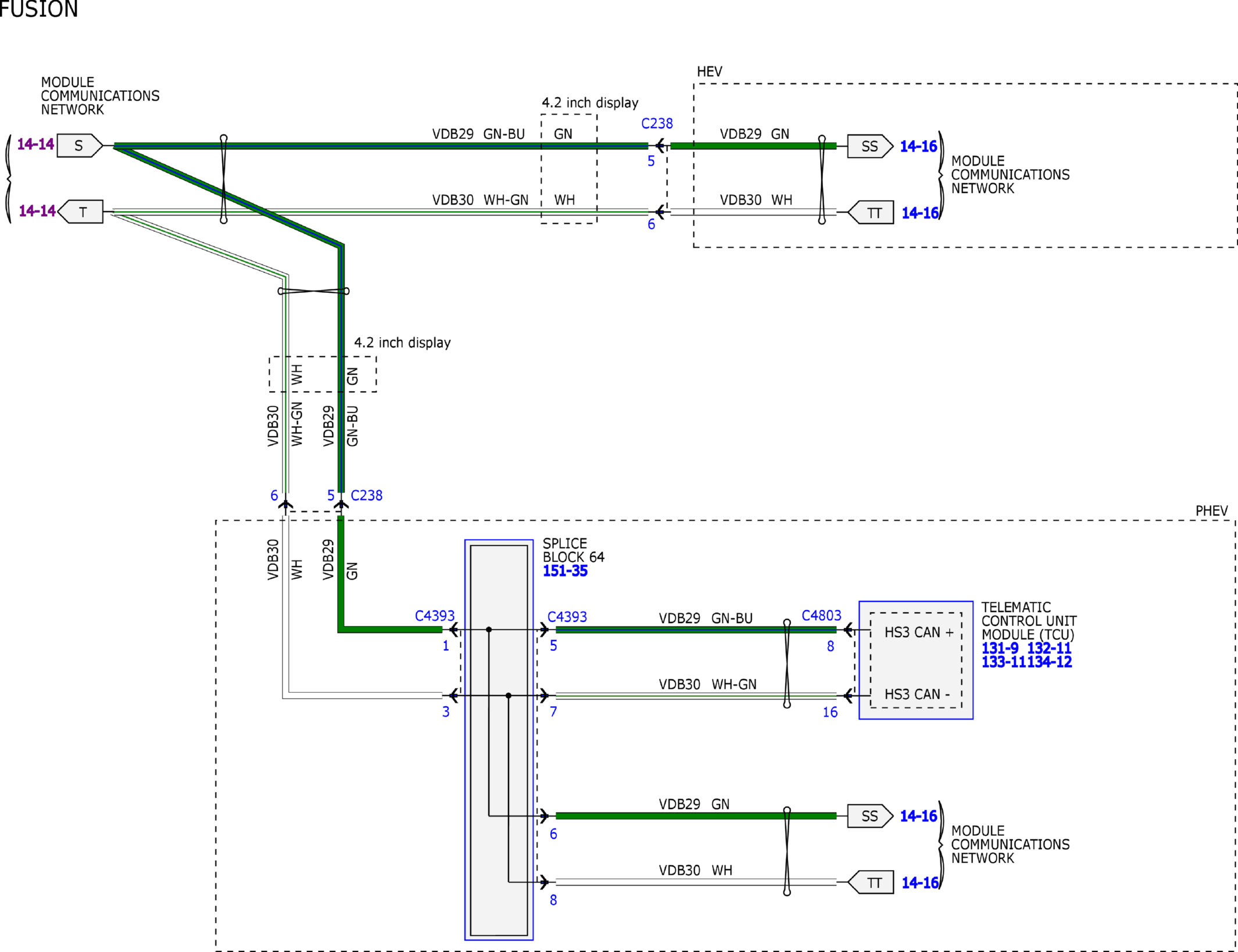

Fig 11: Module Communications Network Wiring Diagram (11 of 30)
Courtesy of FORD MOTOR COMPANY

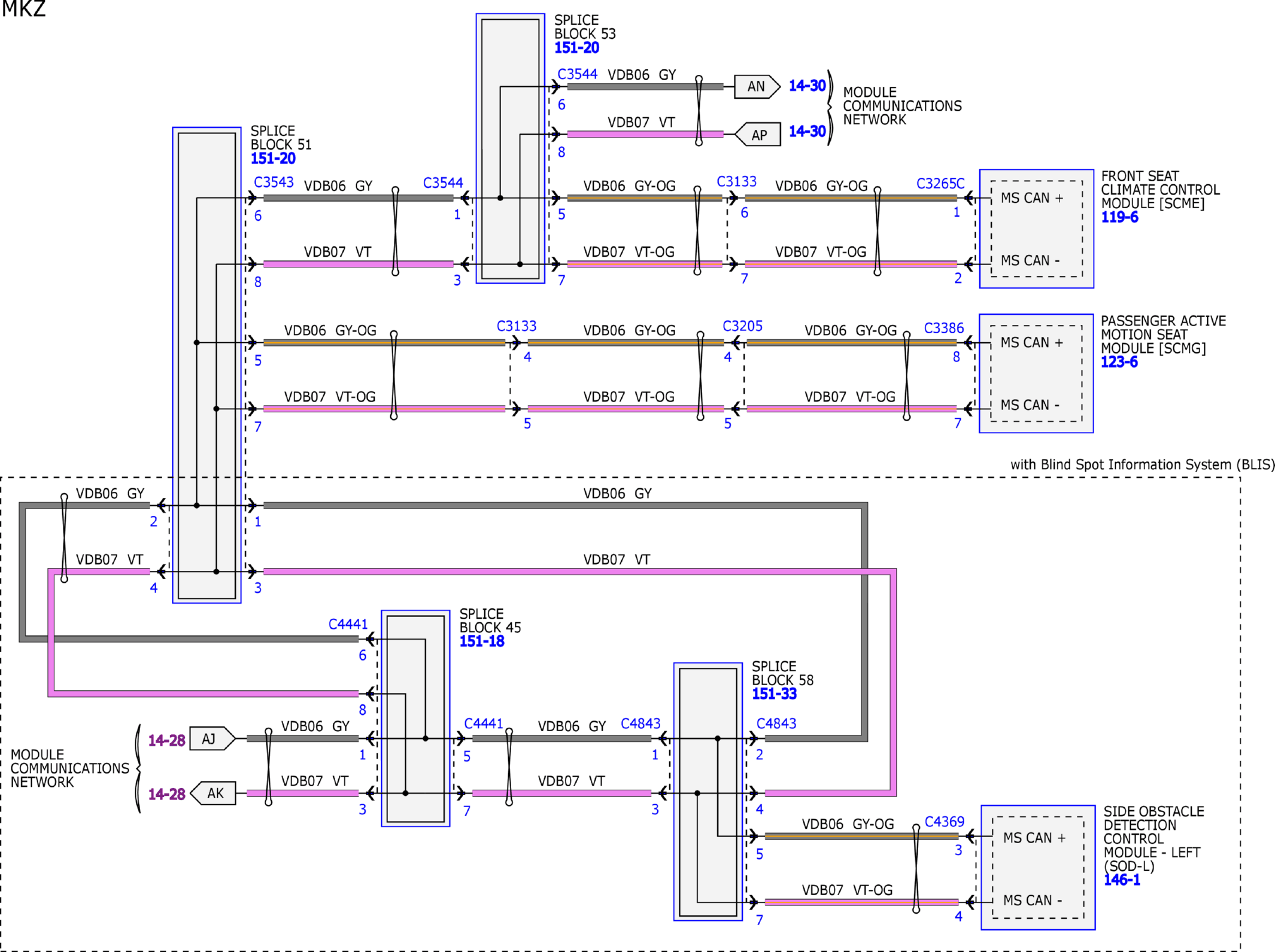

Fig 12: Module Communications Network Wiring Diagram (12 of 30)
Courtesy of FORD MOTOR COMPANY

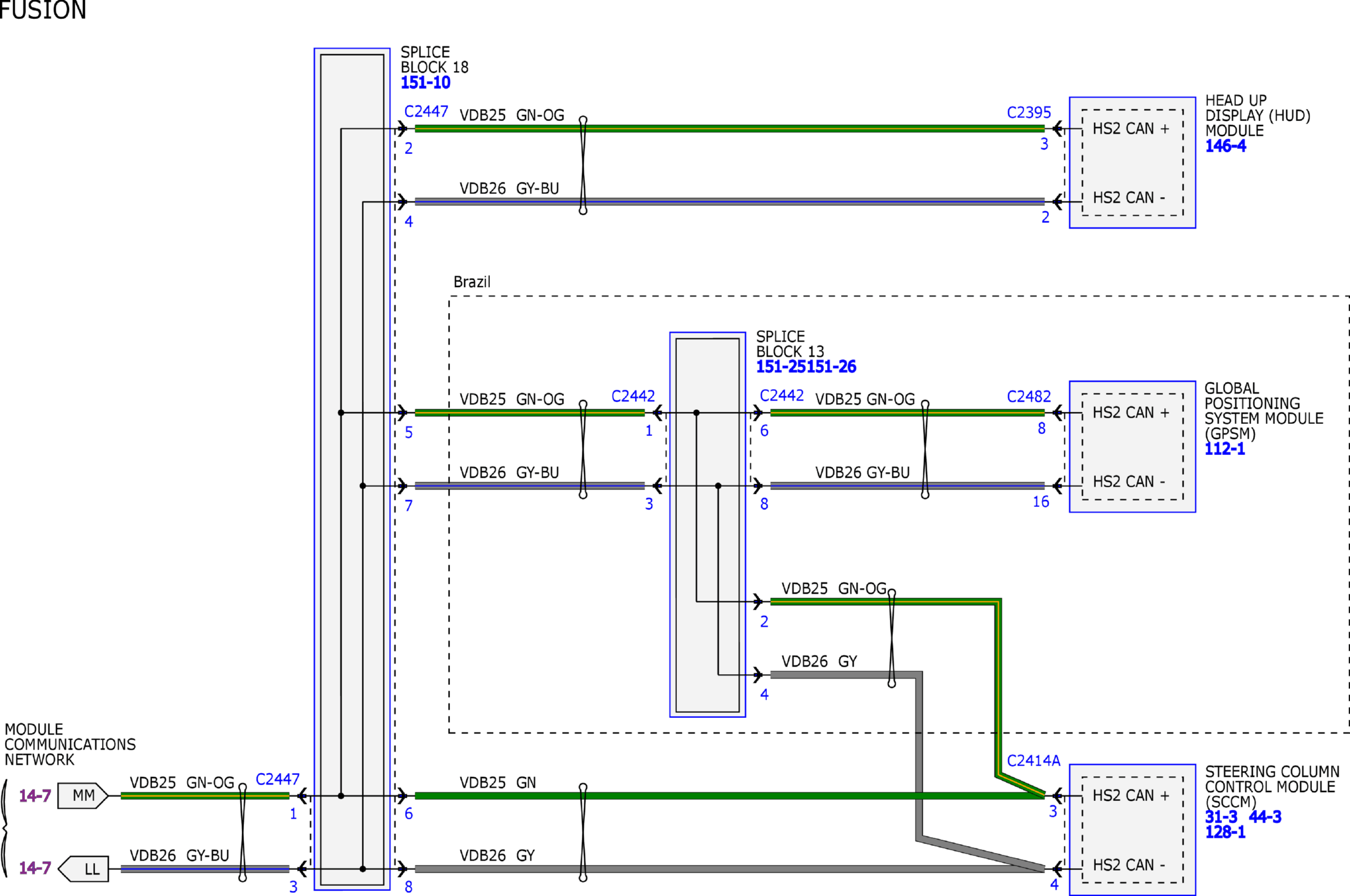

Fig 13: Module Communications Network Wiring Diagram (13 of 30)
Courtesy of FORD MOTOR COMPANY

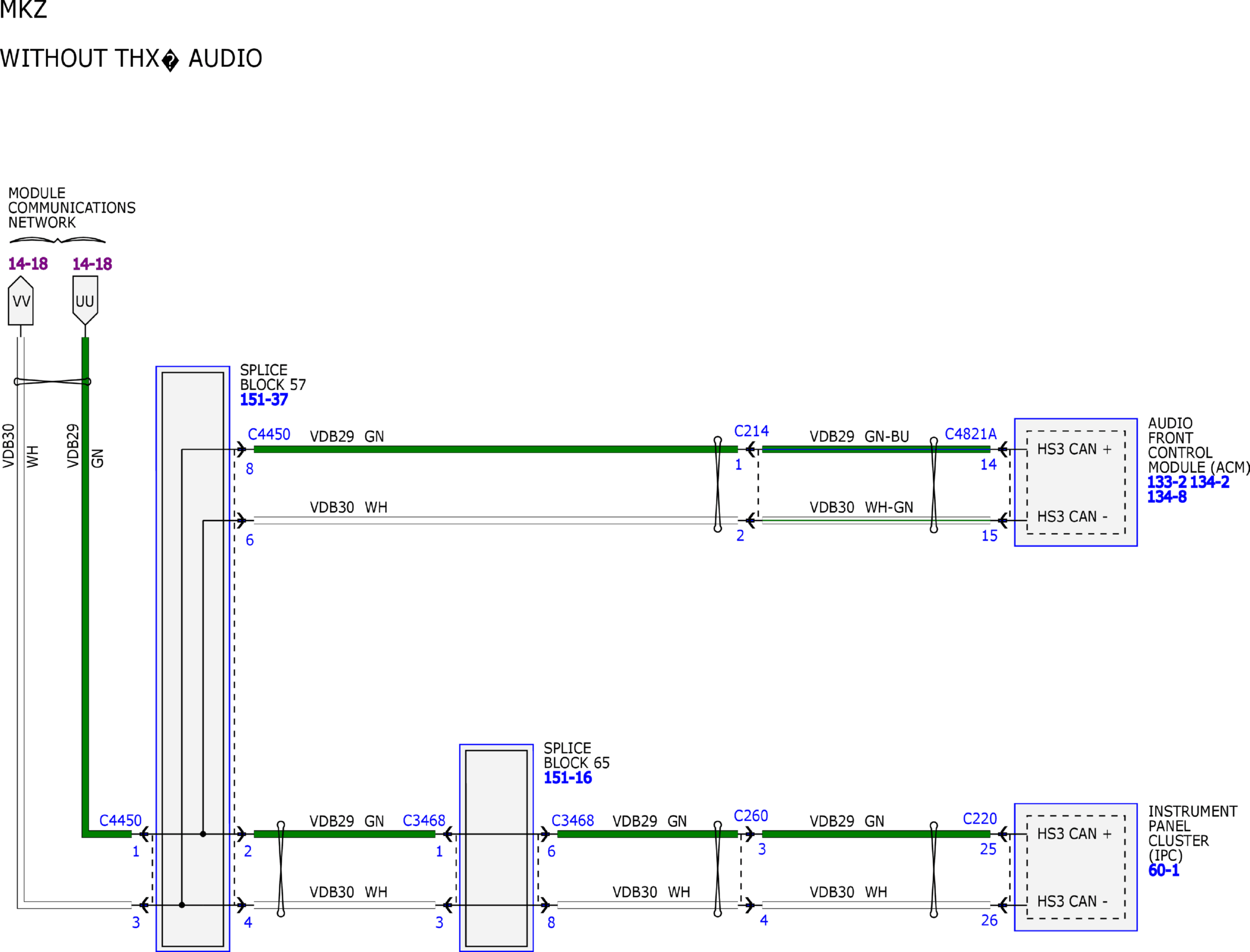

Fig 14: Module Communications Network Wiring Diagram (14 of 30)
Courtesy of FORD MOTOR COMPANY

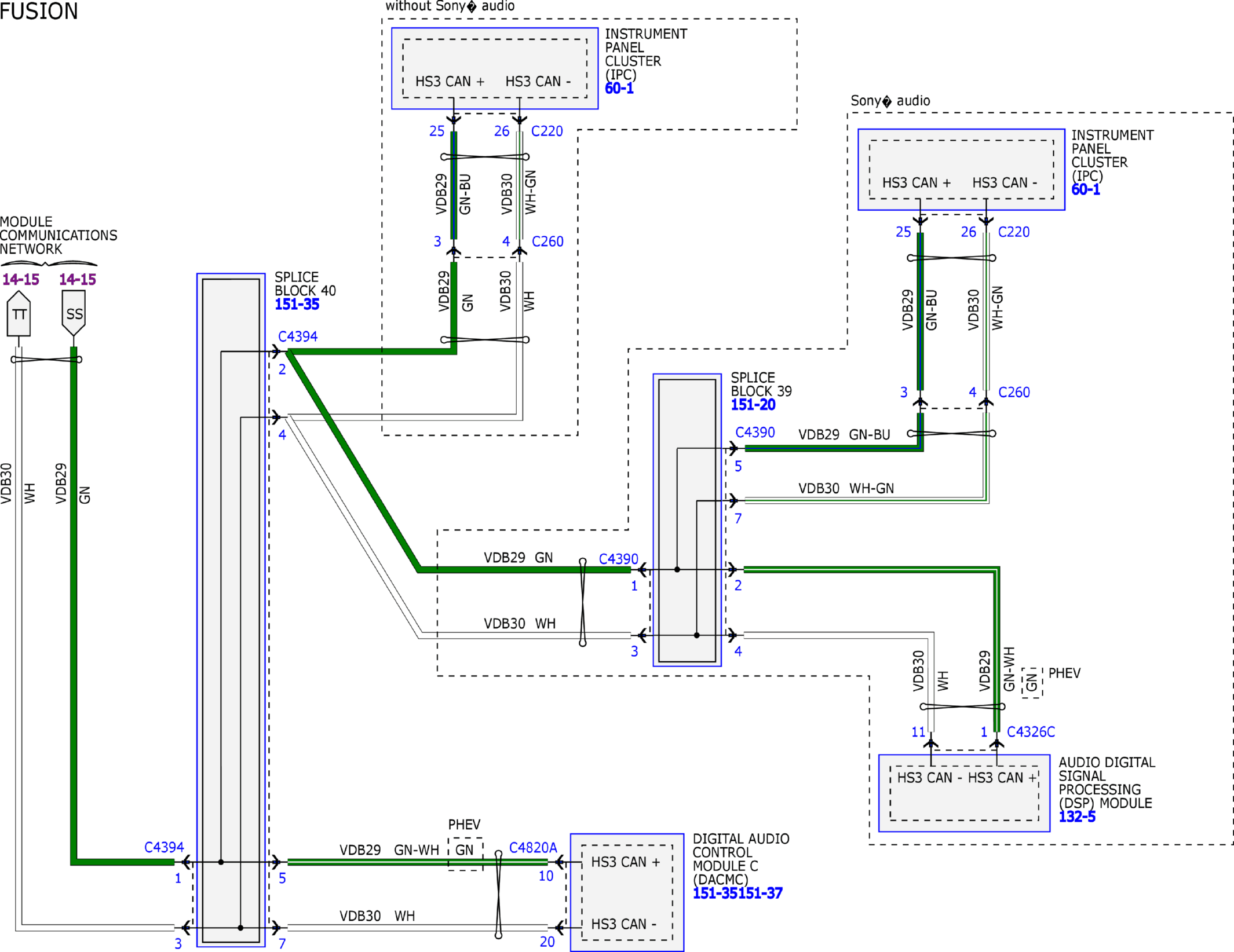

Fig 15: Module Communications Network Wiring Diagram (15 of 30)
Courtesy of FORD MOTOR COMPANY

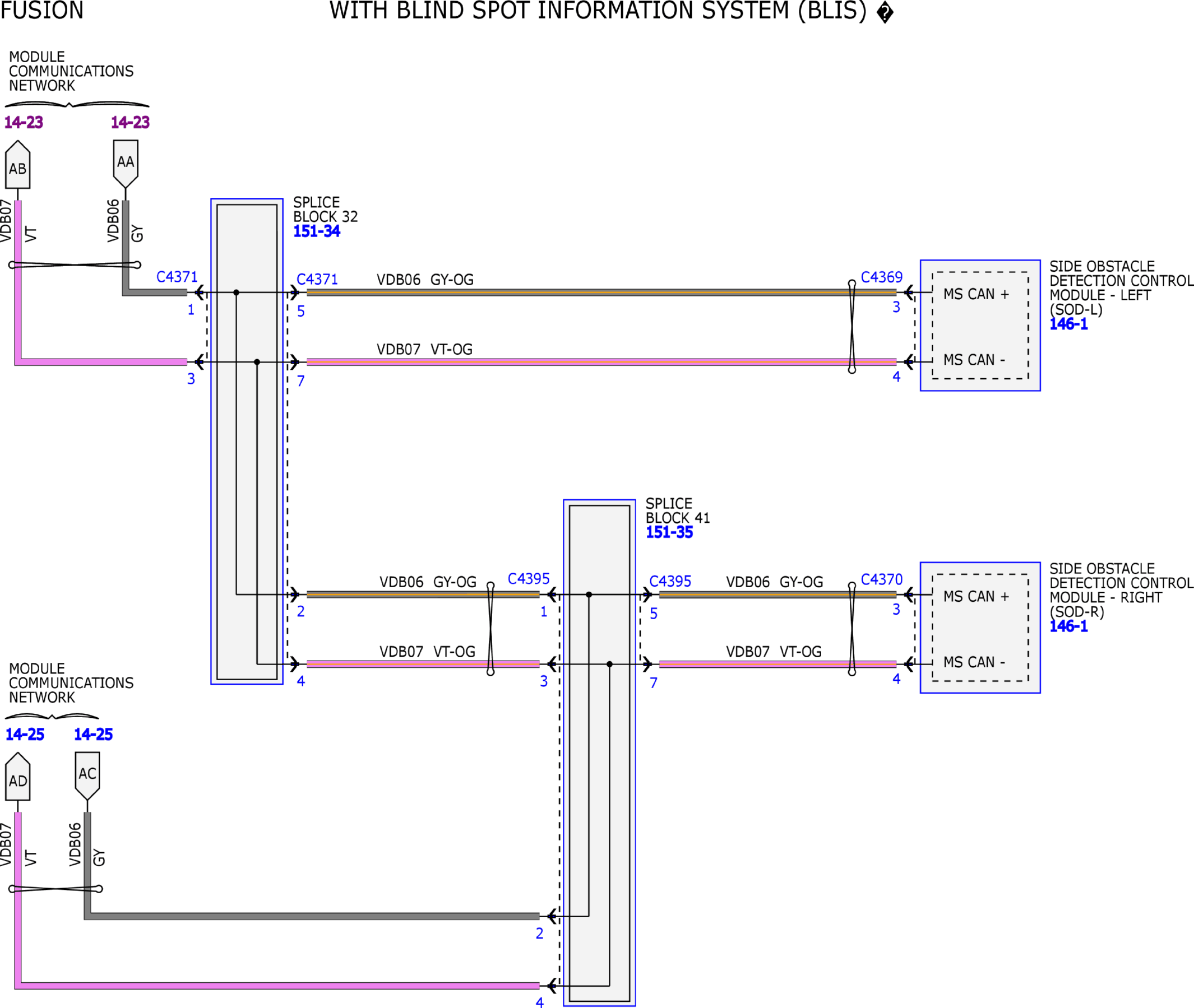

Fig 16: Module Communications Network Wiring Diagram (16 of 30)
Courtesy of FORD MOTOR COMPANY
Fig 17: Module Communications Network Wiring Diagram (17 of 30)
Courtesy of FORD MOTOR COMPANY

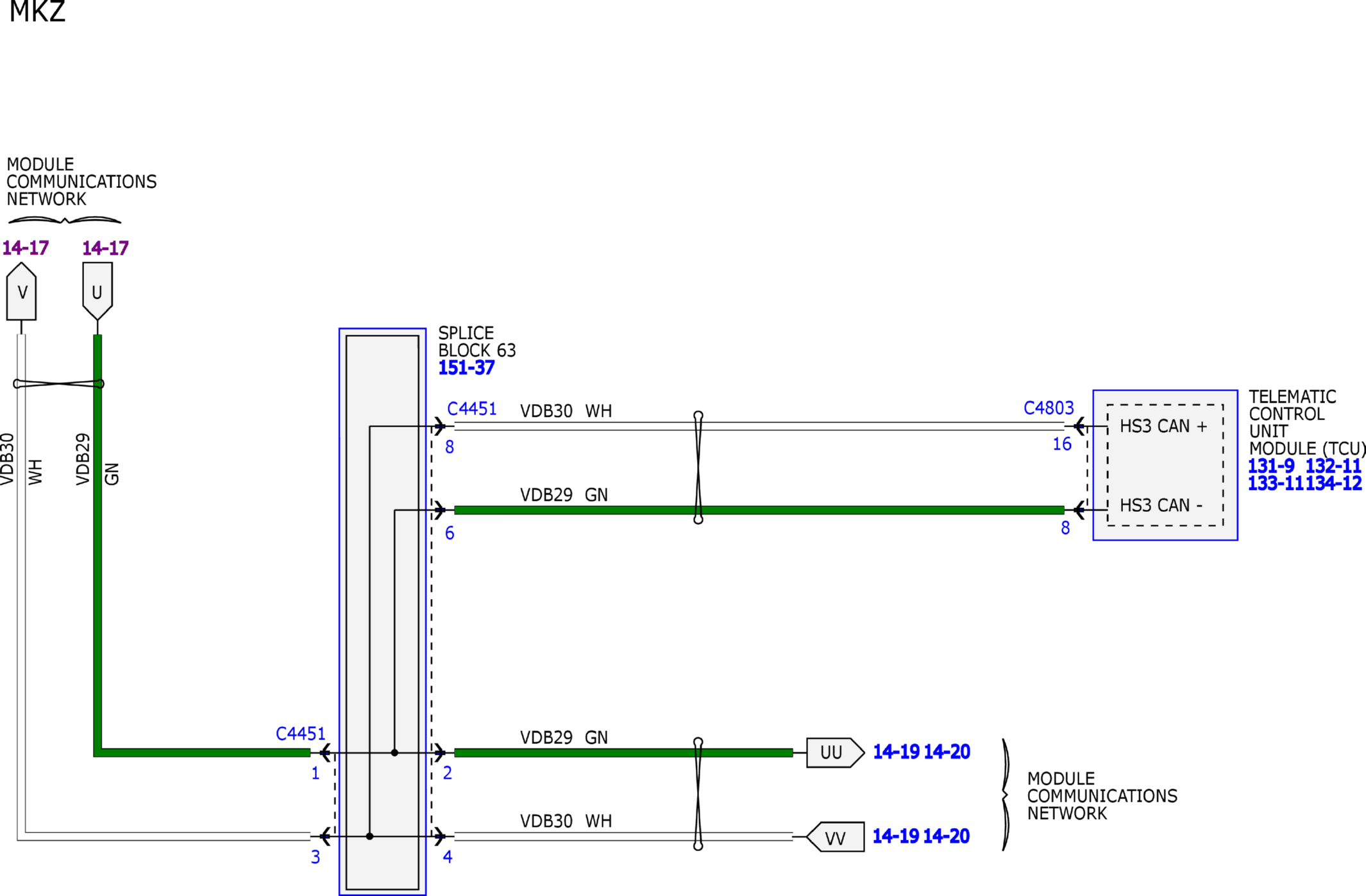

Fig 18: Module Communications Network Wiring Diagram (18 of 30)
Courtesy of FORD MOTOR COMPANY
Fig 19: Module Communications Network Wiring Diagram (19 of 30)
Courtesy of FORD MOTOR COMPANY
Fig 20: Module Communications Network Wiring Diagram (20 of 30)
Courtesy of FORD MOTOR COMPANY
Fig 21: Module Communications Network Wiring Diagram (21 of 30)
Courtesy of FORD MOTOR COMPANY

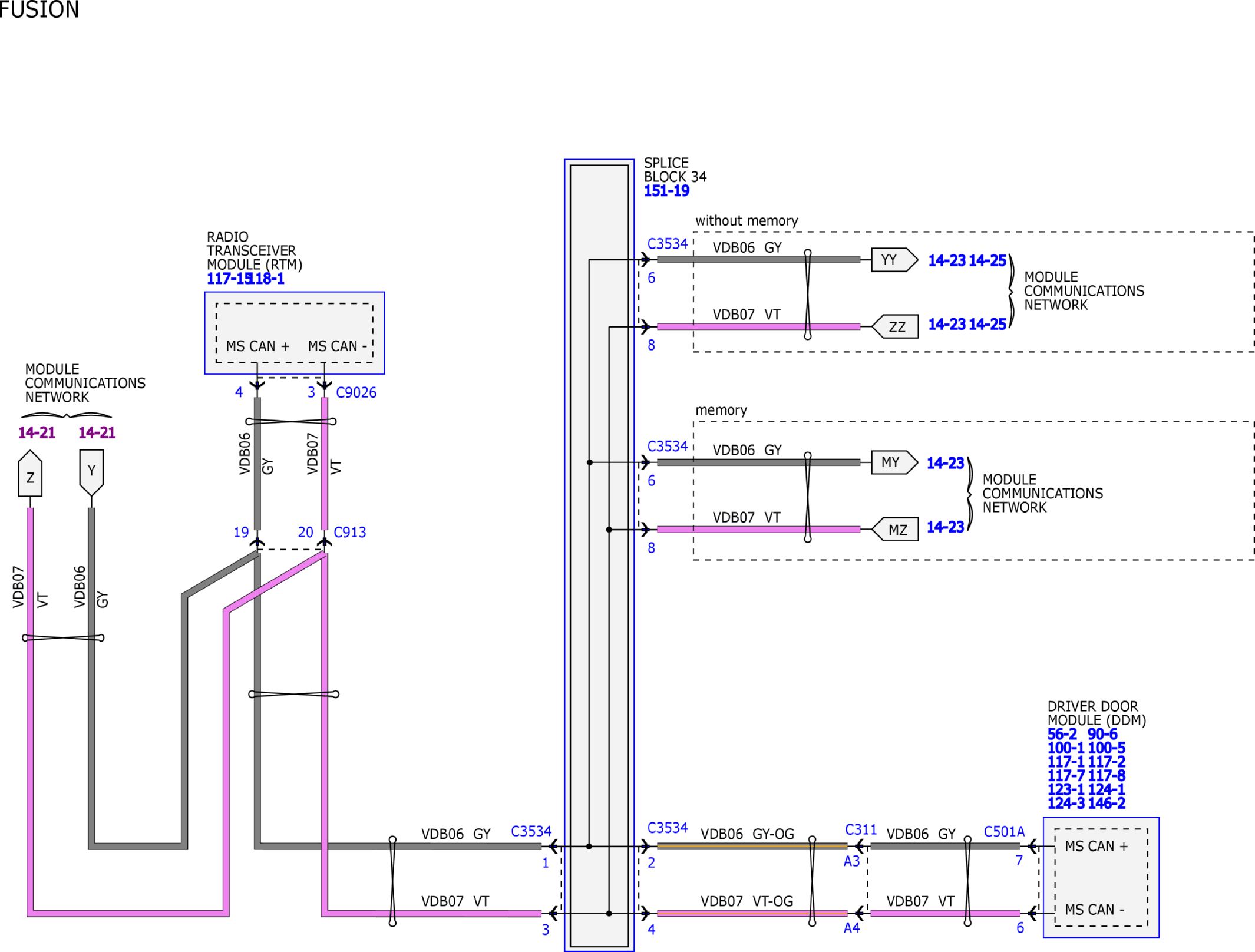

Fig 22: Module Communications Network Wiring Diagram (22 of 30)
Courtesy of FORD MOTOR COMPANY

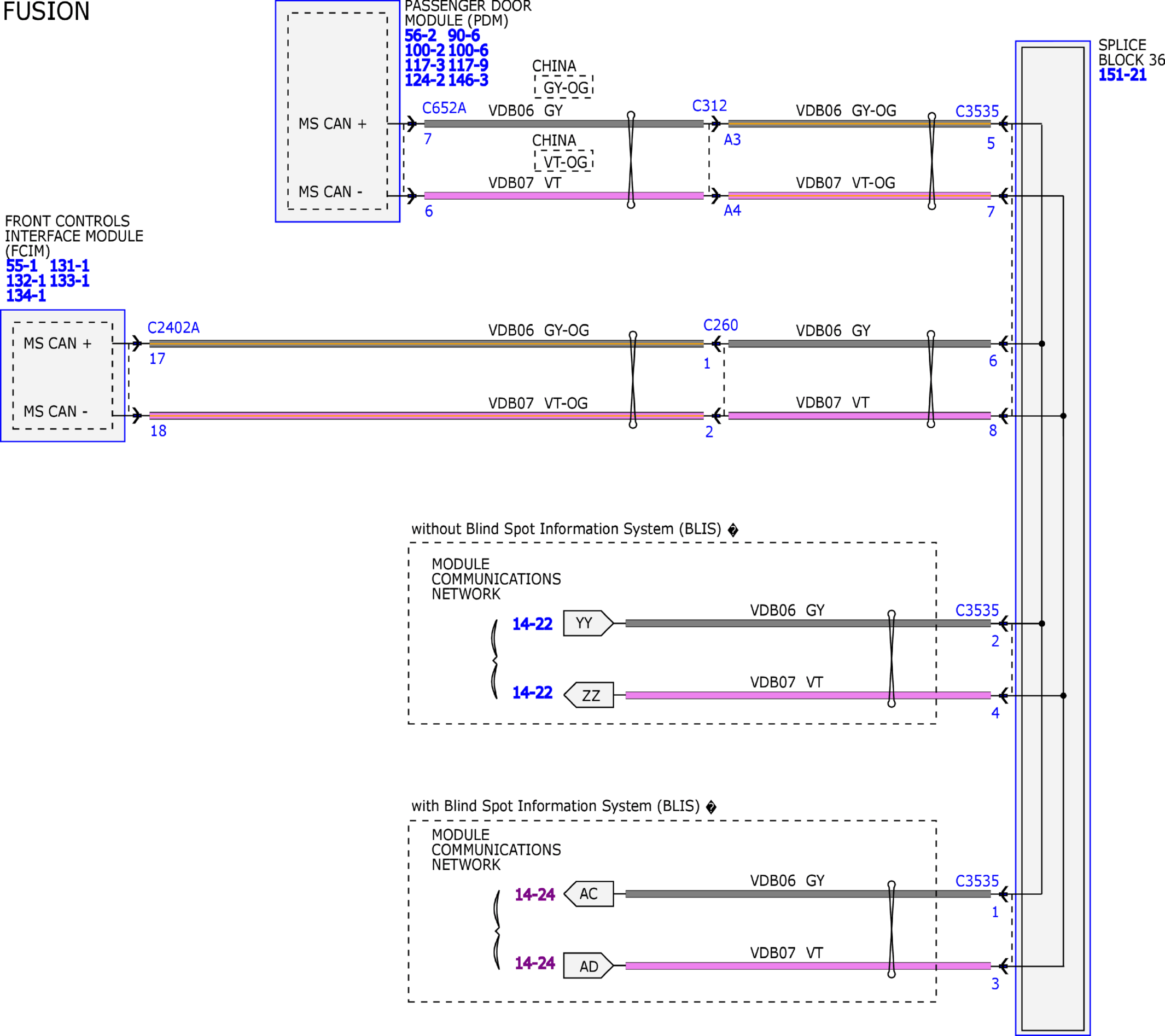

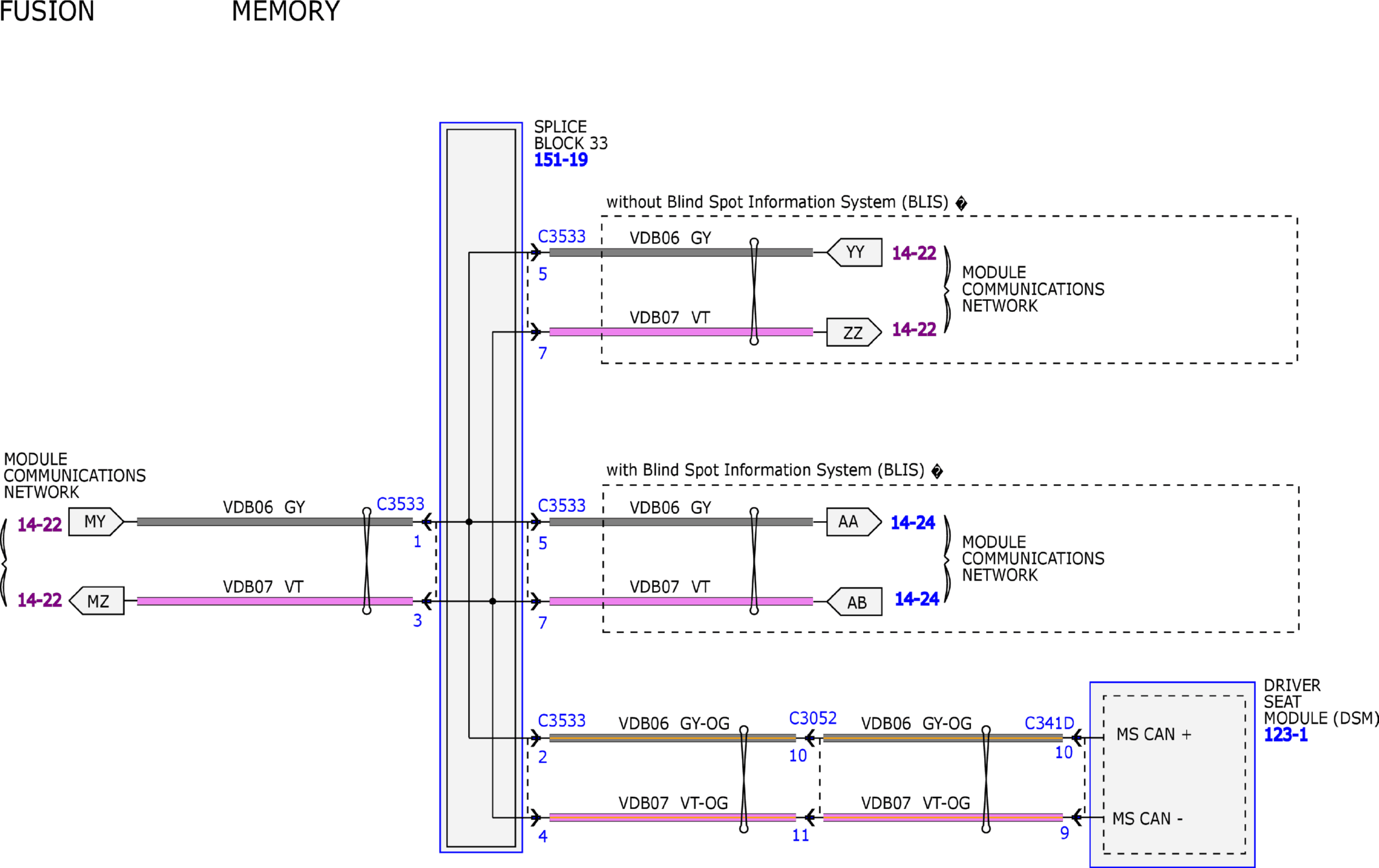

Fig 23: Module Communications Network Wiring Diagram (23 of 30)
Courtesy of FORD MOTOR COMPANY
Fig 24: Module Communications Network Wiring Diagram (24 of 30)
Courtesy of FORD MOTOR COMPANY
Fig 25: Module Communications Network Wiring Diagram (25 of 30)
Courtesy of FORD MOTOR COMPANY
Fig 26: Module Communications Network Wiring Diagram (26 of 30)
Courtesy of FORD MOTOR COMPANY

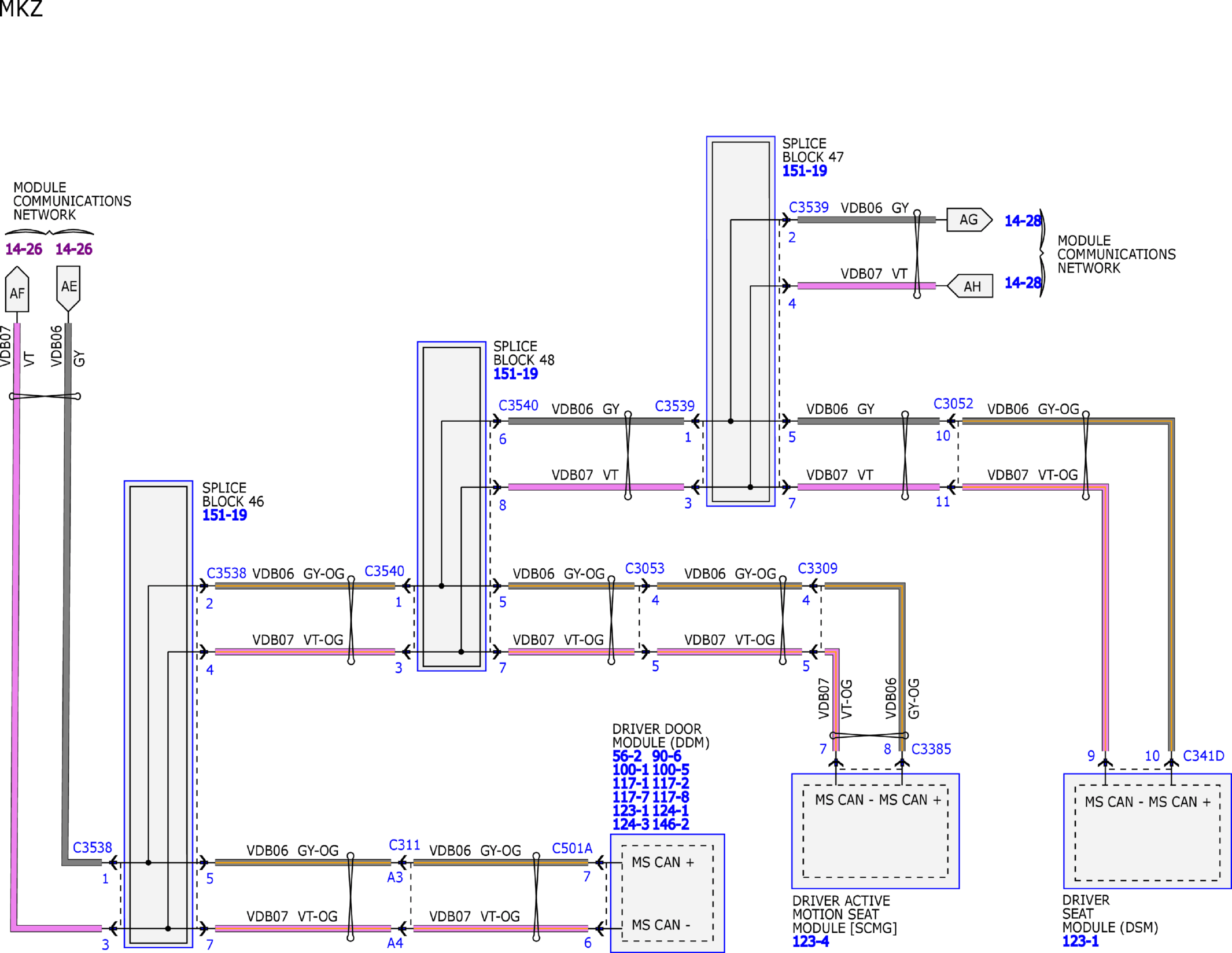

Fig 27: Module Communications Network Wiring Diagram (27 of 30)
Courtesy of FORD MOTOR COMPANY
Fig 28: Module Communications Network Wiring Diagram (28 of 30)
Courtesy of FORD MOTOR COMPANY
Fig 29: Module Communications Network Wiring Diagram (29 of 30)
Courtesy of FORD MOTOR COMPANY
Fig 30: Module Communications Network Wiring Diagram (30 of 30)
