Fuel Filler Door Release
Fuel Filler Door Release
WARNING:
This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

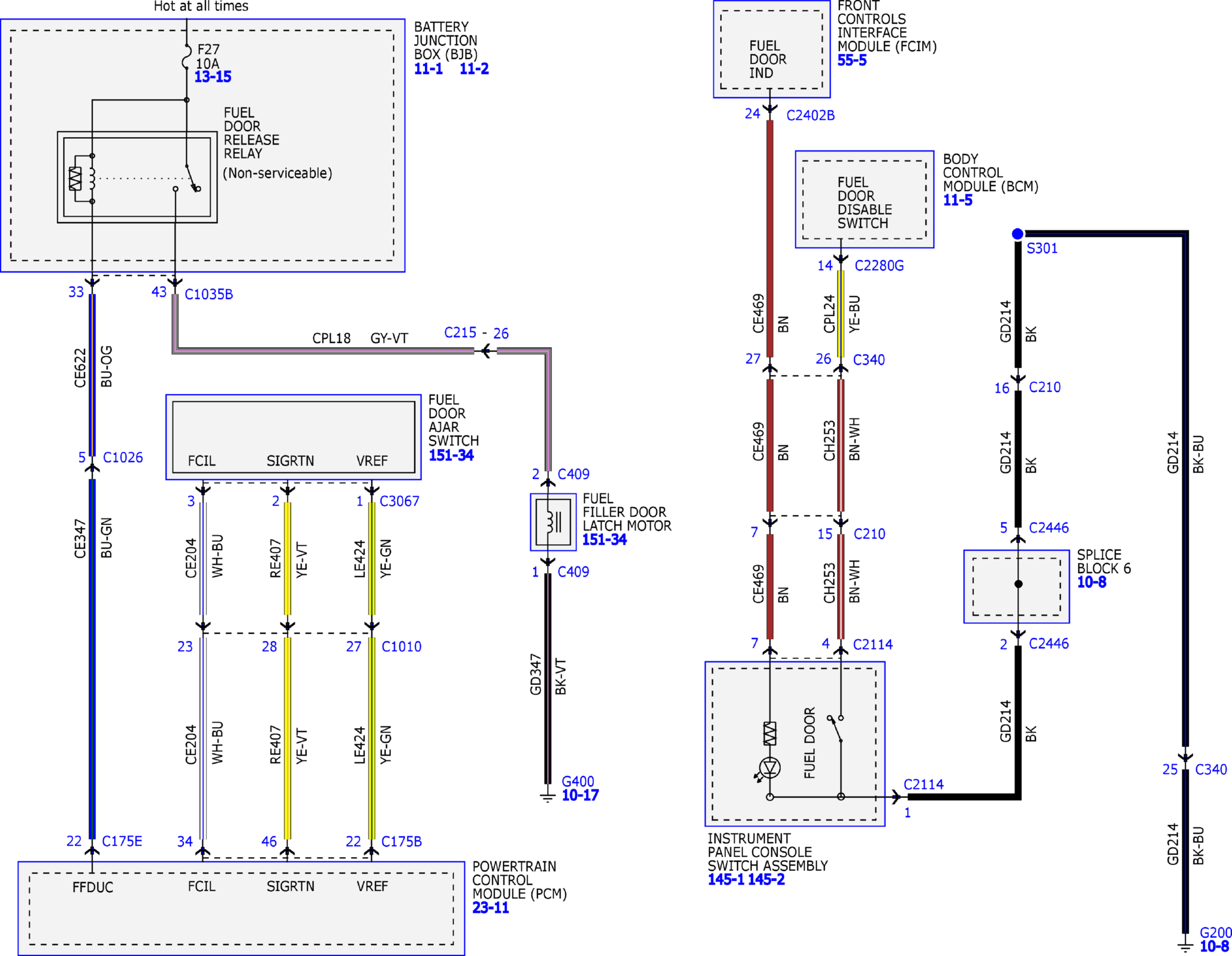

Fig 1: Fuel Filler Door Release Wiring Diagram
Courtesy of FORD MOTOR COMPANY
