Charging System

WARNING: This page is about a different car, the 2016 Ford Fusion. However, it is still accessible from the selected car via links, so may be relevant.

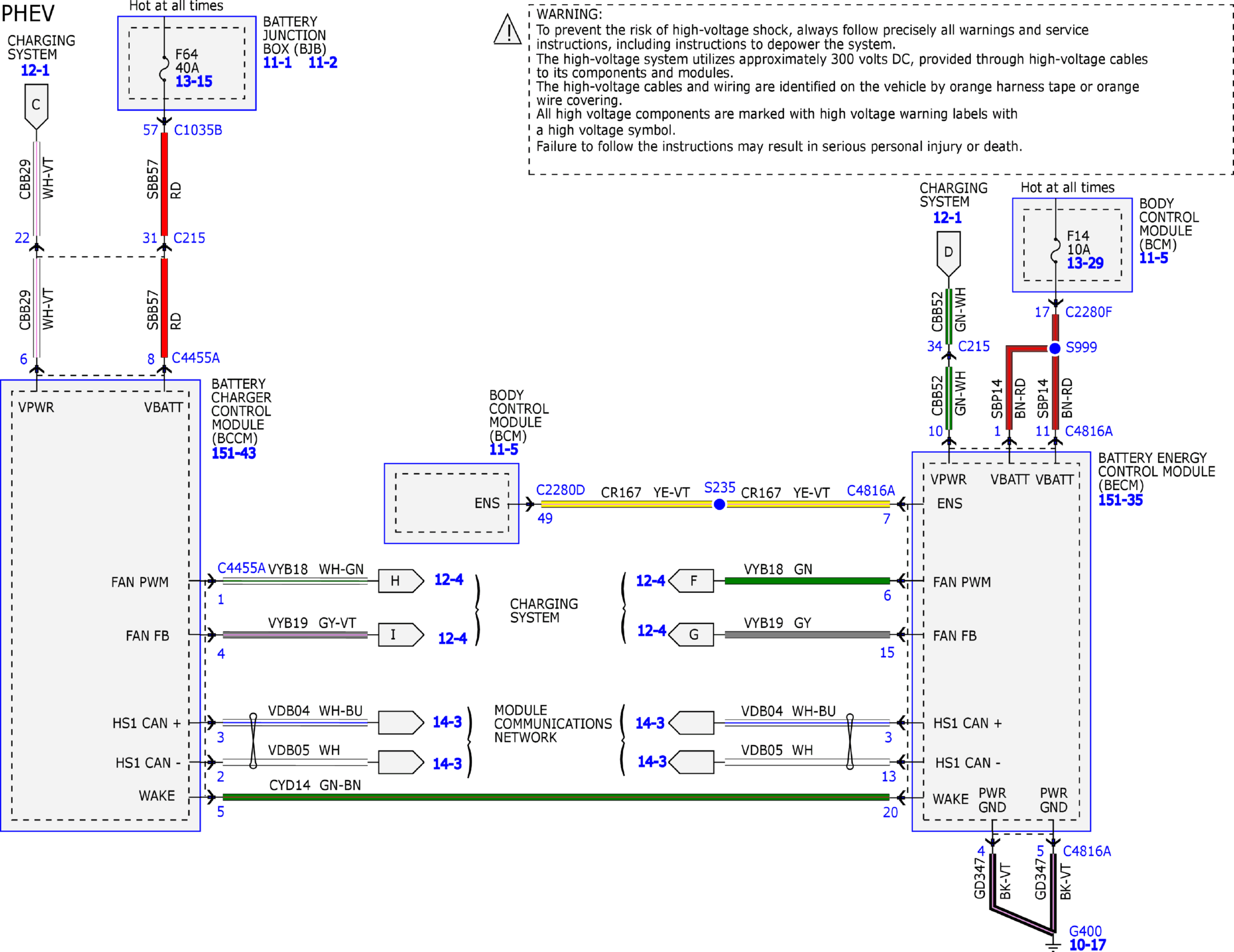

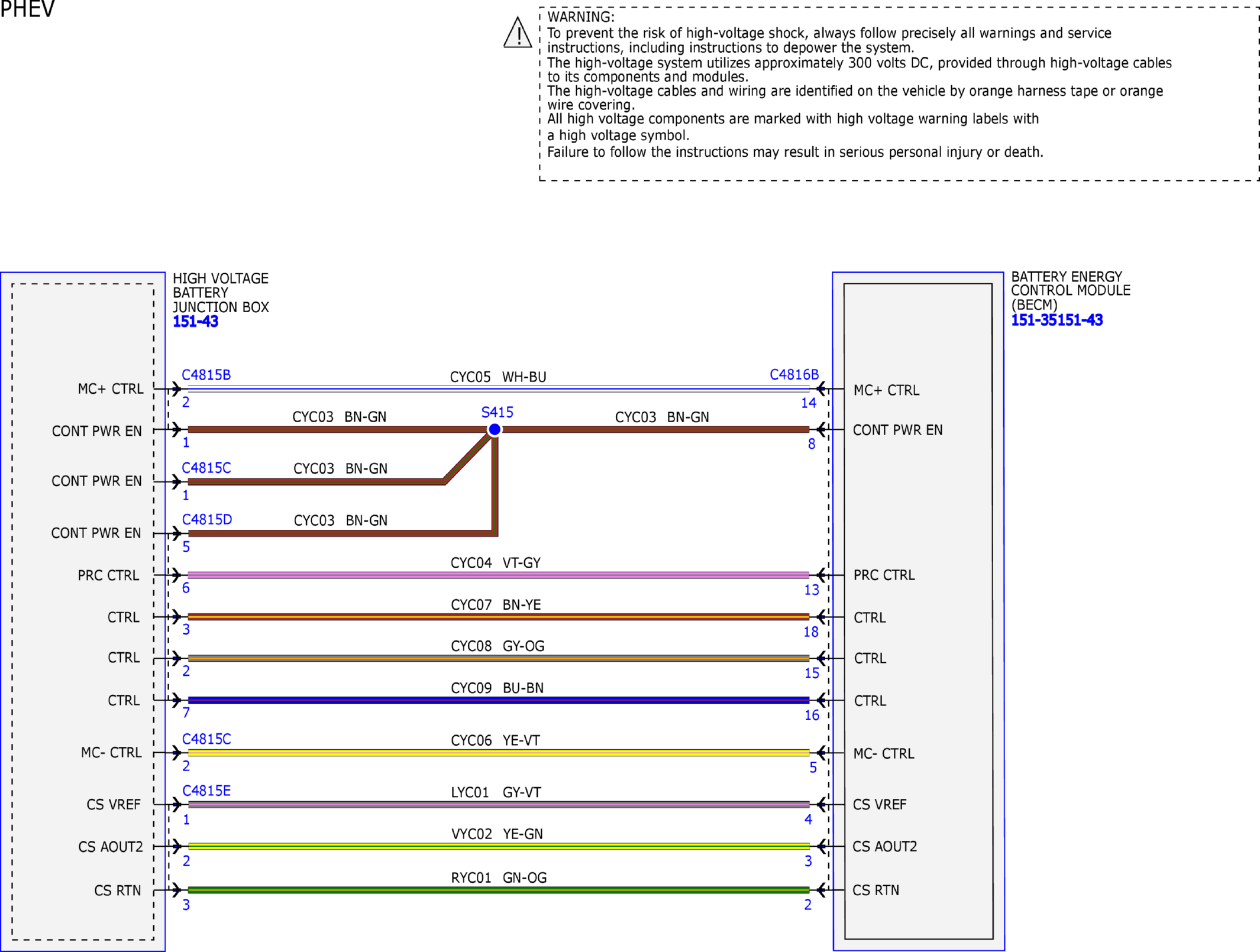

Fig 1: Charging System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

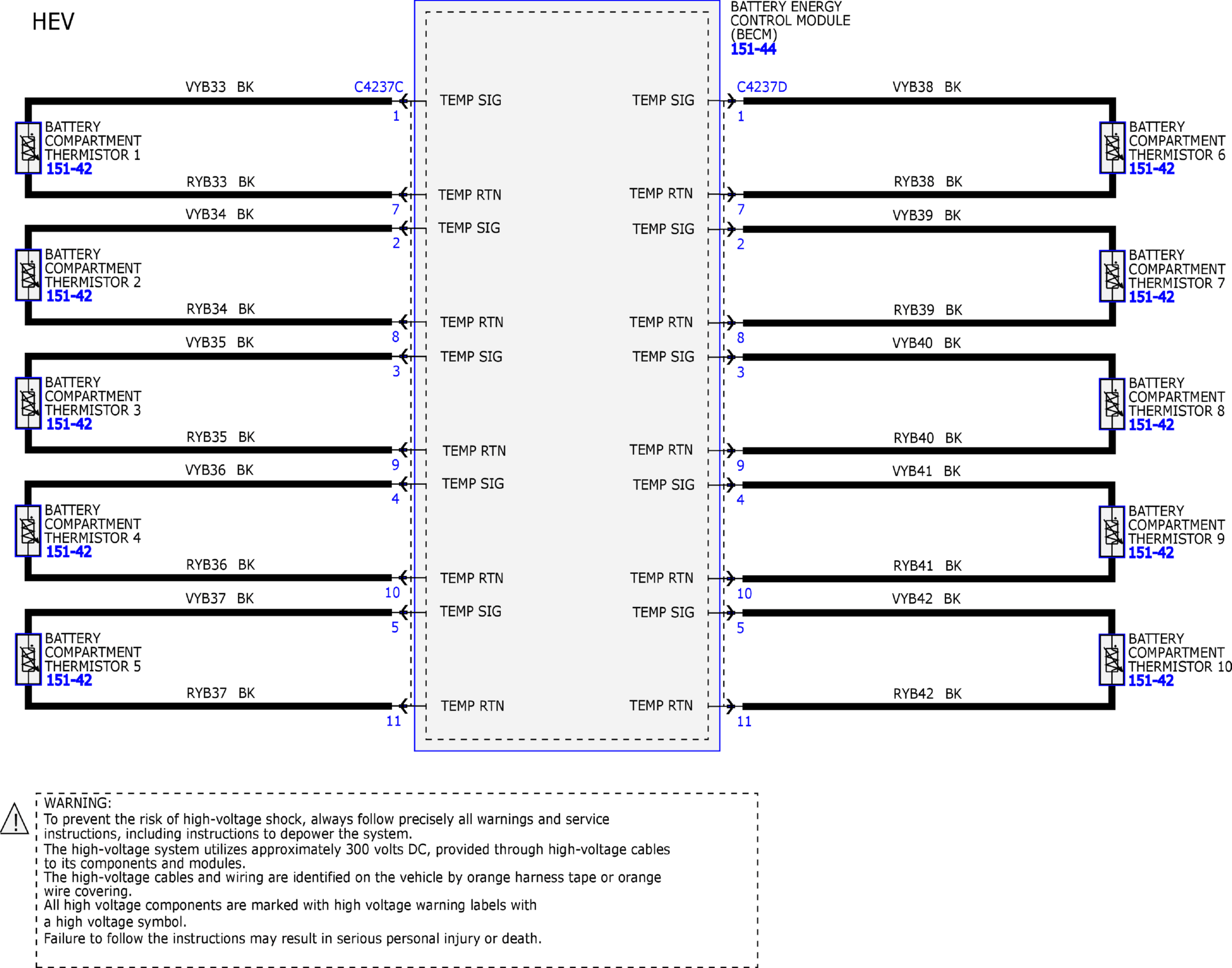

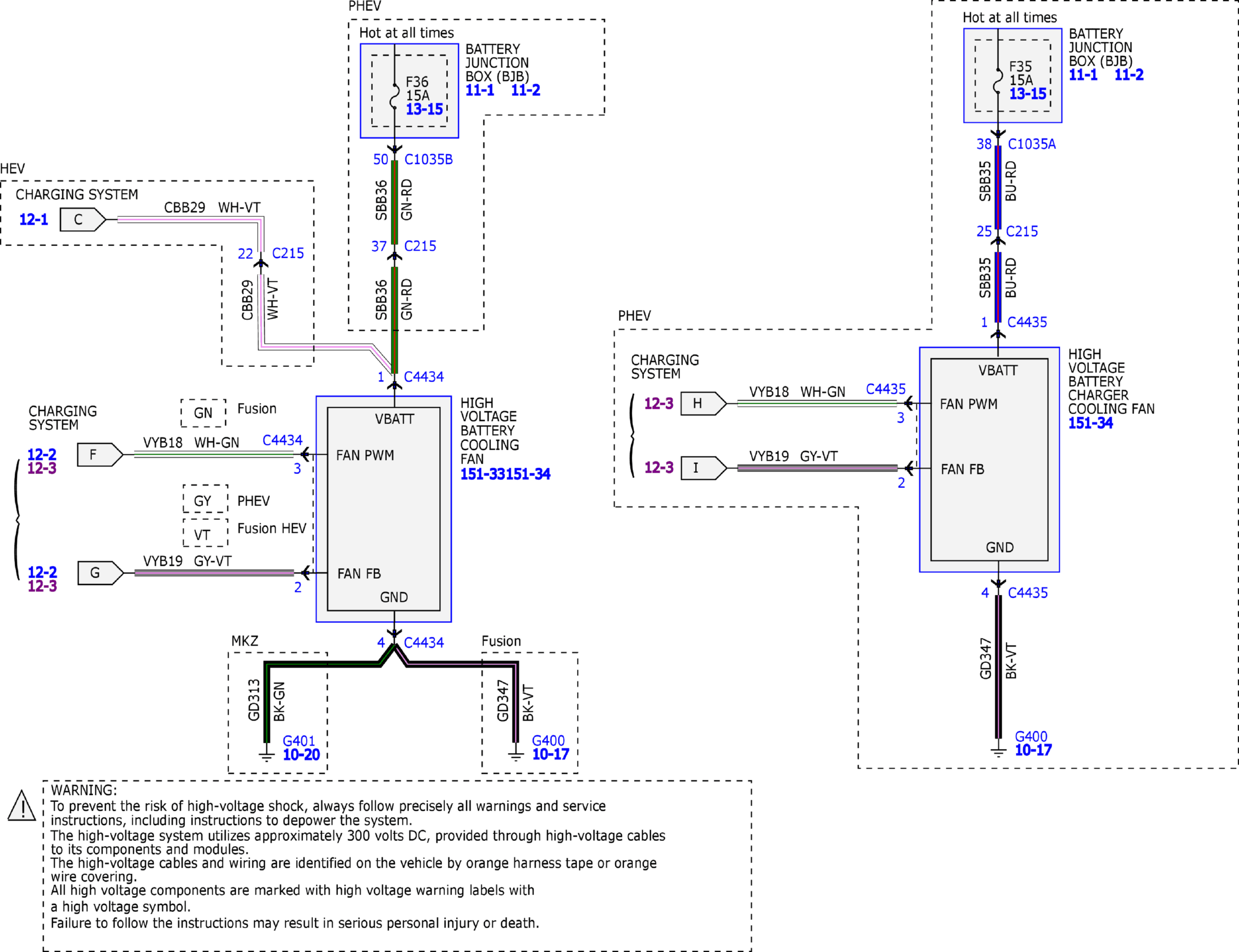

Fig 2: Charging System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

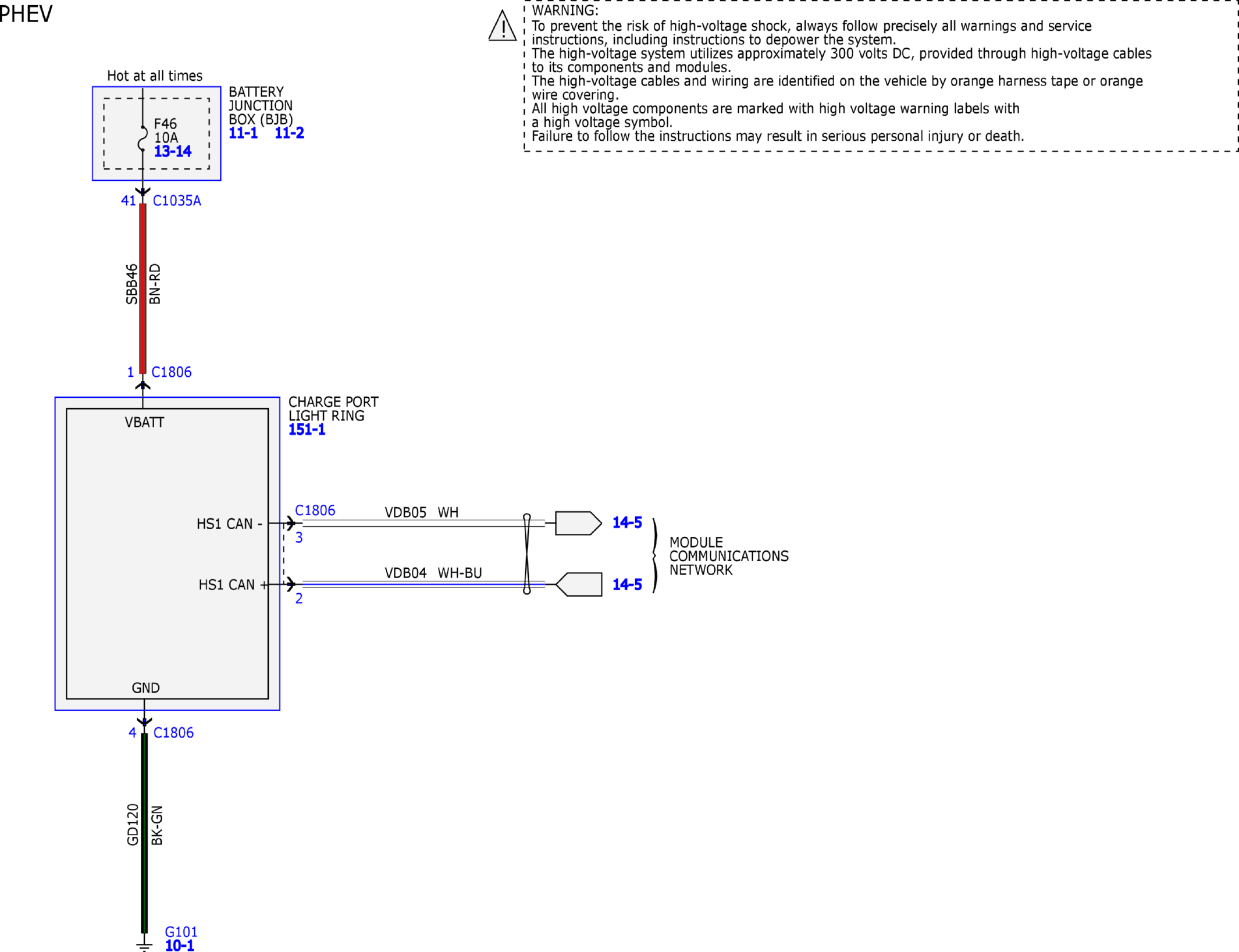

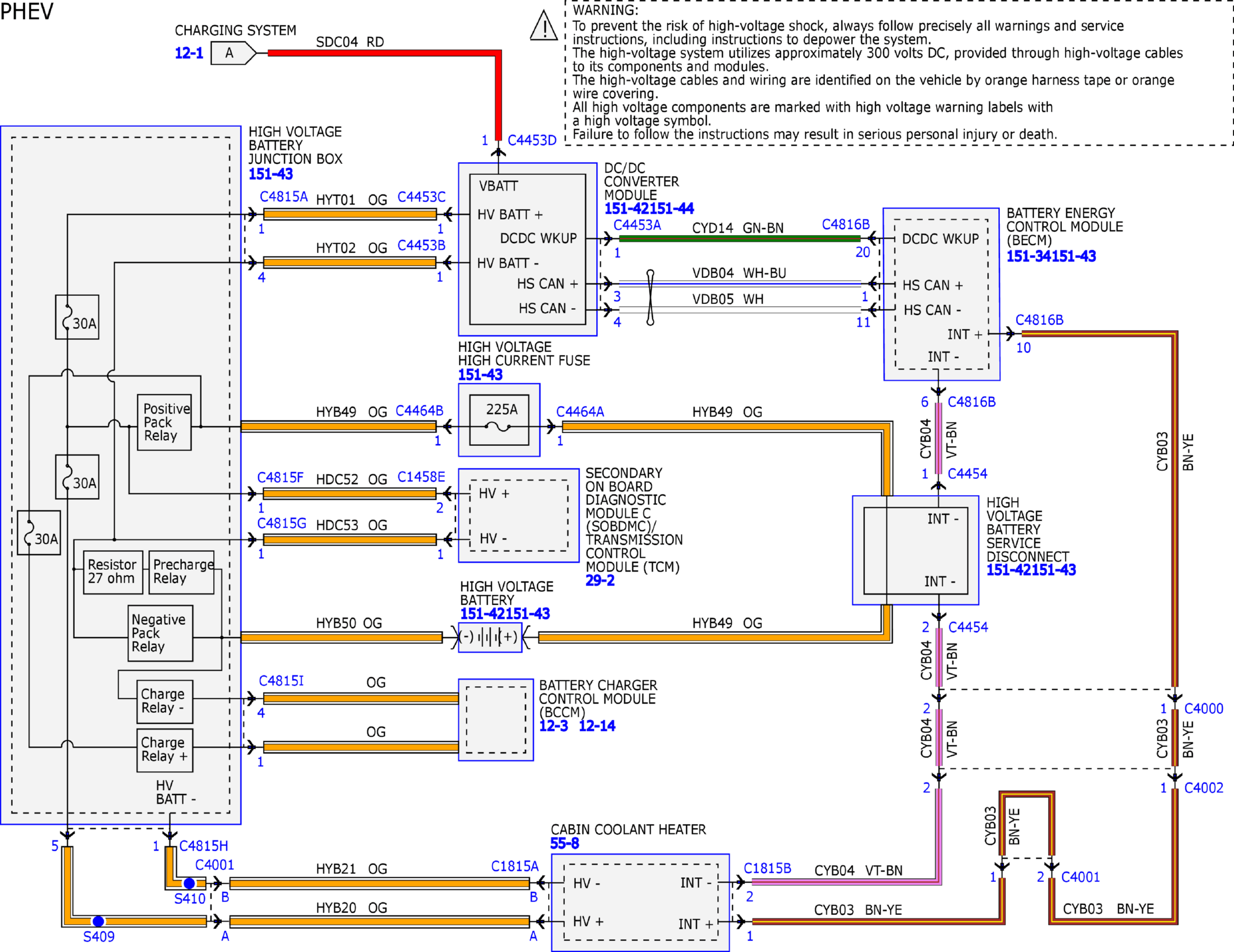

Fig 3: Charging System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

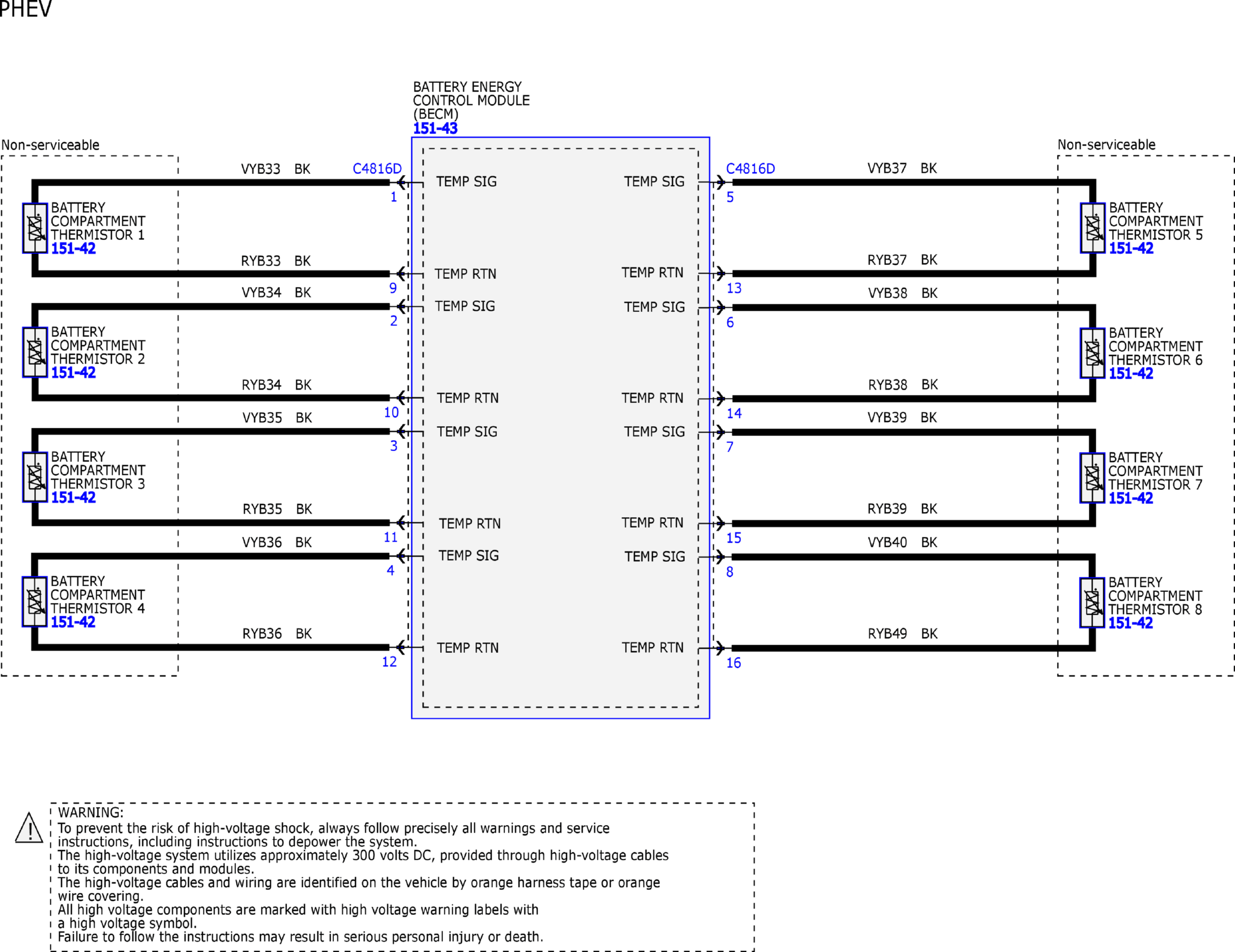

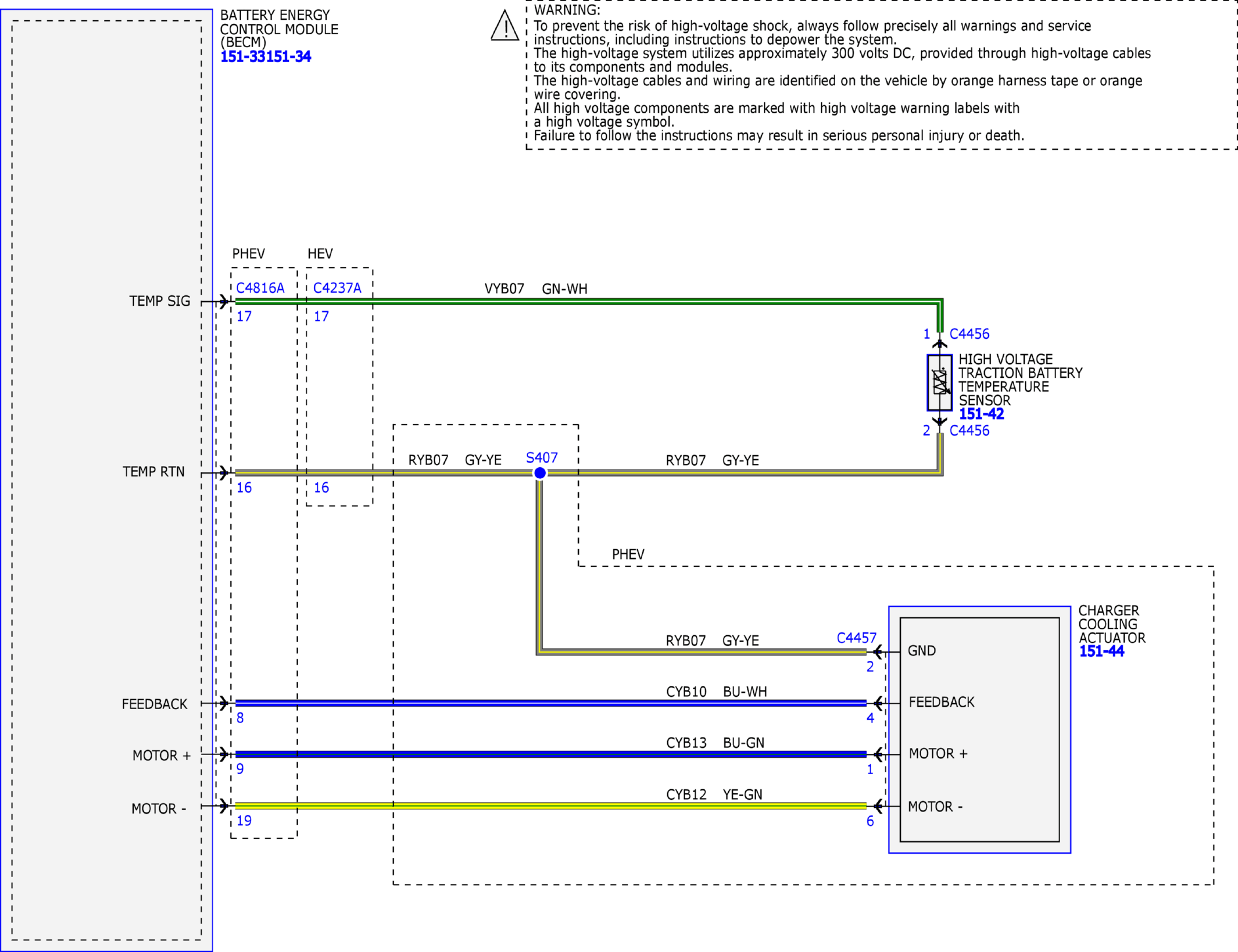

Fig 4: Charging System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

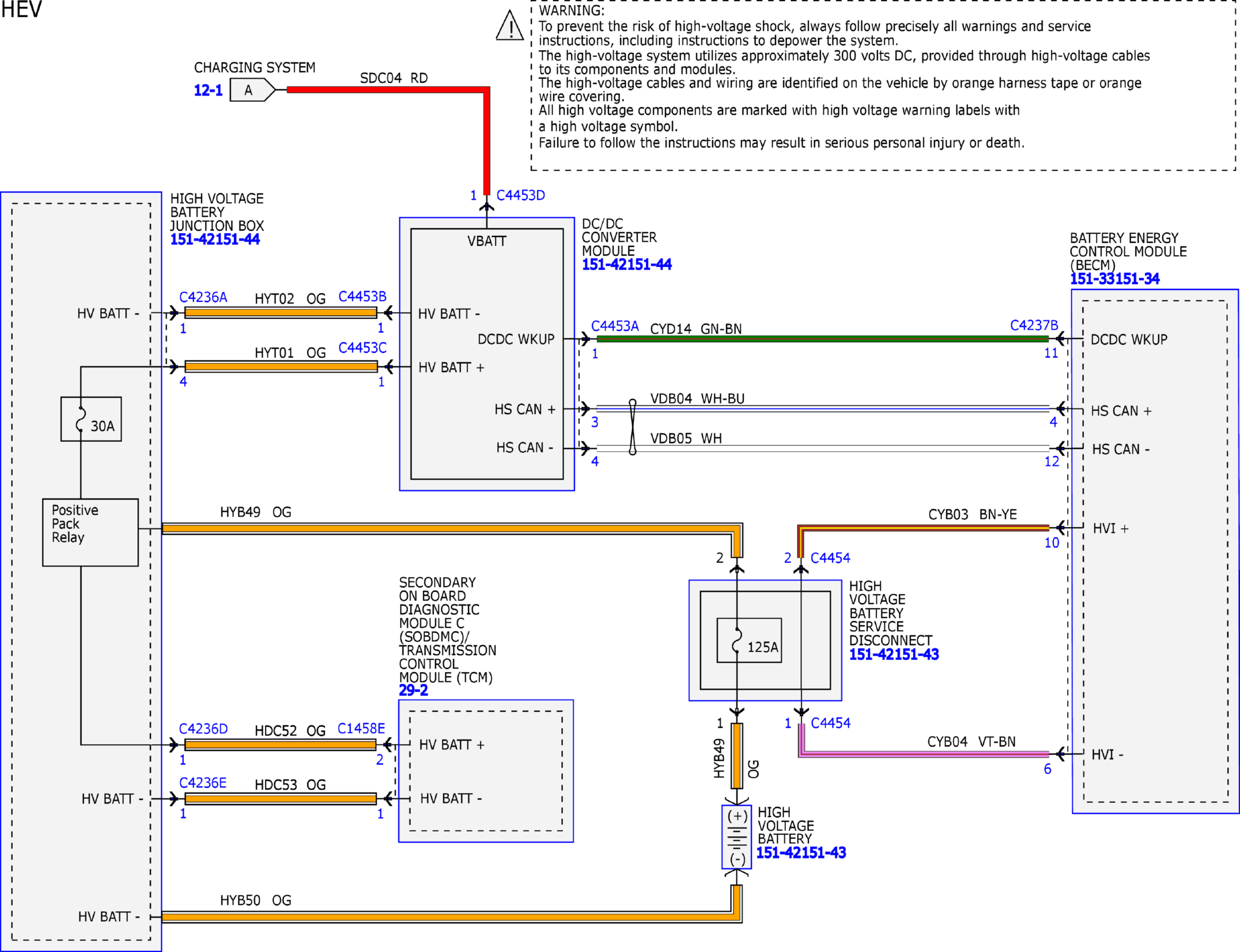

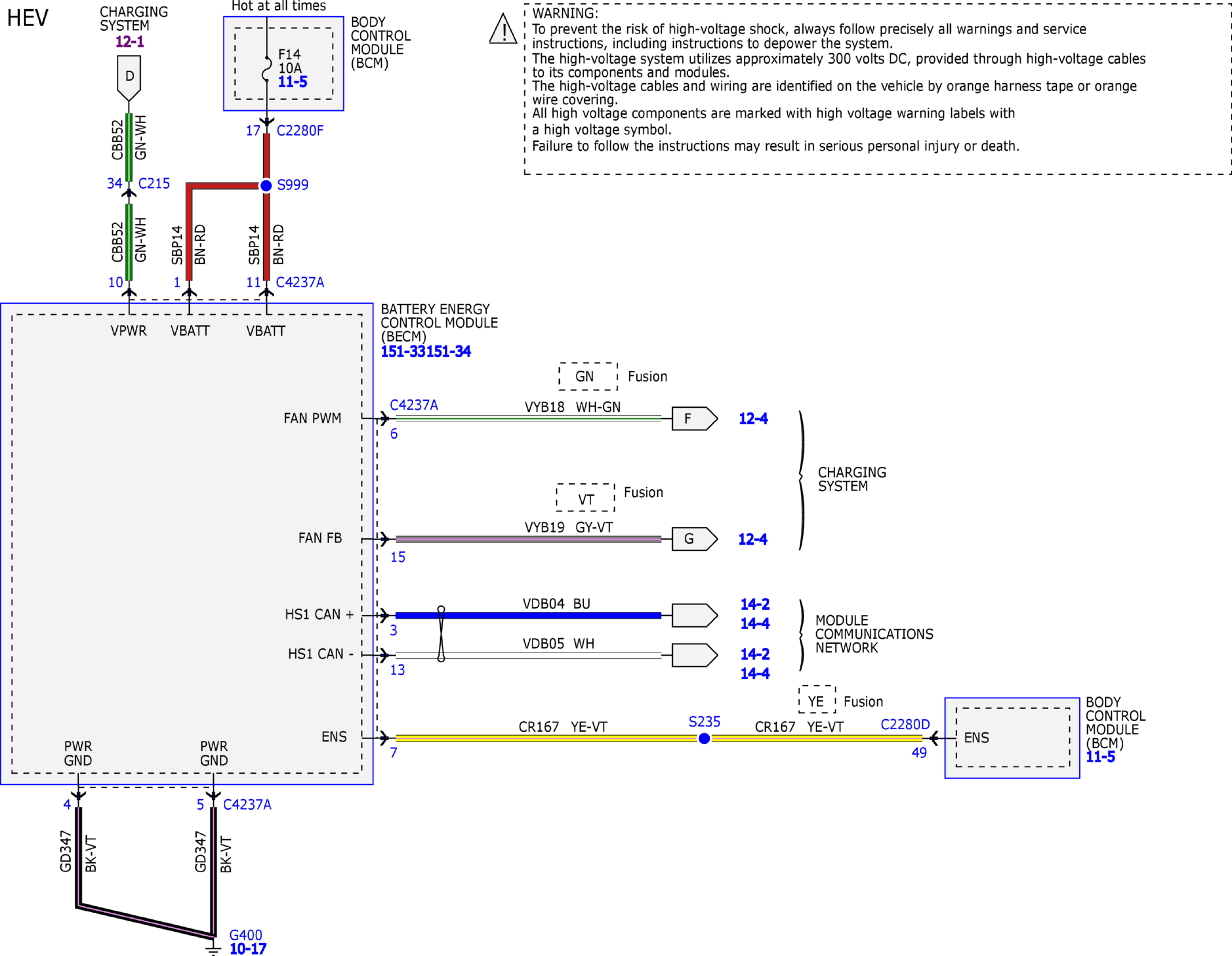

Fig 5: Charging System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

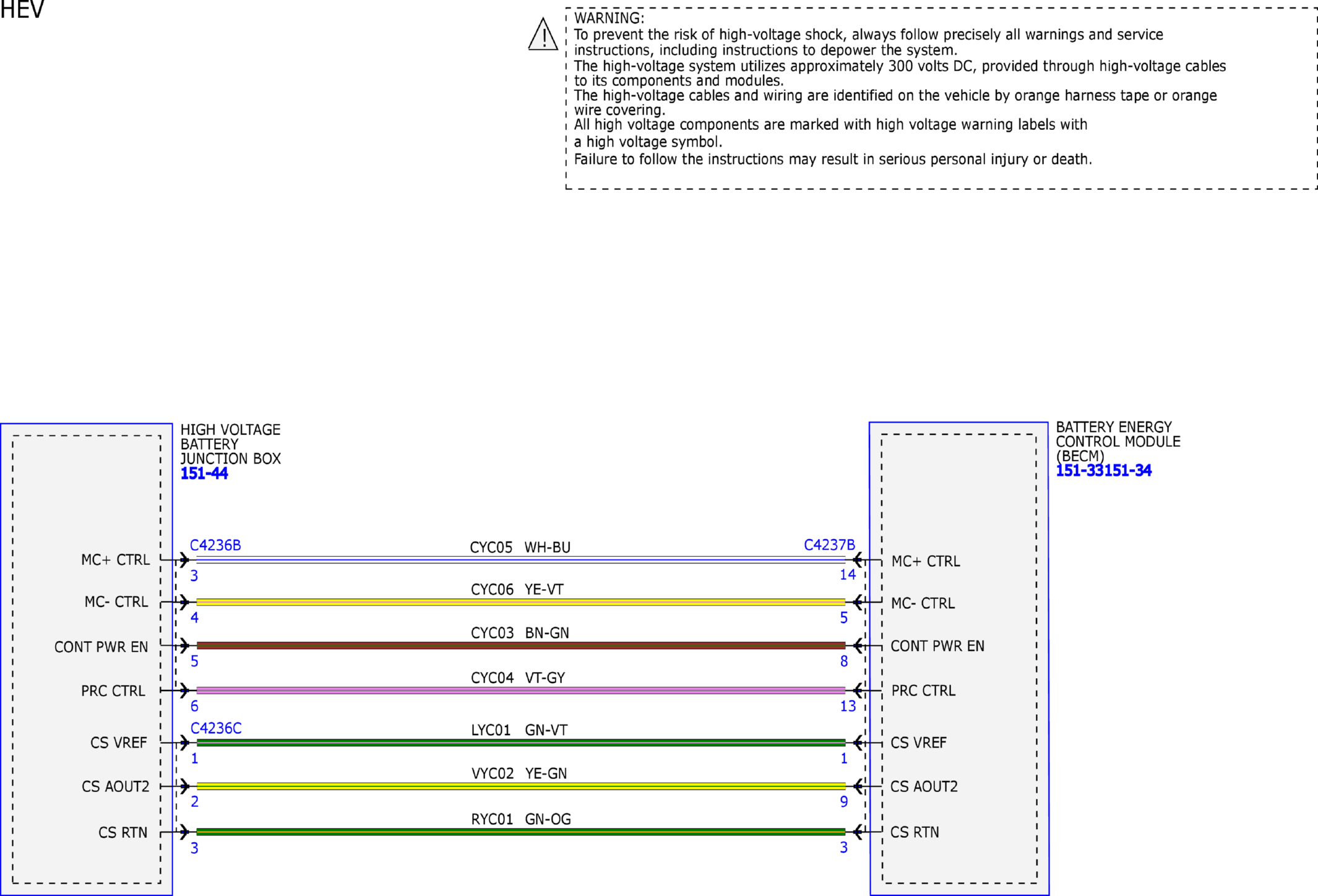

Fig 6: Charging System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

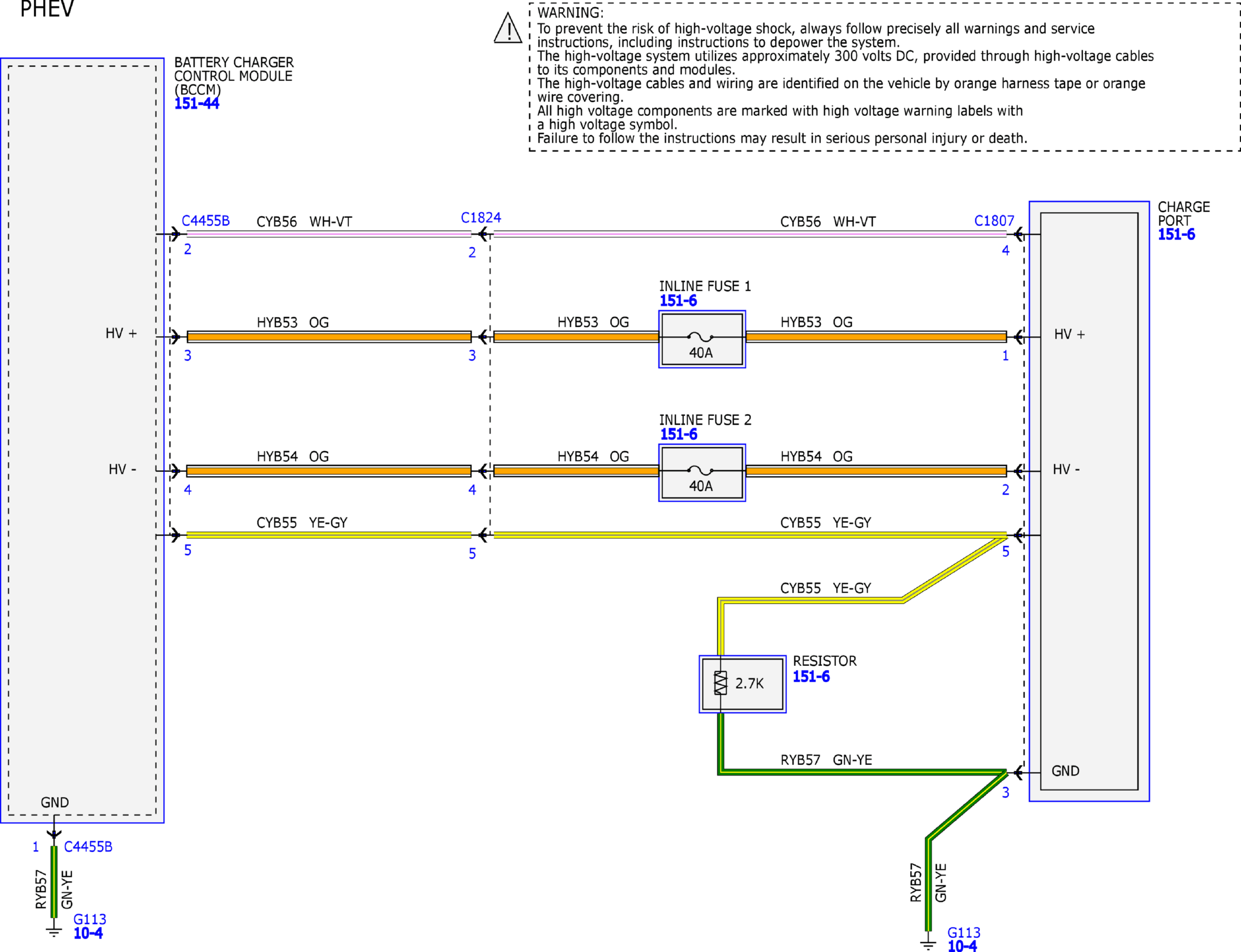

Fig 7: Charging System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

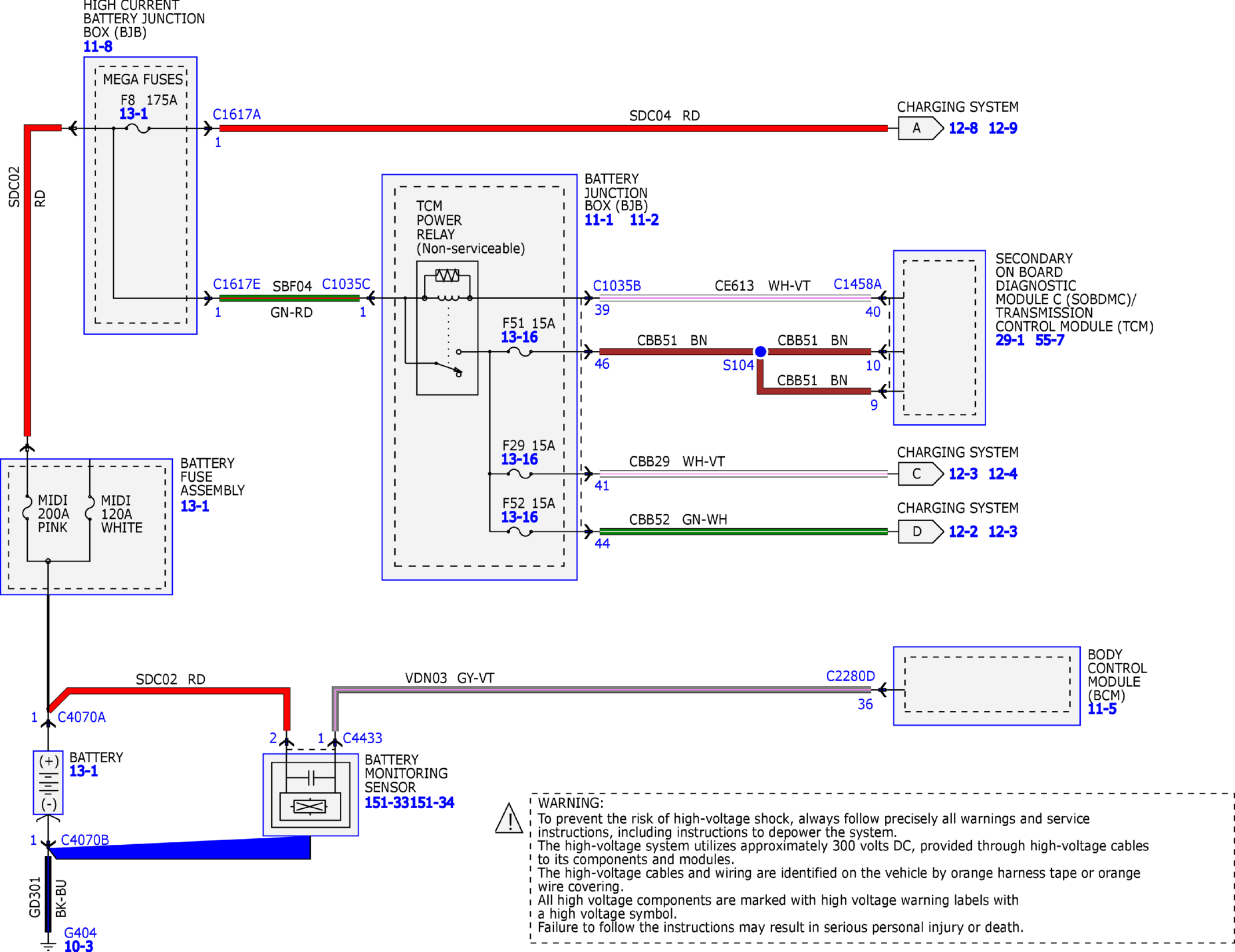

Fig 8: Charging System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 9: Charging System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 10: Charging System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 11: Charging System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 12: Charging System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 13: Charging System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY

Fig 14: Charging System Wiring Diagram (1 of 14)

Courtesy of FORD MOTOR COMPANY
