Wipers And Washers: Fusion

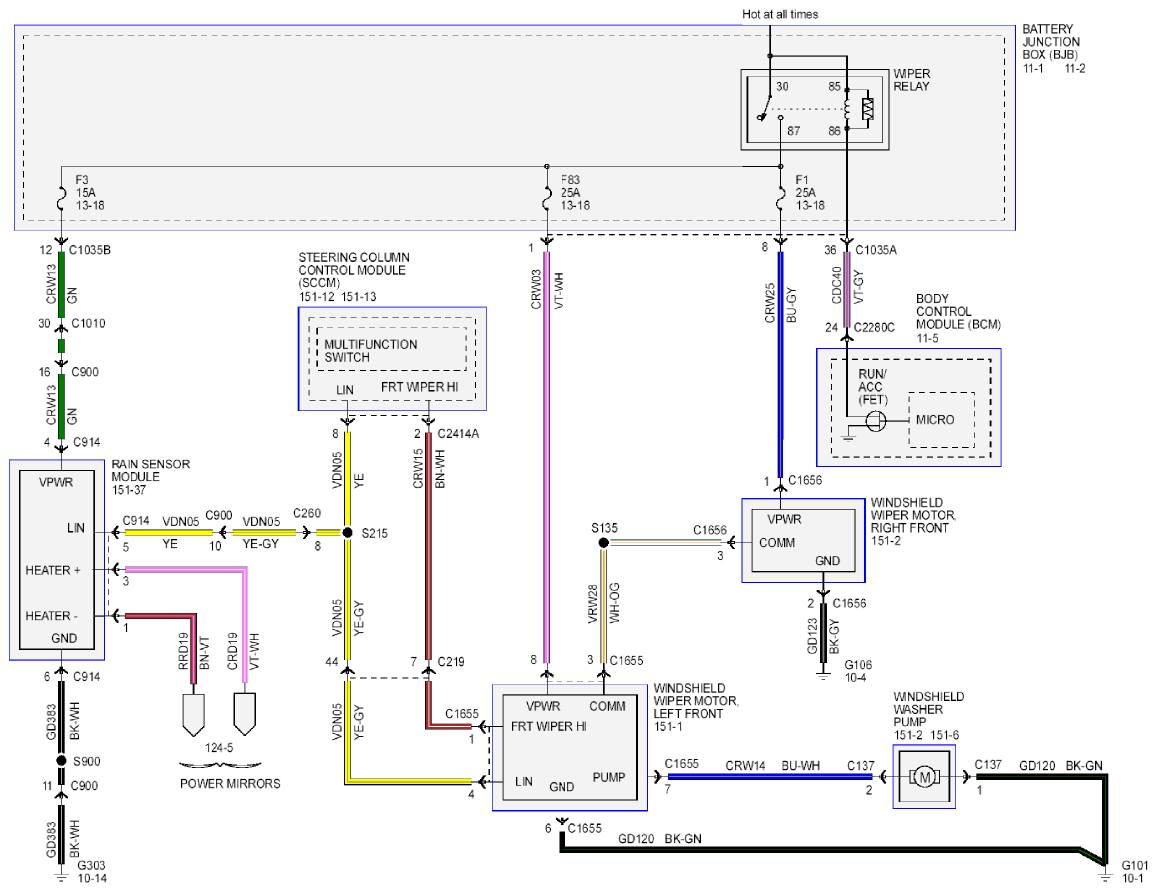

Fig 1: Wipers And Washers - Wiring Diagram - Fusion

G09269477

Courtesy of FORD MOTOR CO.
