With Blind Spot Information System (BLIS)®

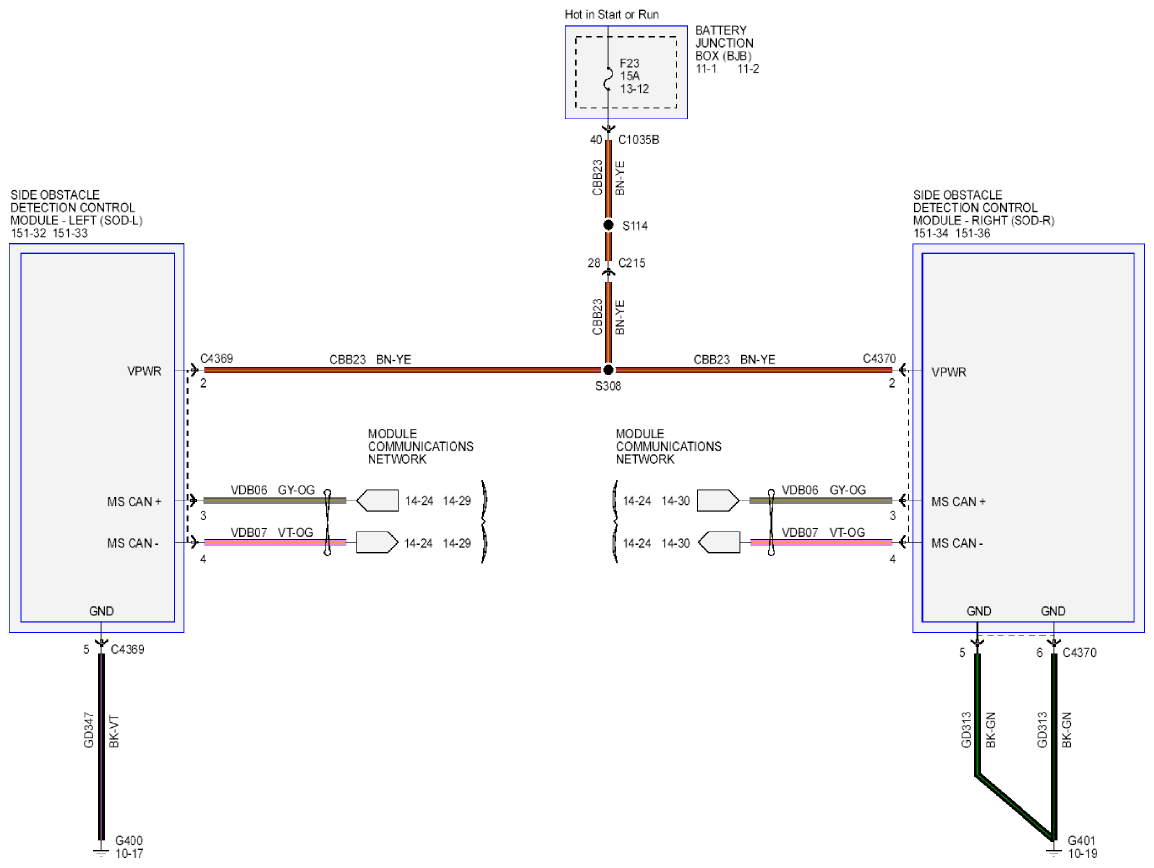

Fig 1: Vehicle Emergency Messaging System With Blind Spot Information System (BLIS)® - Wiring Diagram (1 Of 4)

Courtesy of FORD MOTOR CO.

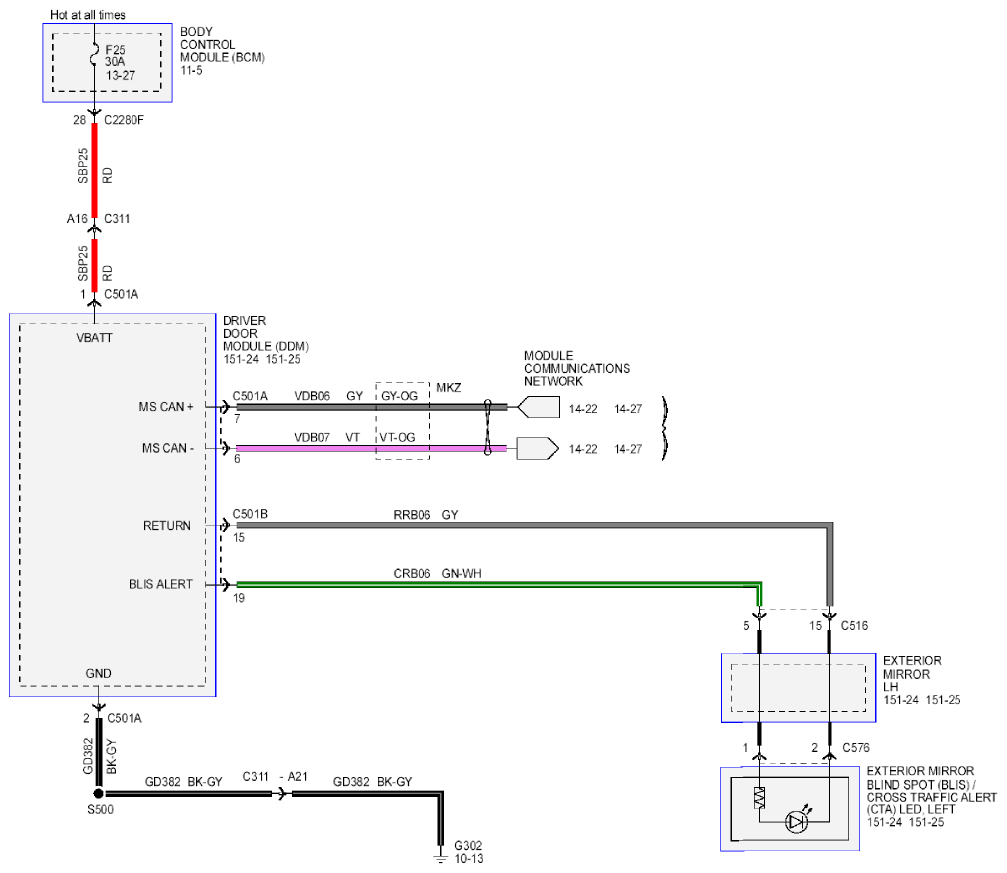

Fig 2: Vehicle Emergency Messaging System With Blind Spot Information System (BLIS)® - Wiring Diagram (2 Of 4)

Courtesy of FORD MOTOR CO.

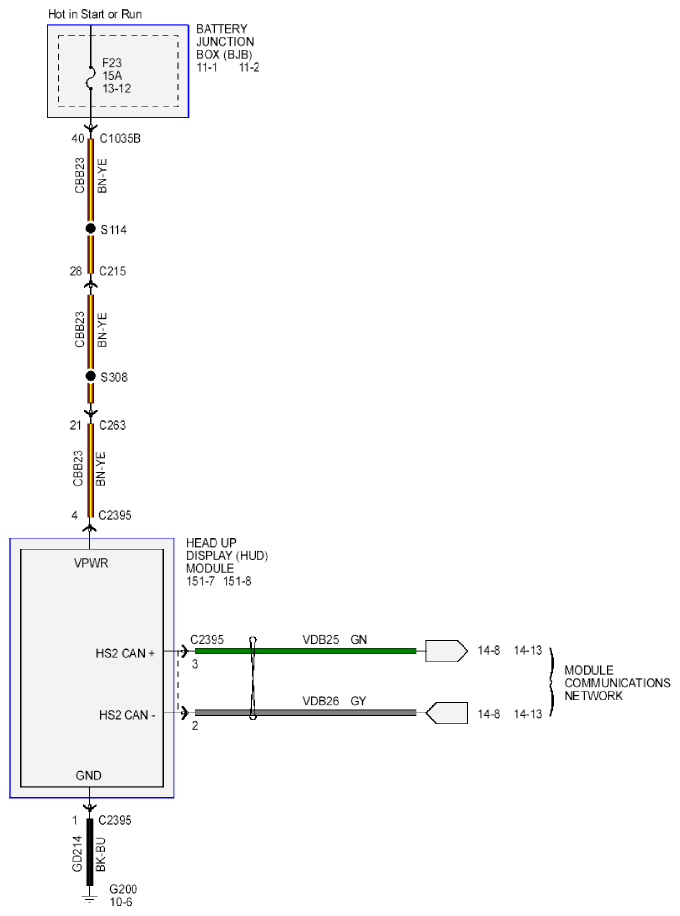

Fig 3: Vehicle Emergency Messaging System With Blind Spot Information System (BLIS)® - Wiring Diagram (3 Of 4)

Courtesy of FORD MOTOR CO.

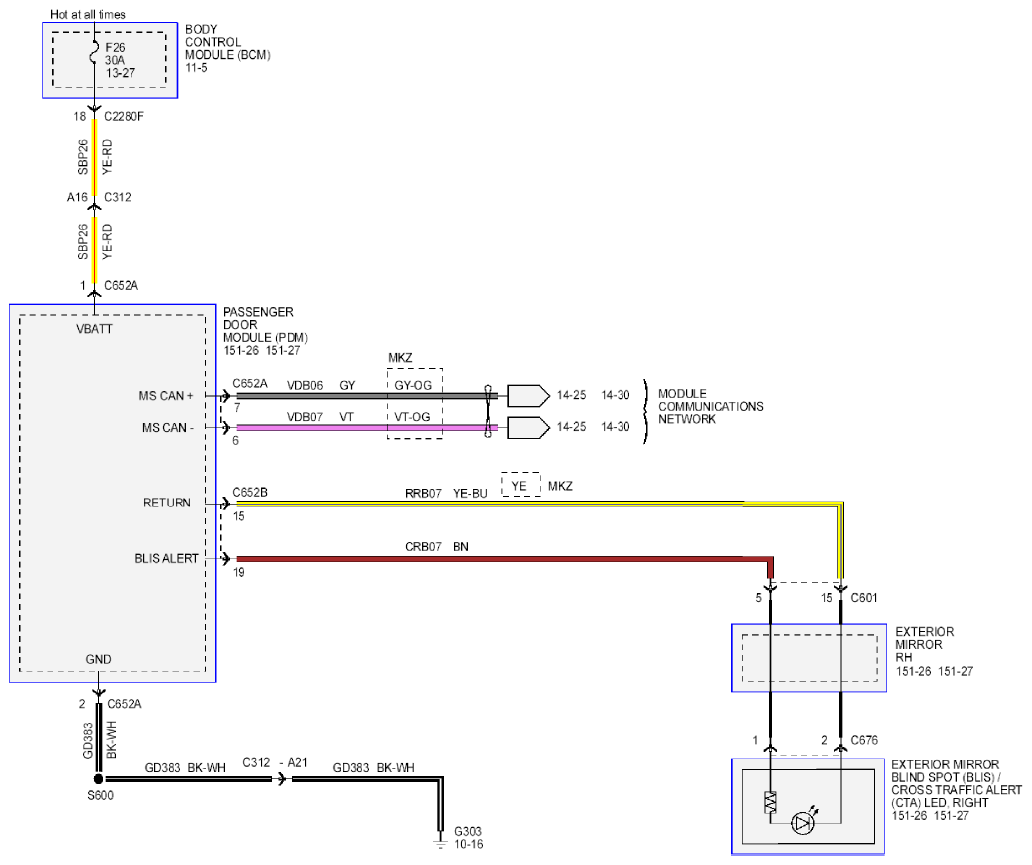

Fig 4: Vehicle Emergency Messaging System With Blind Spot Information System (BLIS)® - Wiring Diagram (4 Of 4)

Courtesy of FORD MOTOR CO.
