Fusion Titanium Hybrid
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Vehicle Dynamic Systems
>>
Notes
Vehicle Dynamic Systems: Notes

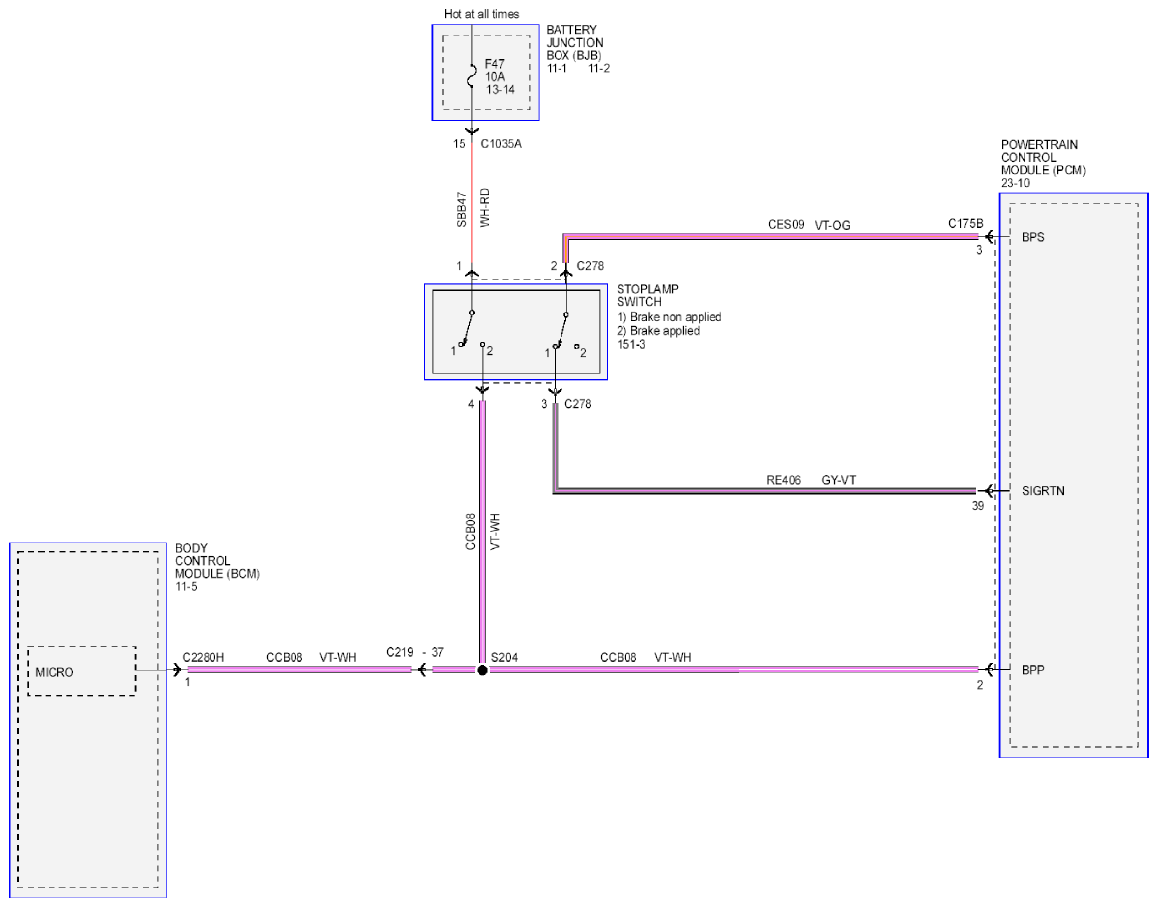

Fig 1: Vehicle Dynamic Systems - Wiring Diagram (1 Of 5)
Courtesy of FORD MOTOR CO.

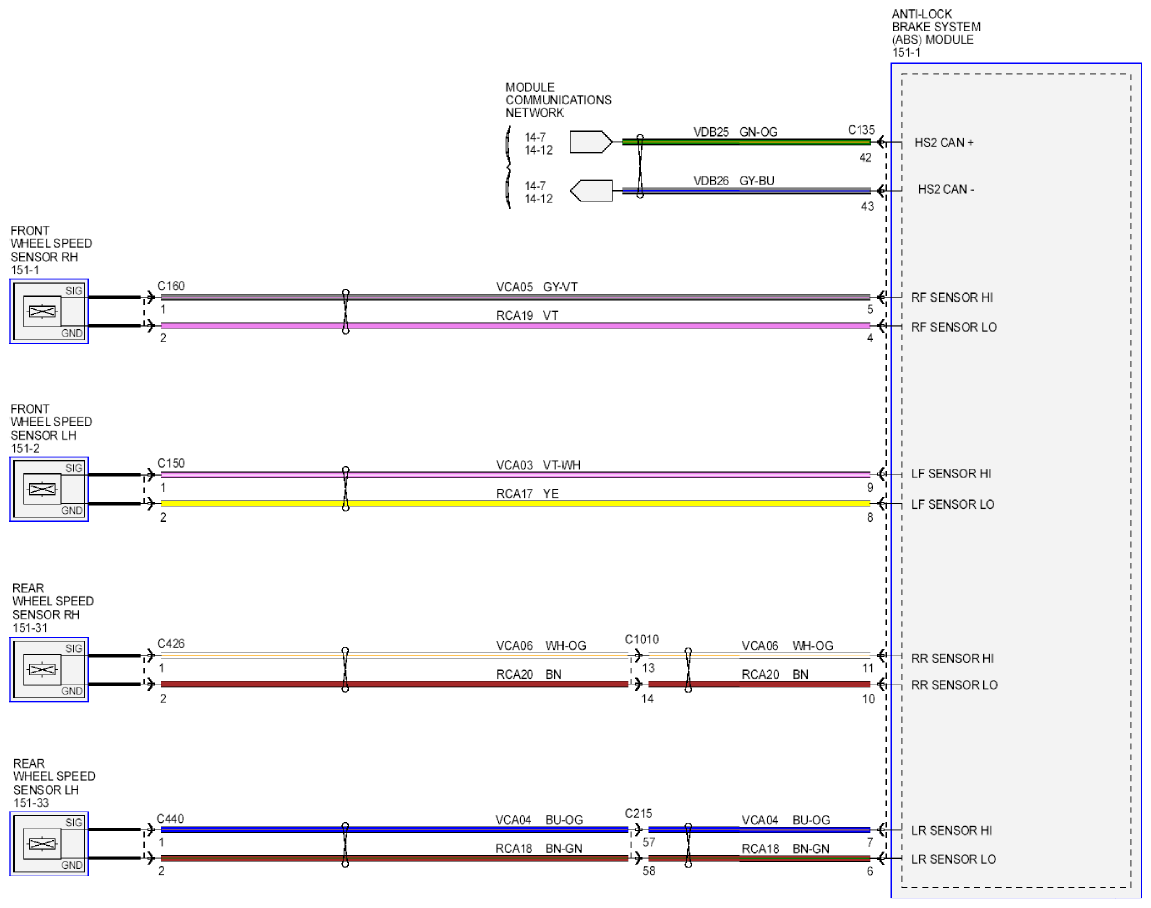

Fig 2: Vehicle Dynamic Systems - Wiring Diagram (2 Of 5)
Courtesy of FORD MOTOR CO.

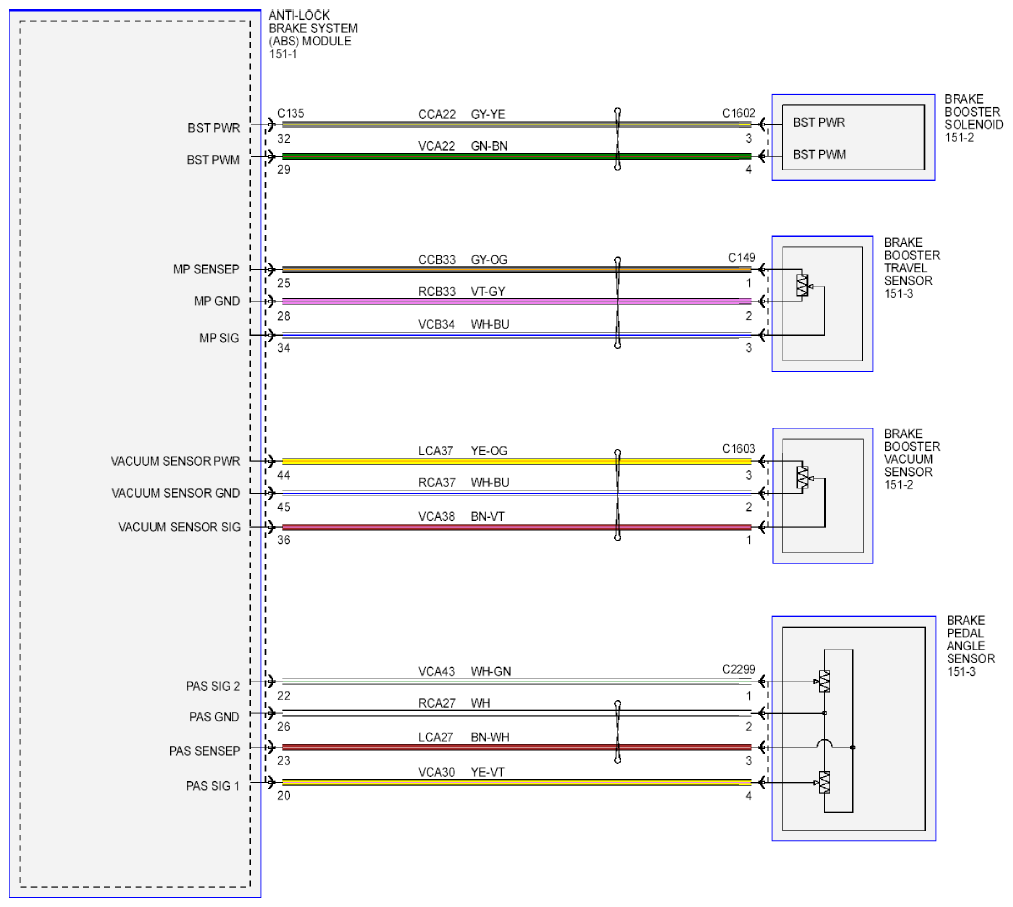

Fig 3: Vehicle Dynamic Systems - Wiring Diagram (3 Of 5)
Courtesy of FORD MOTOR CO.

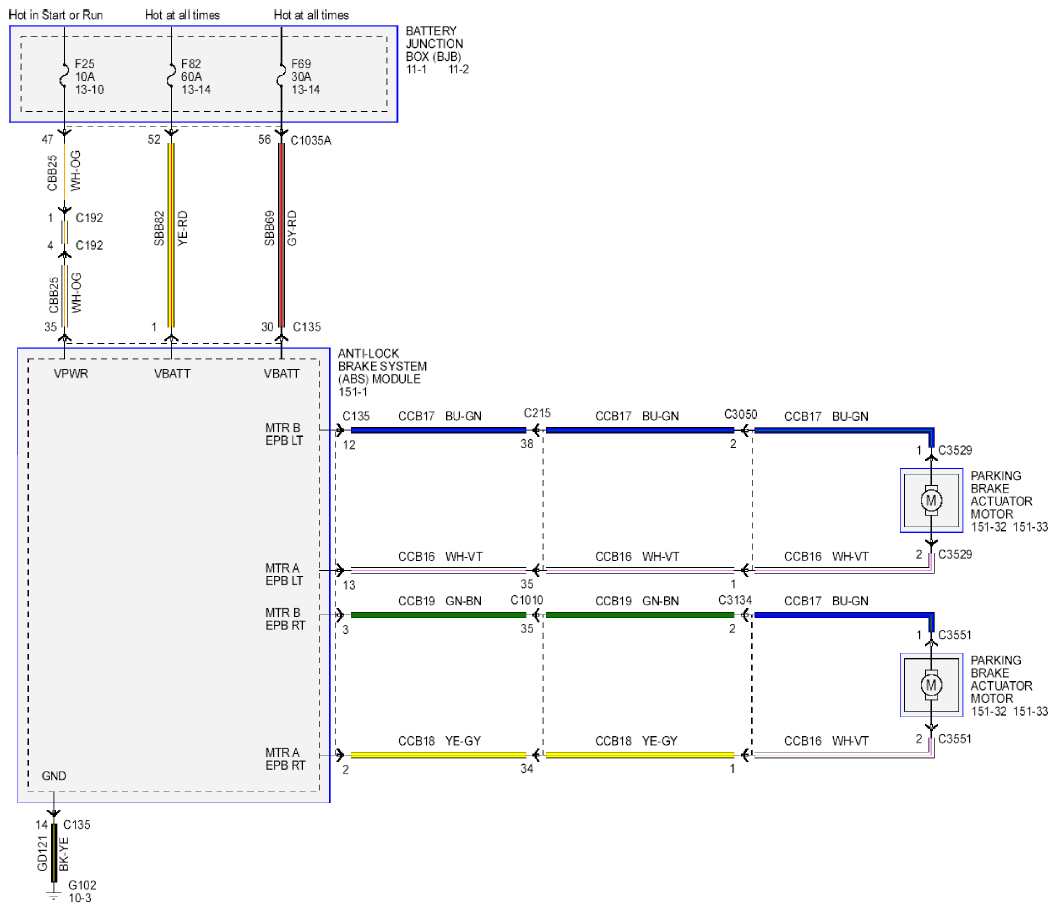

Fig 4: Vehicle Dynamic Systems - Wiring Diagram (4 Of 5)
Courtesy of FORD MOTOR CO.

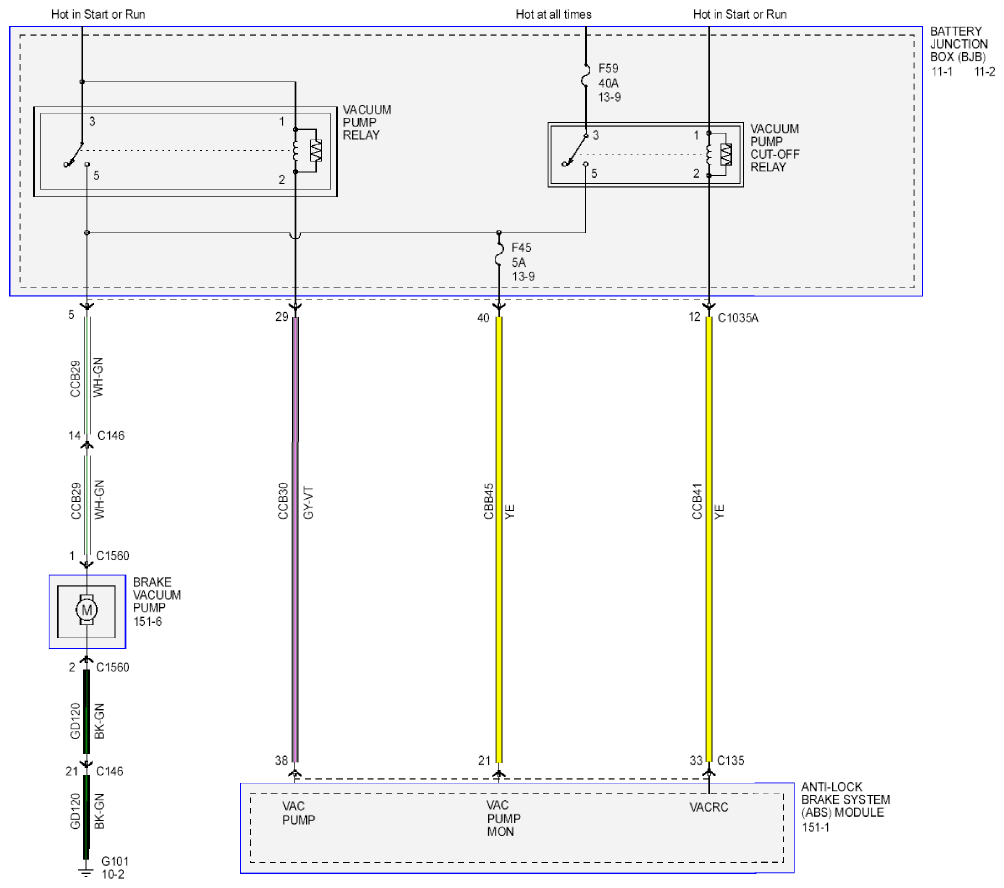

Fig 5: Vehicle Dynamic Systems - Wiring Diagram (5 Of 52)
Courtesy of FORD MOTOR CO.
