Vehicle Dynamic Systems: MKZ

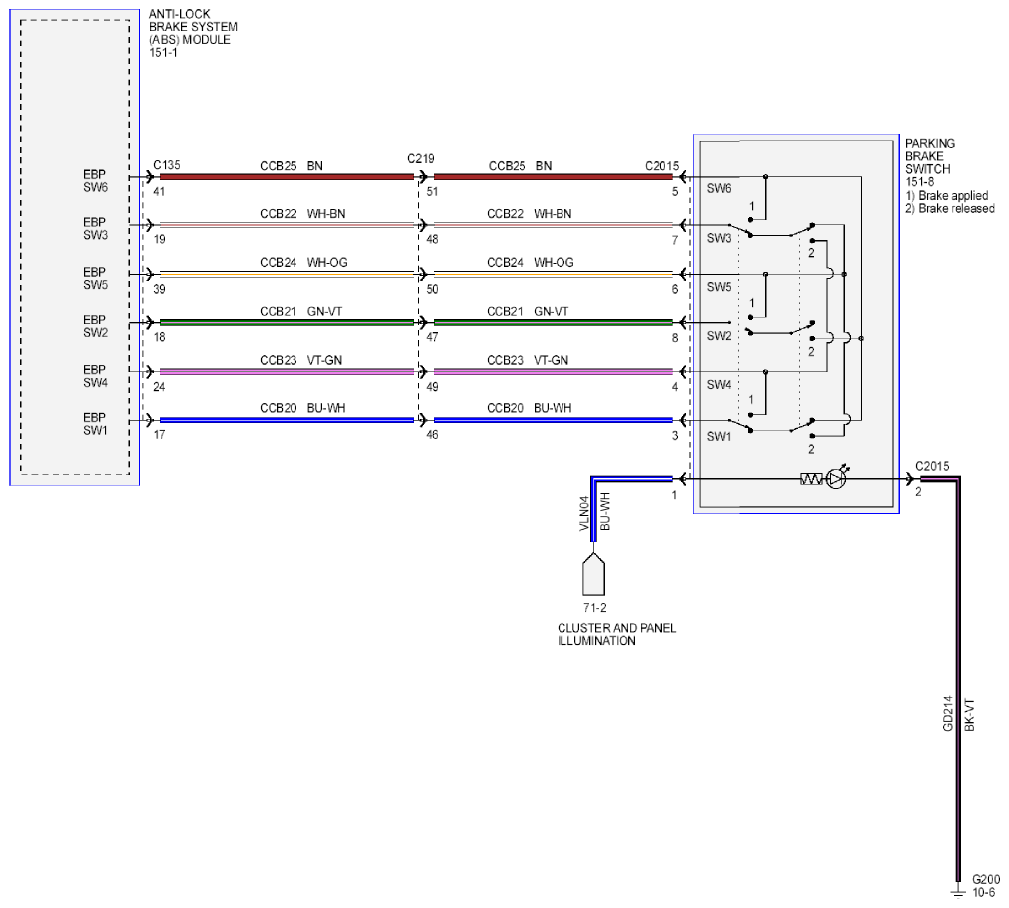

Fig 1: Vehicle Dynamic Systems - MKZ - Wiring Diagram

G09269439

Courtesy of FORD MOTOR CO.
