Vehicle Dynamic Systems: Fusion

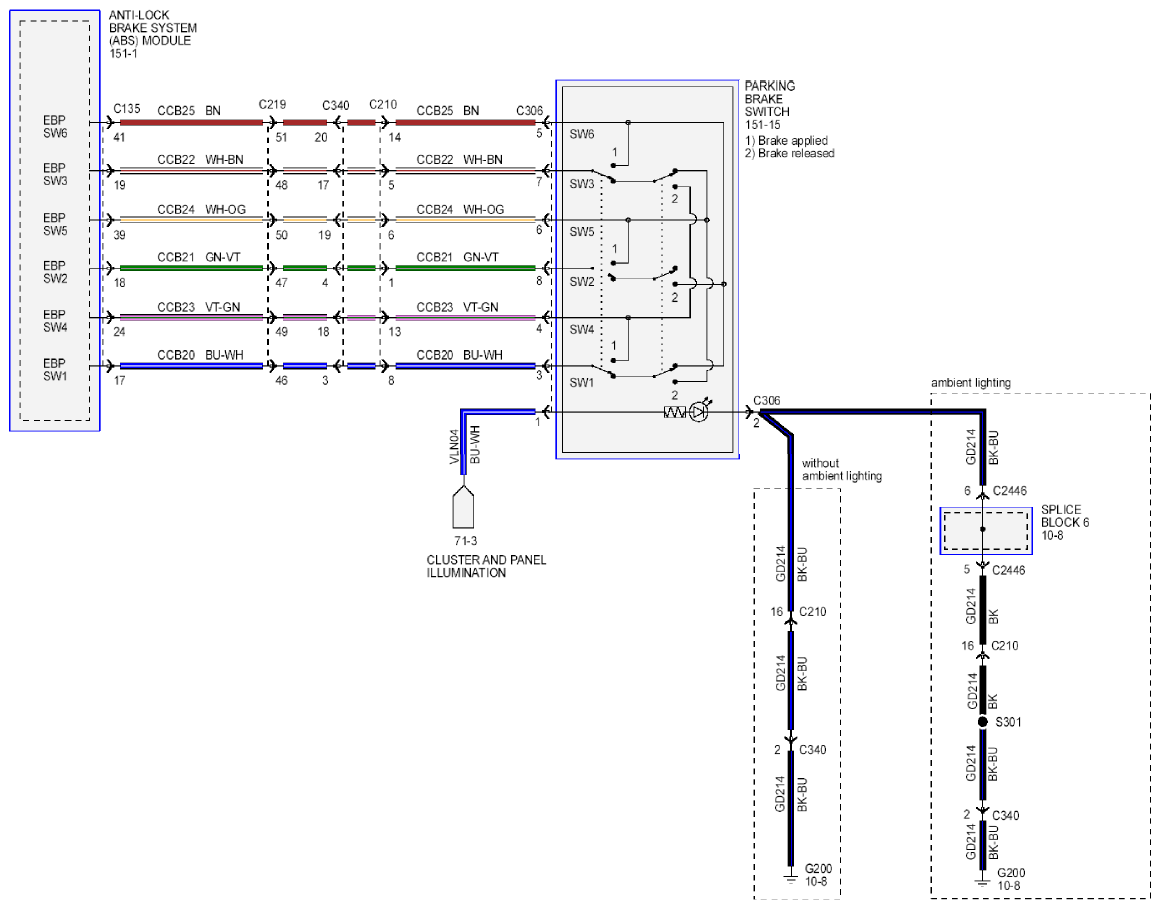

Fig 1: Vehicle Dynamic Systems - Fusion - Wiring Diagram

G09269438

Courtesy of FORD MOTOR CO.
