Transmission Controls: PHEV

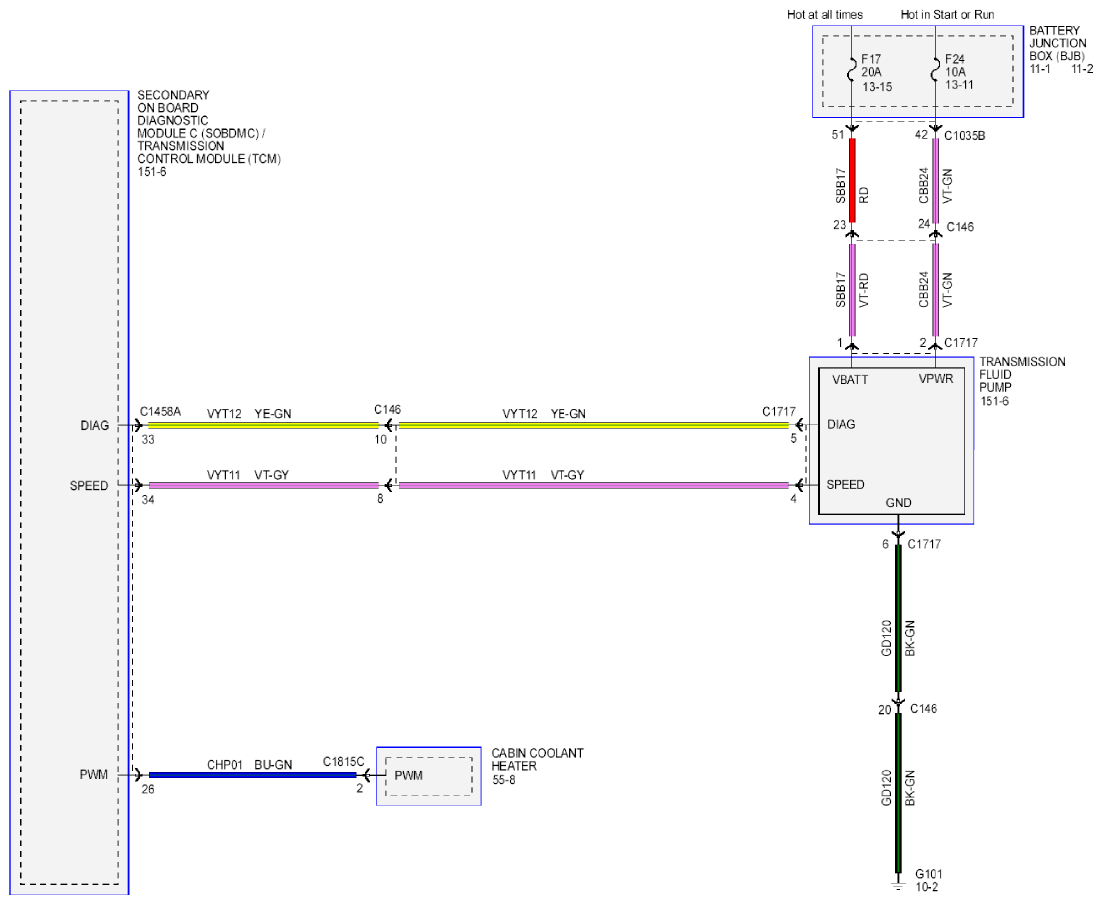

Fig 1: Transmission Controls - Wiring Diagram - PHEV (1 Of 2)
G09269415Courtesy of FORD MOTOR CO.

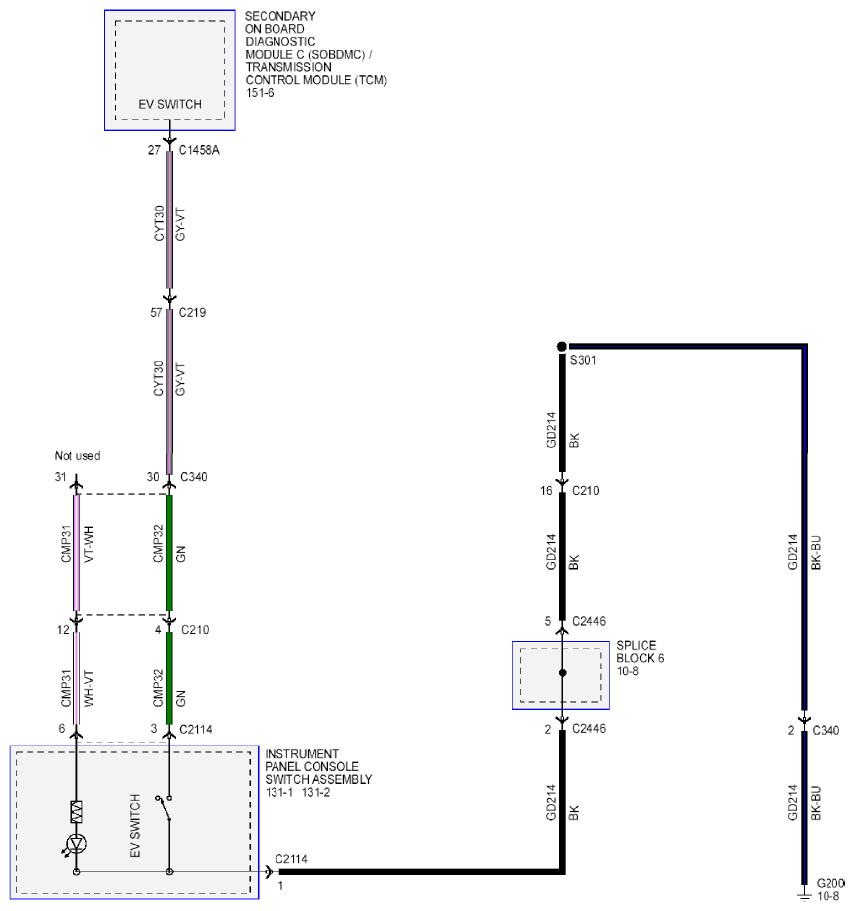

Fig 2: Transmission Controls - Wiring Diagram - PHEV (2 Of 2)
G09269416Courtesy of FORD MOTOR CO.
