Transmission Controls: Notes

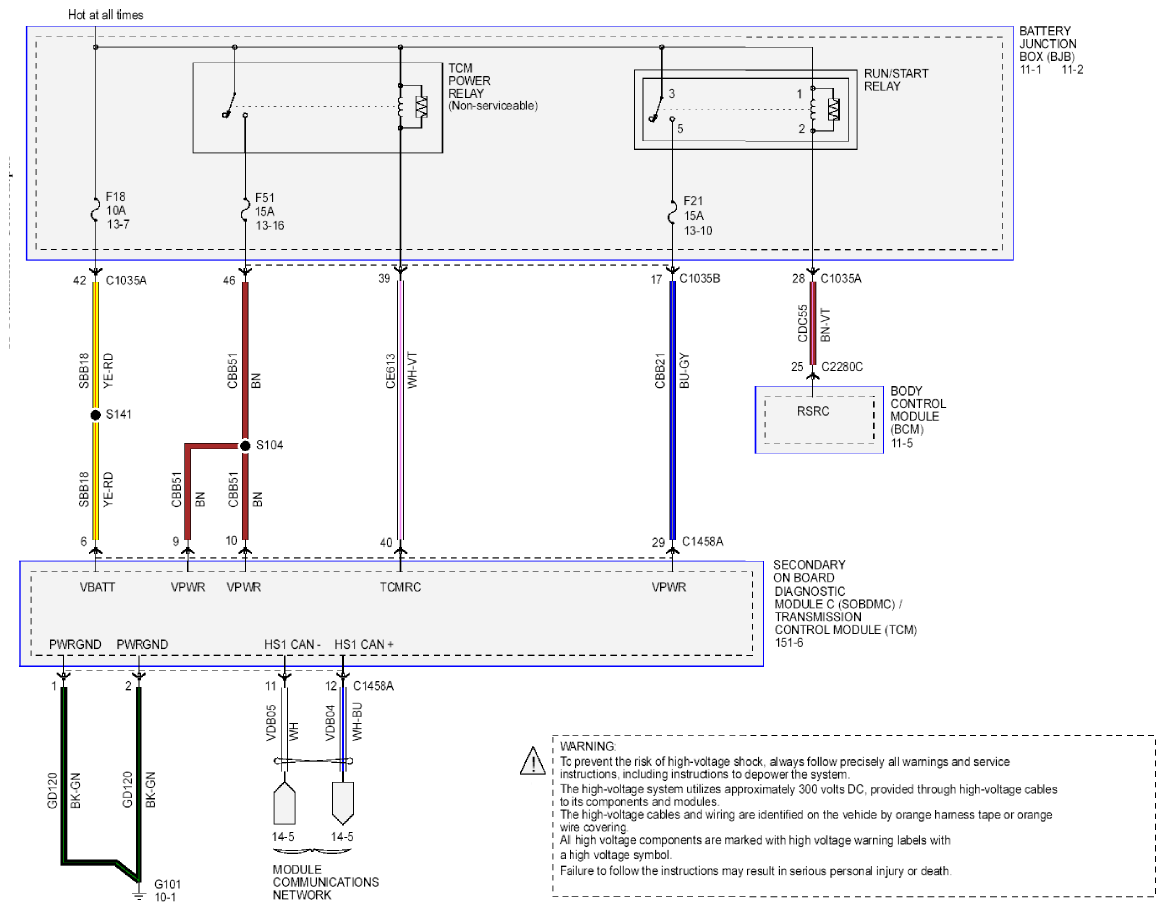

Fig 1: Transmission Controls - Wiring Diagram (1 Of 4)
Courtesy of FORD MOTOR CO.

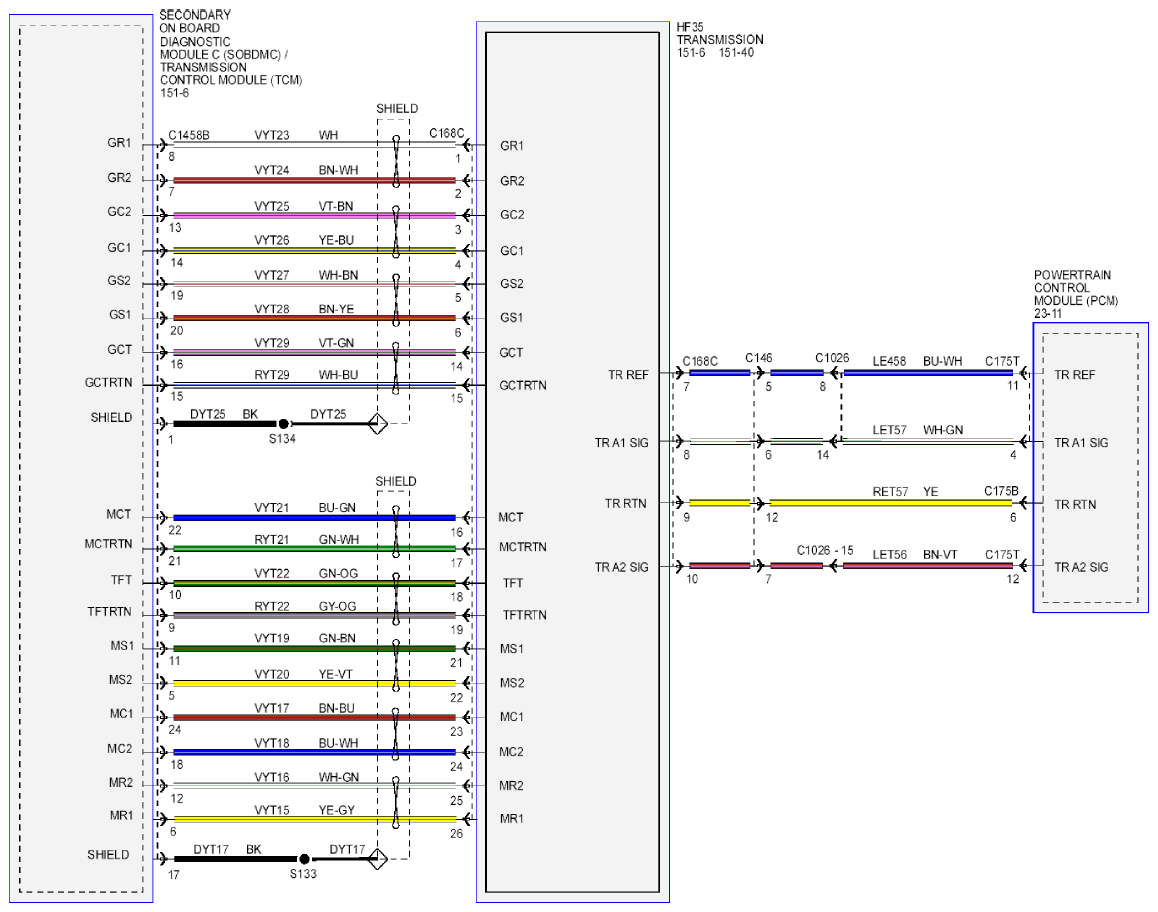

Fig 2: Transmission Controls - Wiring Diagram (2 Of 4)
Courtesy of FORD MOTOR CO.

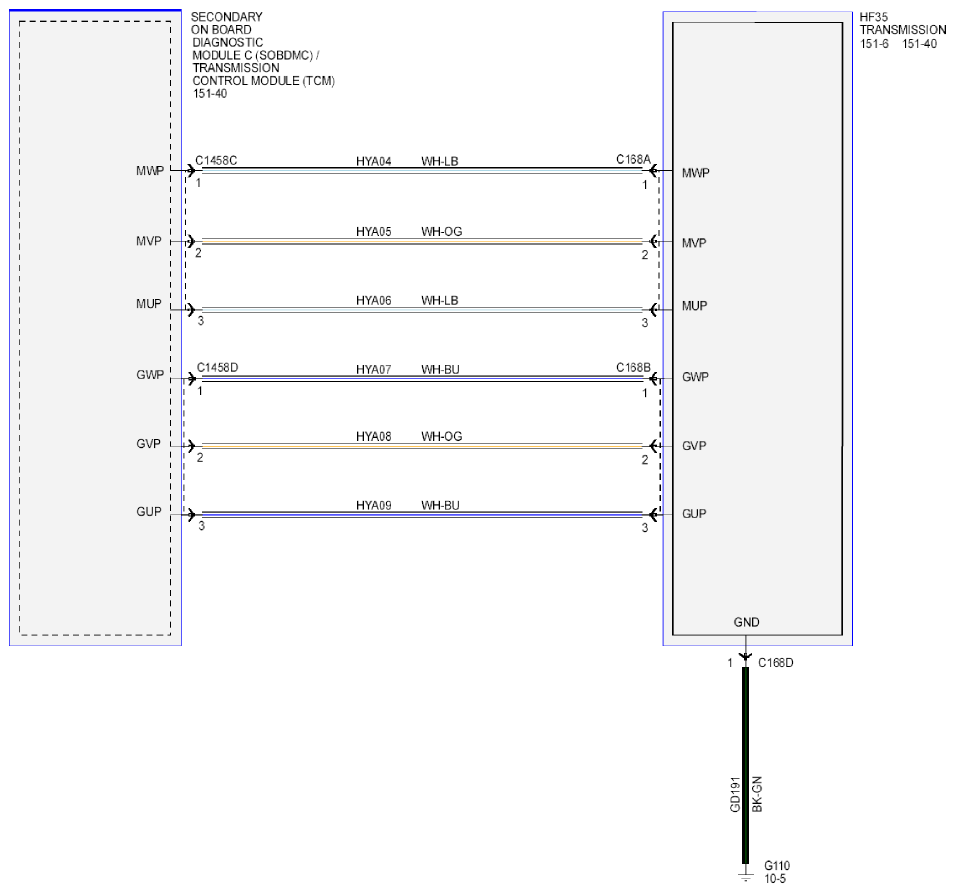

Fig 3: Transmission Controls - Wiring Diagram (3 Of 4)
Courtesy of FORD MOTOR CO.

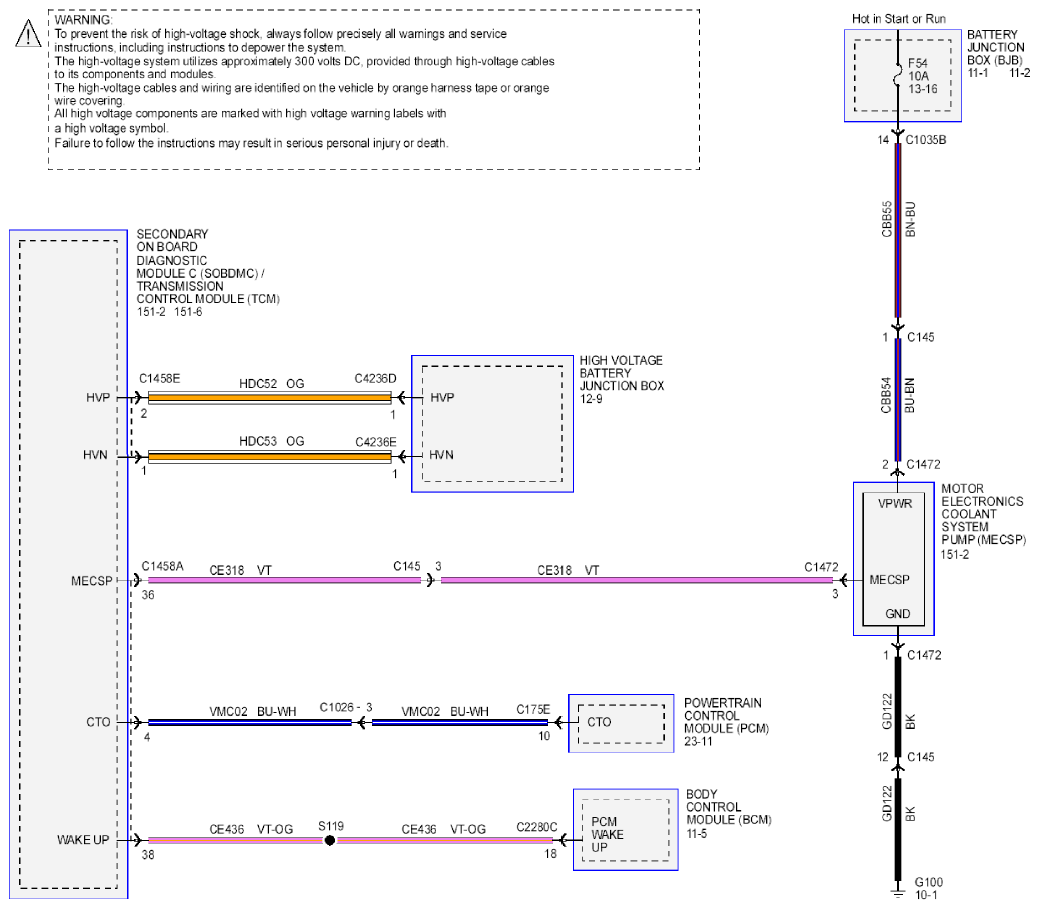

Fig 4: Transmission Controls - Wiring Diagram (4 Of 4)
Courtesy of FORD MOTOR CO.
