Fusion Titanium Hybrid
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Transmission Controls
>>
MKZ
Transmission Controls: MKZ

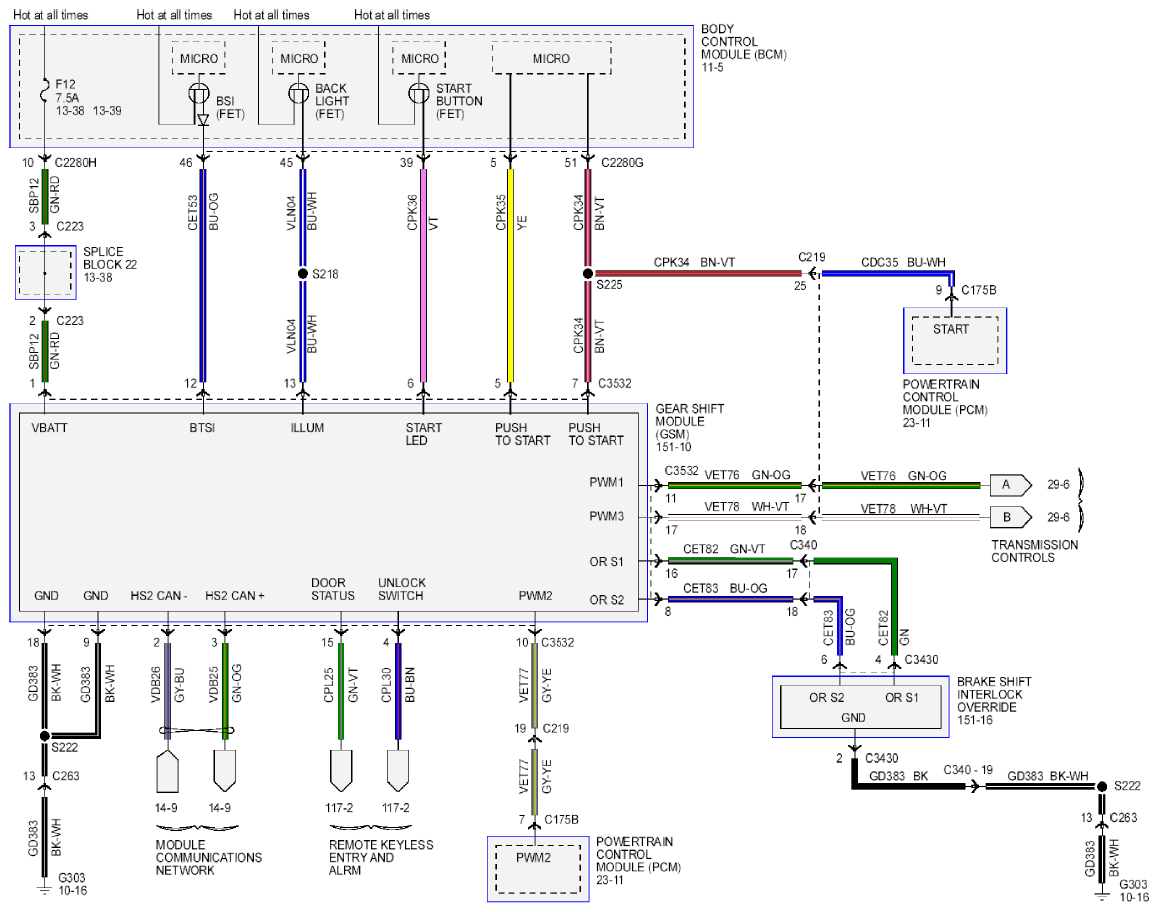

Fig 1: Transmission Controls - Wiring Diagram - MKZ (1 Of 2)
Courtesy of FORD MOTOR CO.

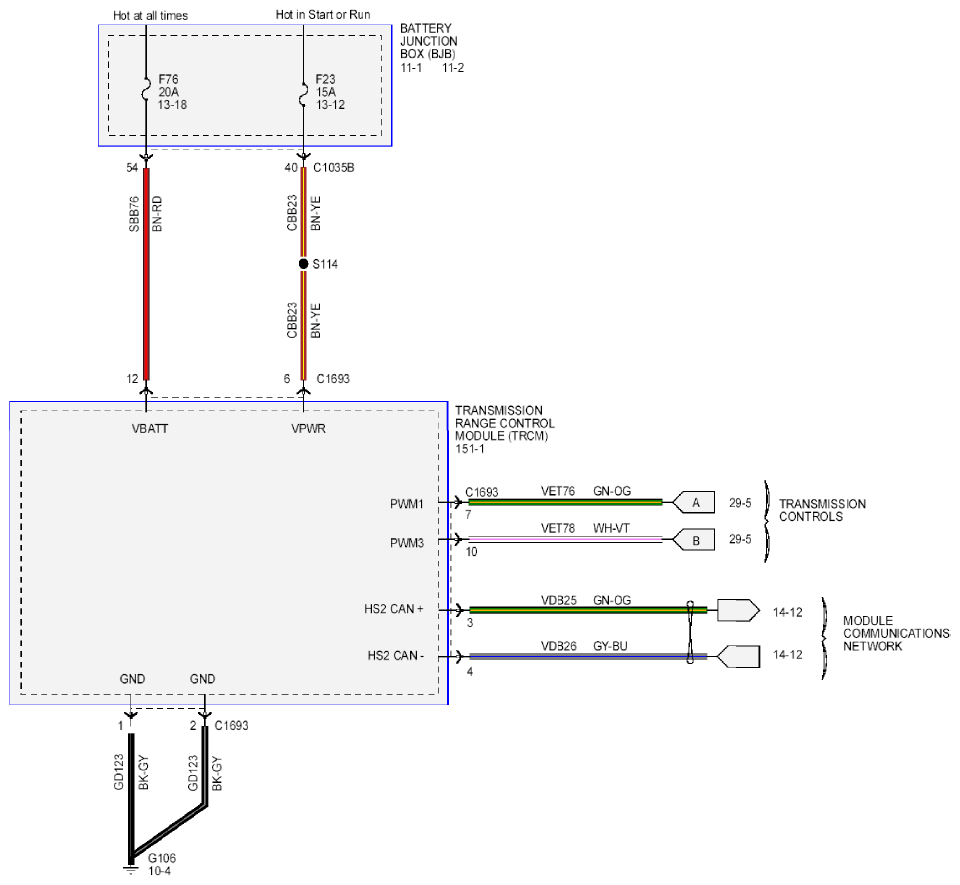

Fig 2: Transmission Controls - Wiring Diagram - MKZ (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
