Fusion Titanium Hybrid
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Tire Pressure Monitor System
Tire Pressure Monitor System

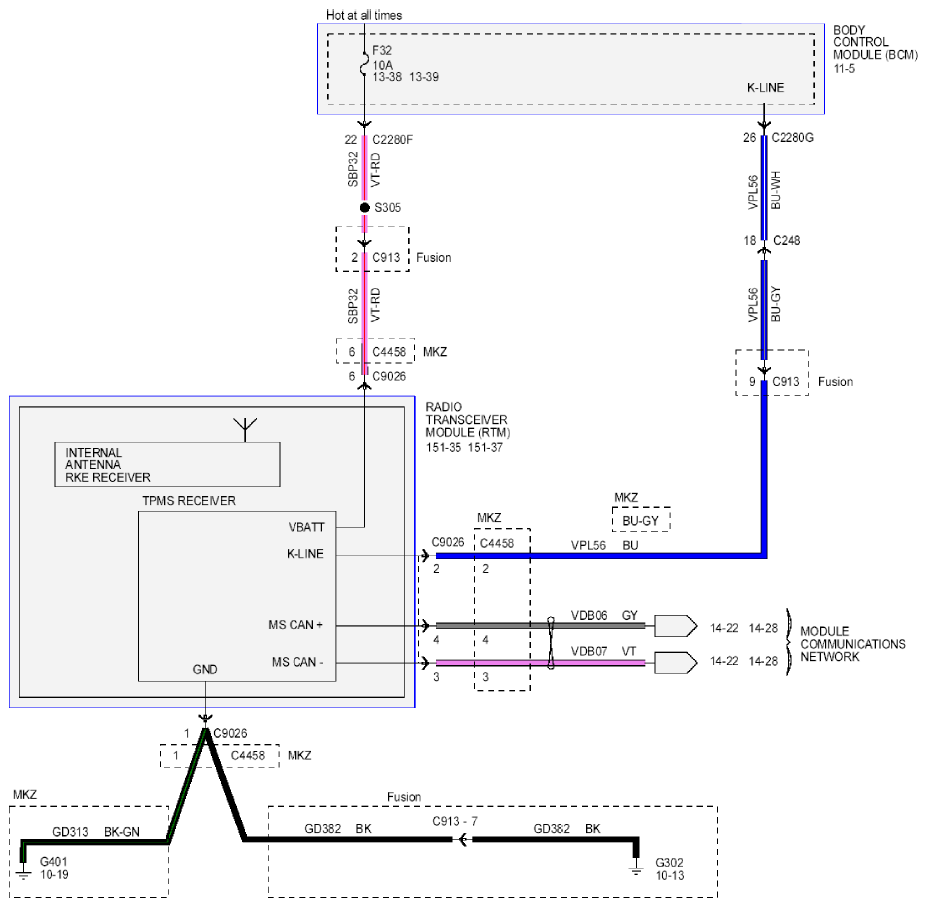

Fig 1: Tire Pressure Monitor System - Wiring Diagram
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
