Without Push Button Start

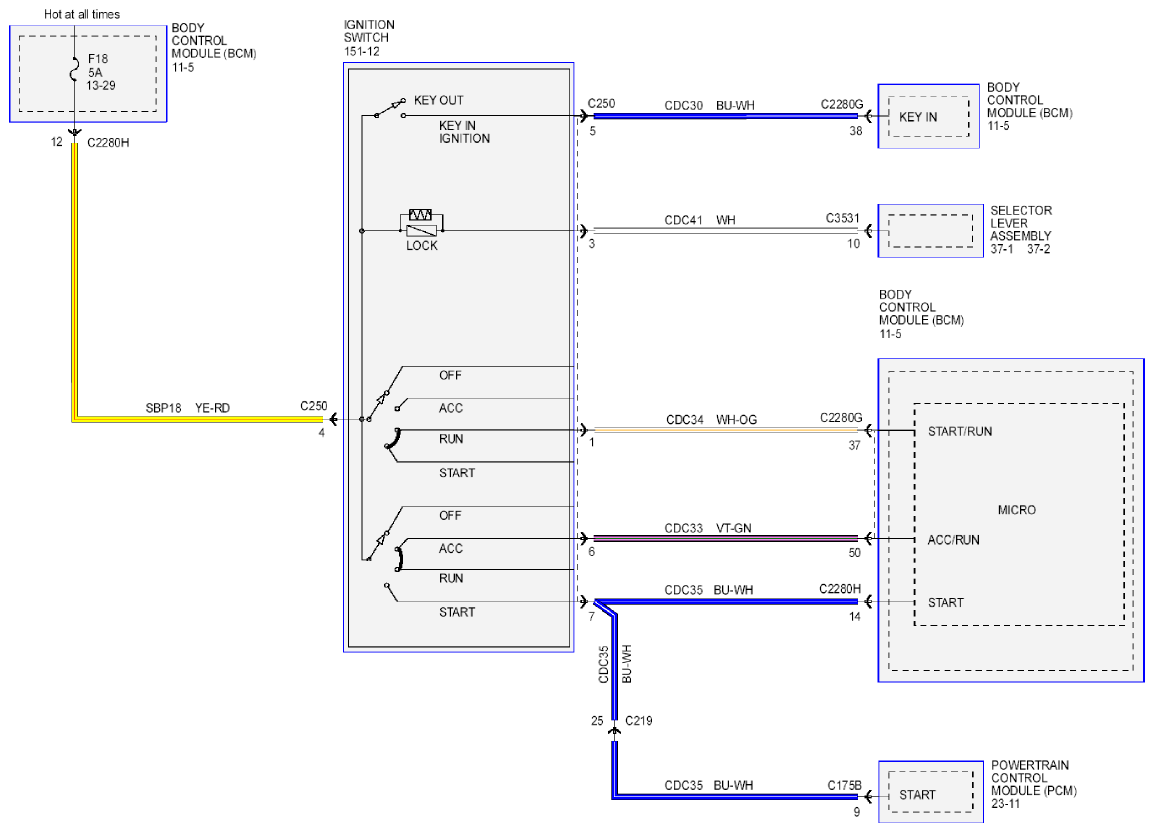

Fig 1: Starting System - Wiring Diagram (Without Push Button Start)

G09269395

Courtesy of FORD MOTOR CO.
