Starting System: MKZ

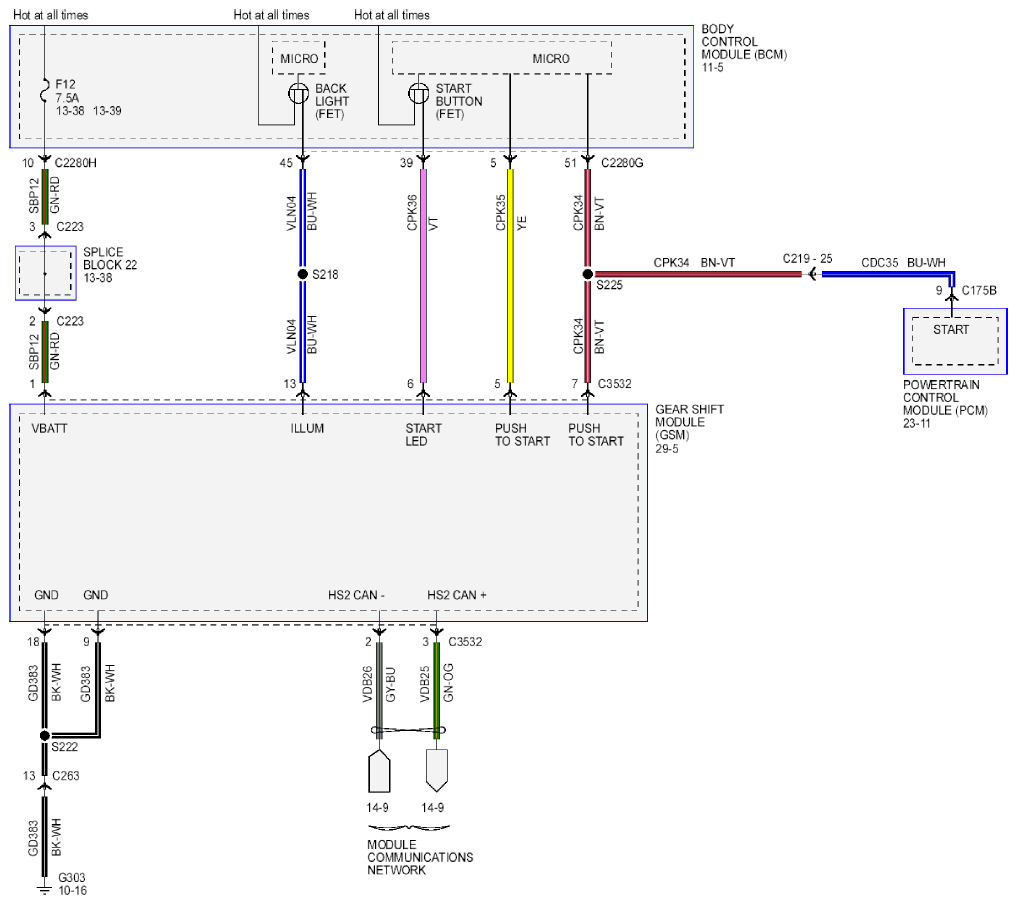

Fig 1: Starting System - Wiring Diagram (MKZ)

G09269397

Courtesy of FORD MOTOR CO.
