Fusion - With Push Button Start

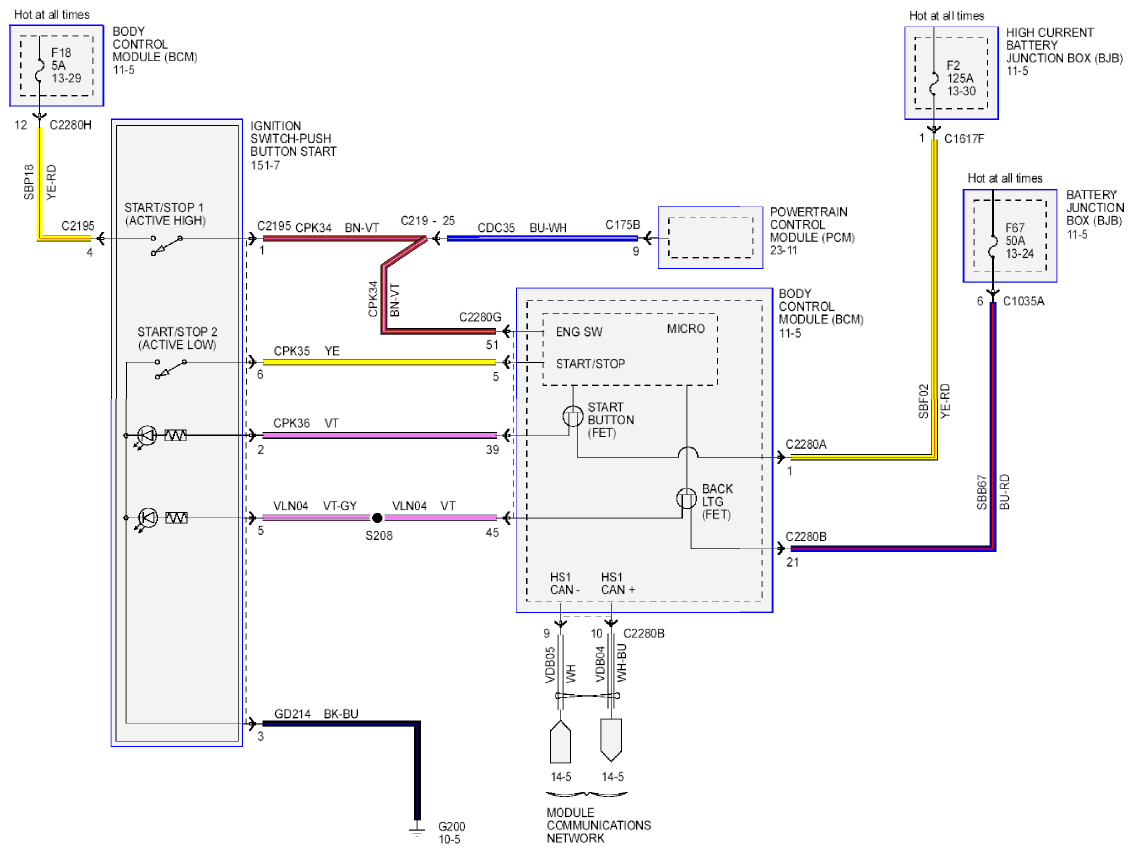

Fig 1: Starting System - Wiring Diagram (Fusion With Push Button Start)

G09269396

Courtesy of FORD MOTOR CO.
