Fusion - Without Push Button Start

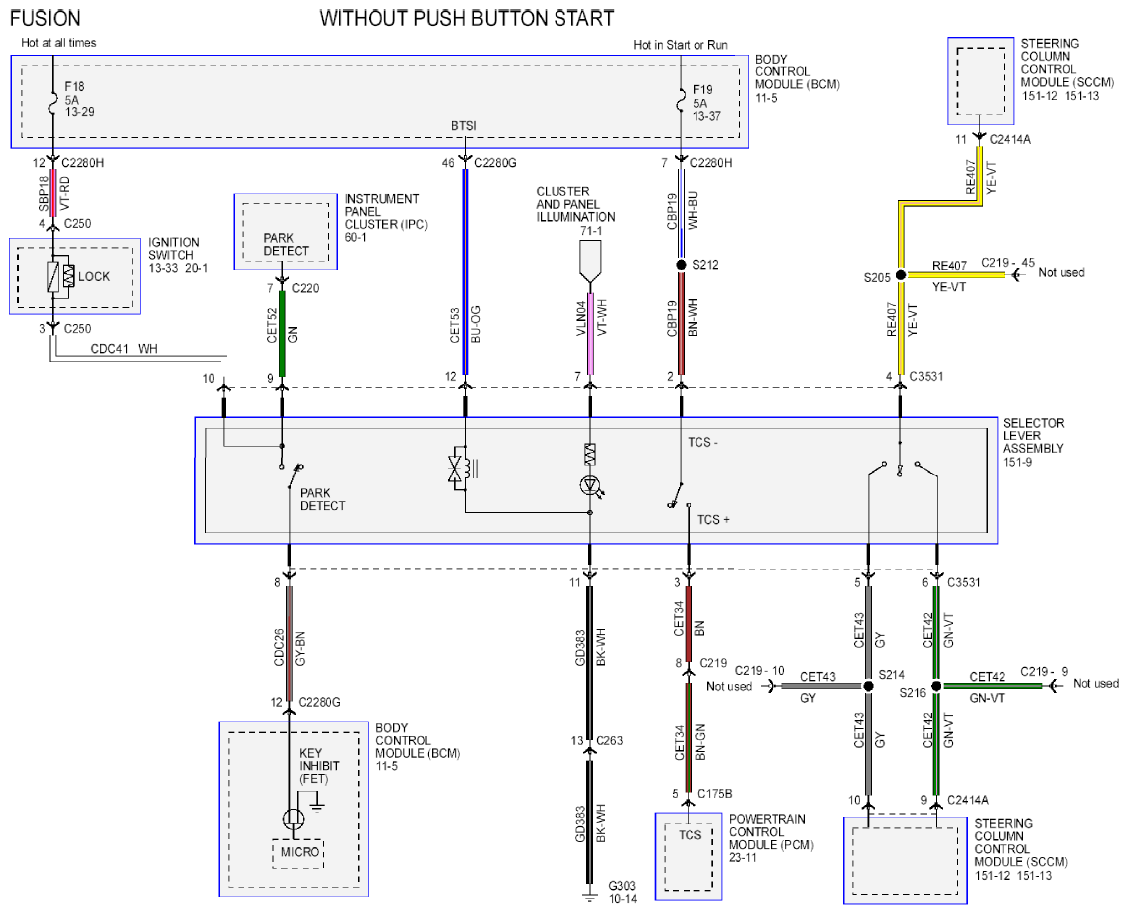

Fig 1: Shift Interlock Fusion Without Push Button Start - Wiring Diagram

G09269428

Courtesy of FORD MOTOR CO.
