Reversing Lamps: Fusion

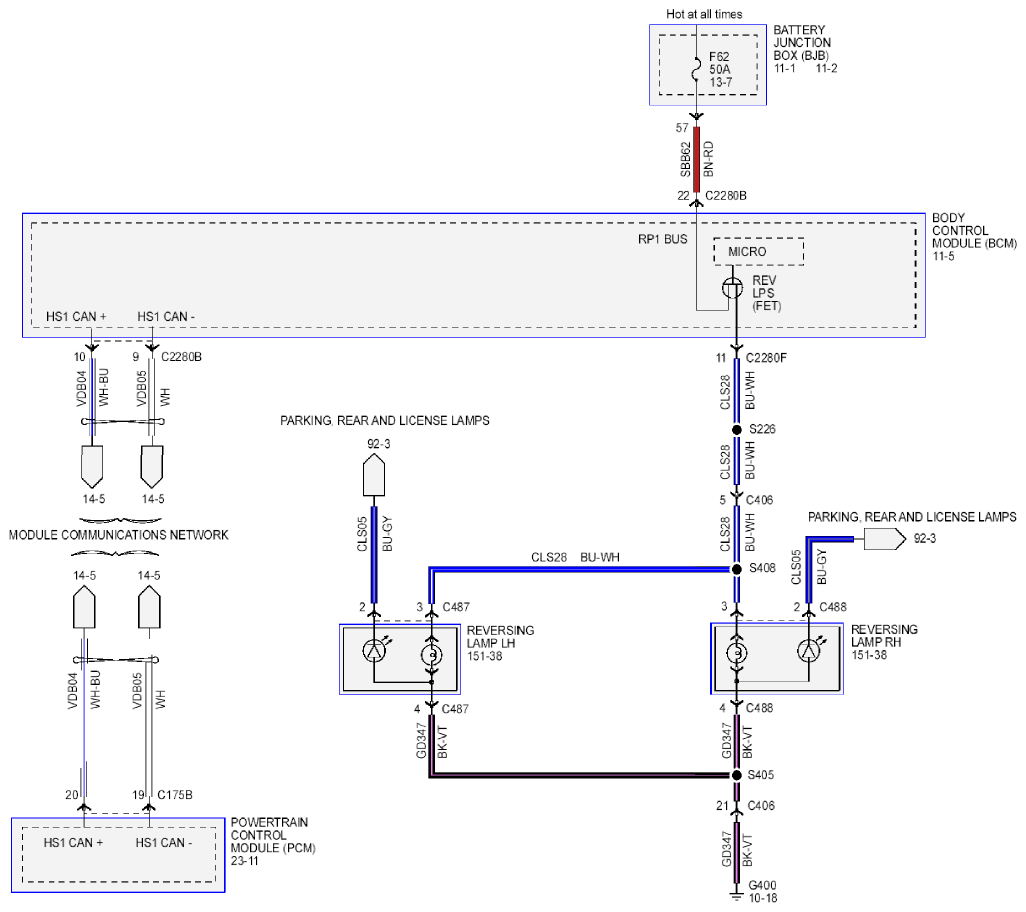

Fig 1: Reversing Lamps (Fusion) - Wiring Diagram

G09269506

Courtesy of FORD MOTOR CO.
