Power Luggage Compartment

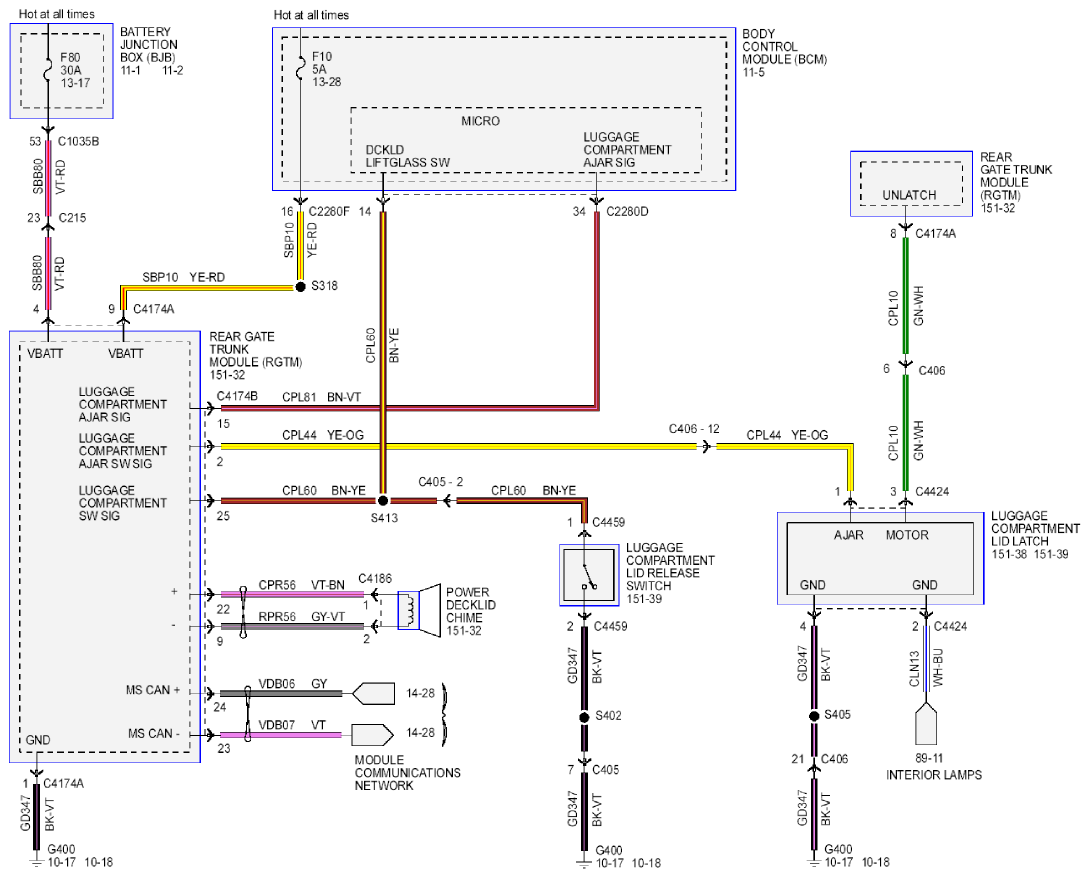

Fig 1: Power Luggage Compartment - Wiring Diagram (1 Of 3)
G09269542Courtesy of FORD MOTOR CO.

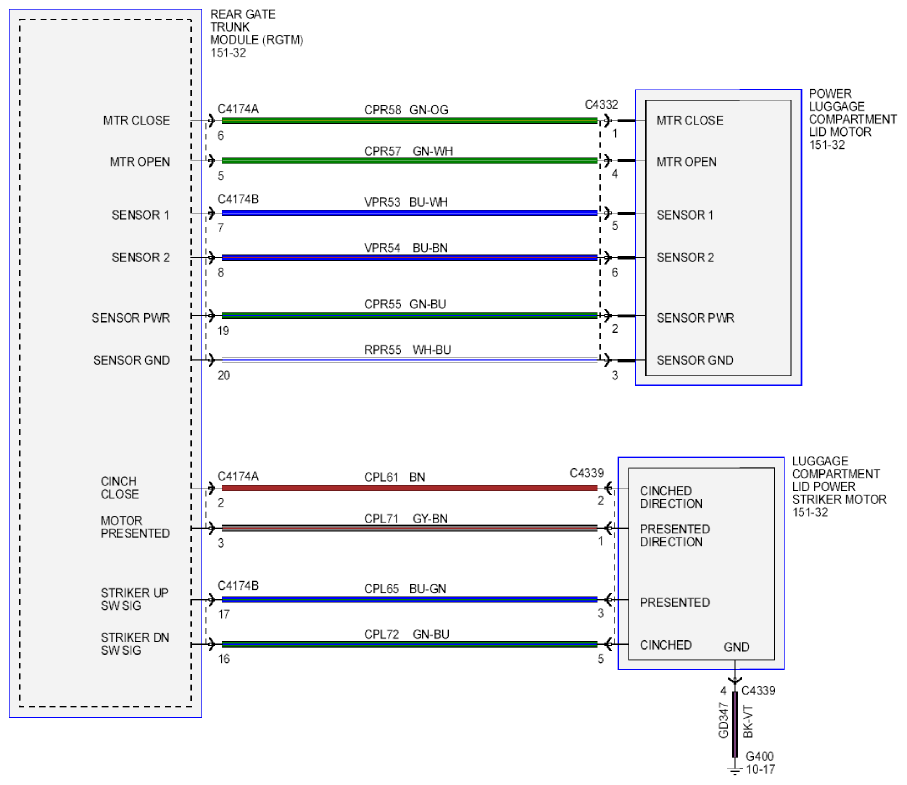

Fig 2: Power Luggage Compartment - Wiring Diagram (2 Of 3)
G09269543Courtesy of FORD MOTOR CO.

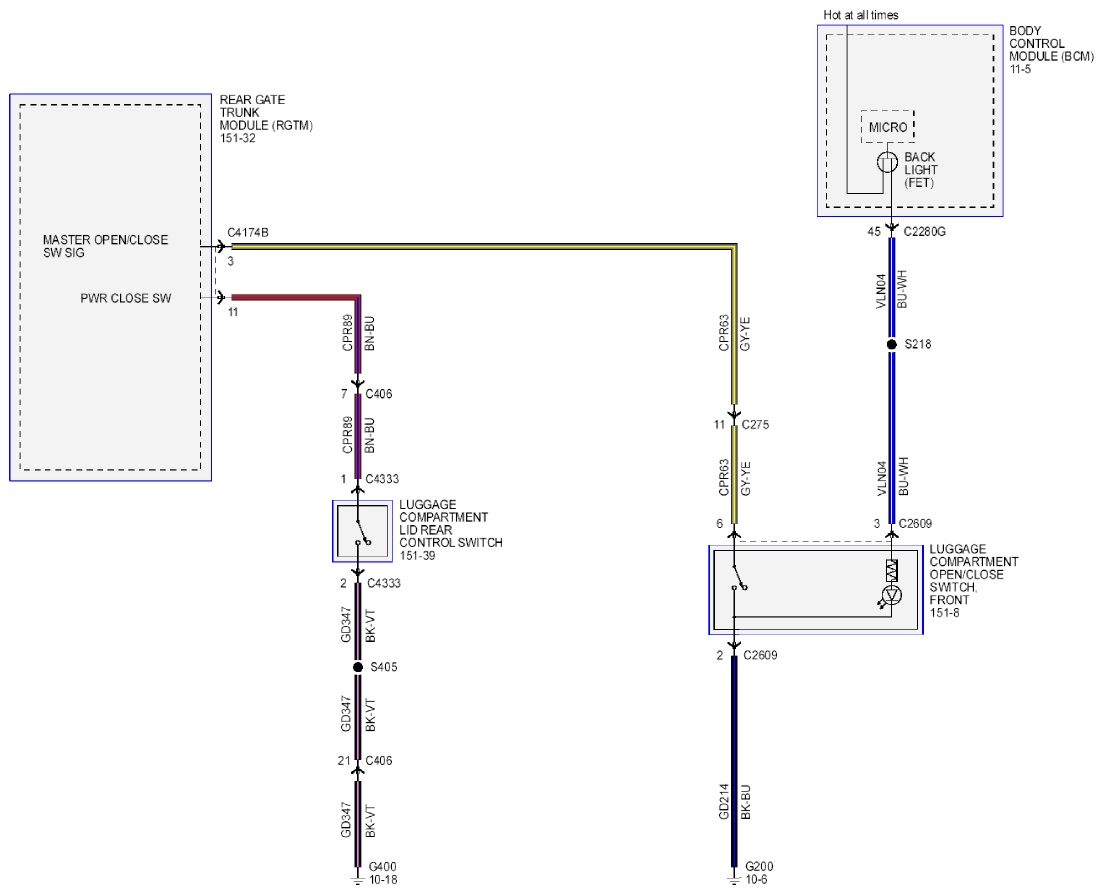

Fig 3: Power Luggage Compartment - Wiring Diagram (3 Of 3)
G09269544Courtesy of FORD MOTOR CO.
