Remote Keyless Entry And Alarm
>>
Notes
Remote Keyless Entry And Alarm: Notes

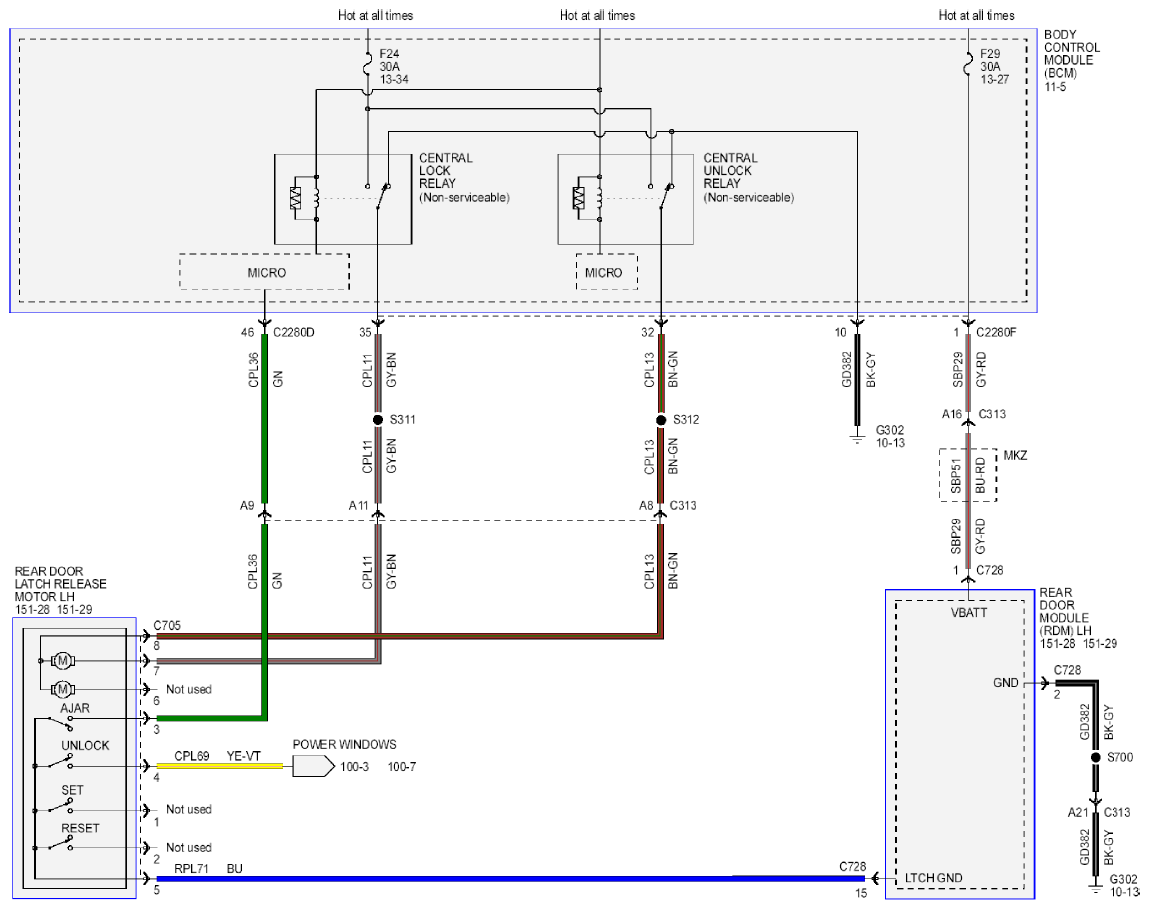

Fig 1: Remote Keyless Entry And Alarm - Wiring Diagram (1 Of 6)
Courtesy of FORD MOTOR CO.

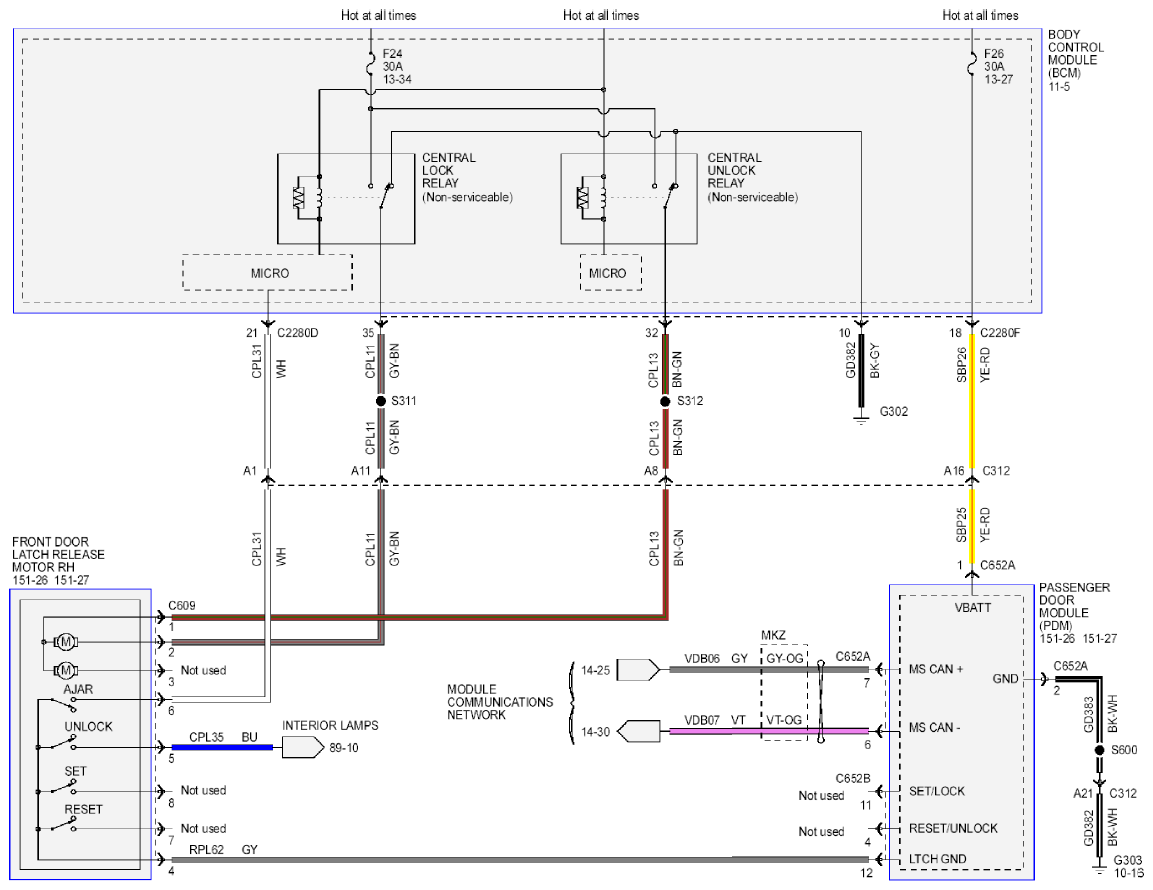

Fig 2: Remote Keyless Entry And Alarm - Wiring Diagram (2 Of 6)
Courtesy of FORD MOTOR CO.

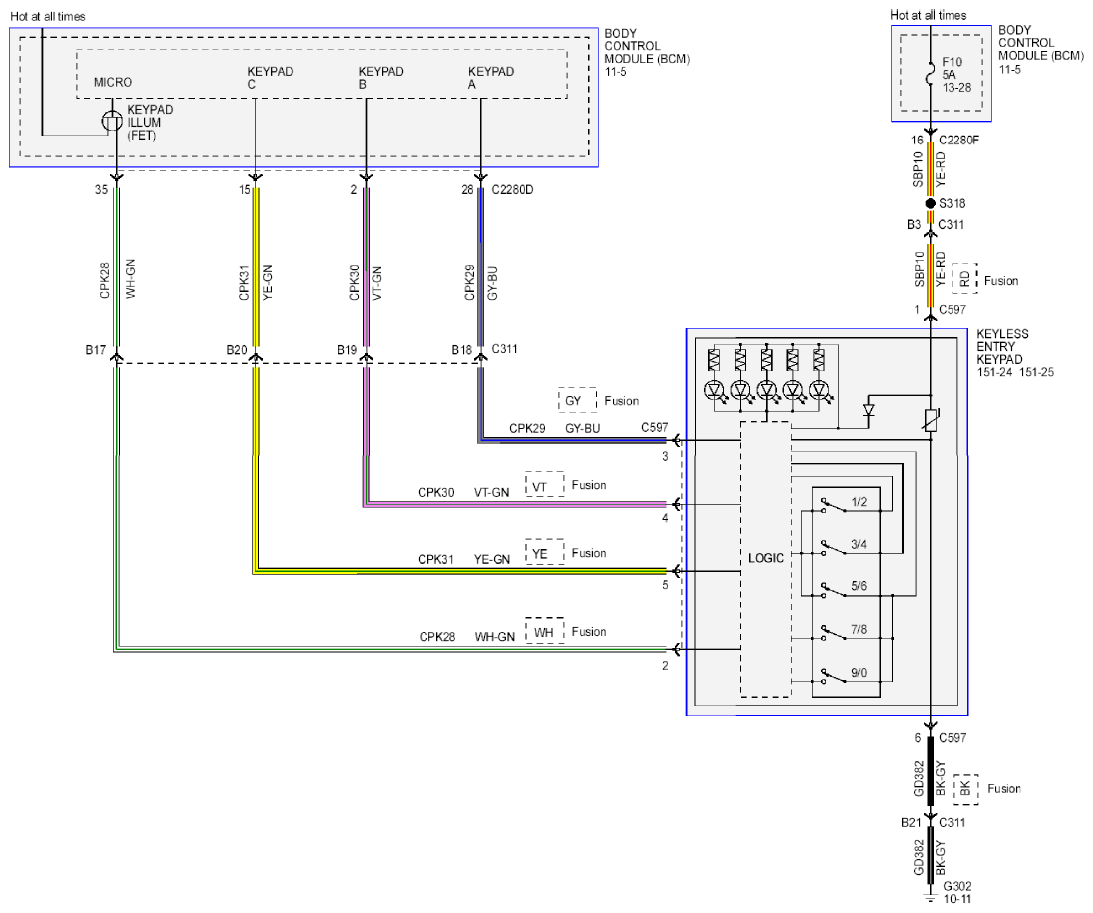

Fig 3: Remote Keyless Entry And Alarm - Wiring Diagram (3 Of 6)
Courtesy of FORD MOTOR CO.

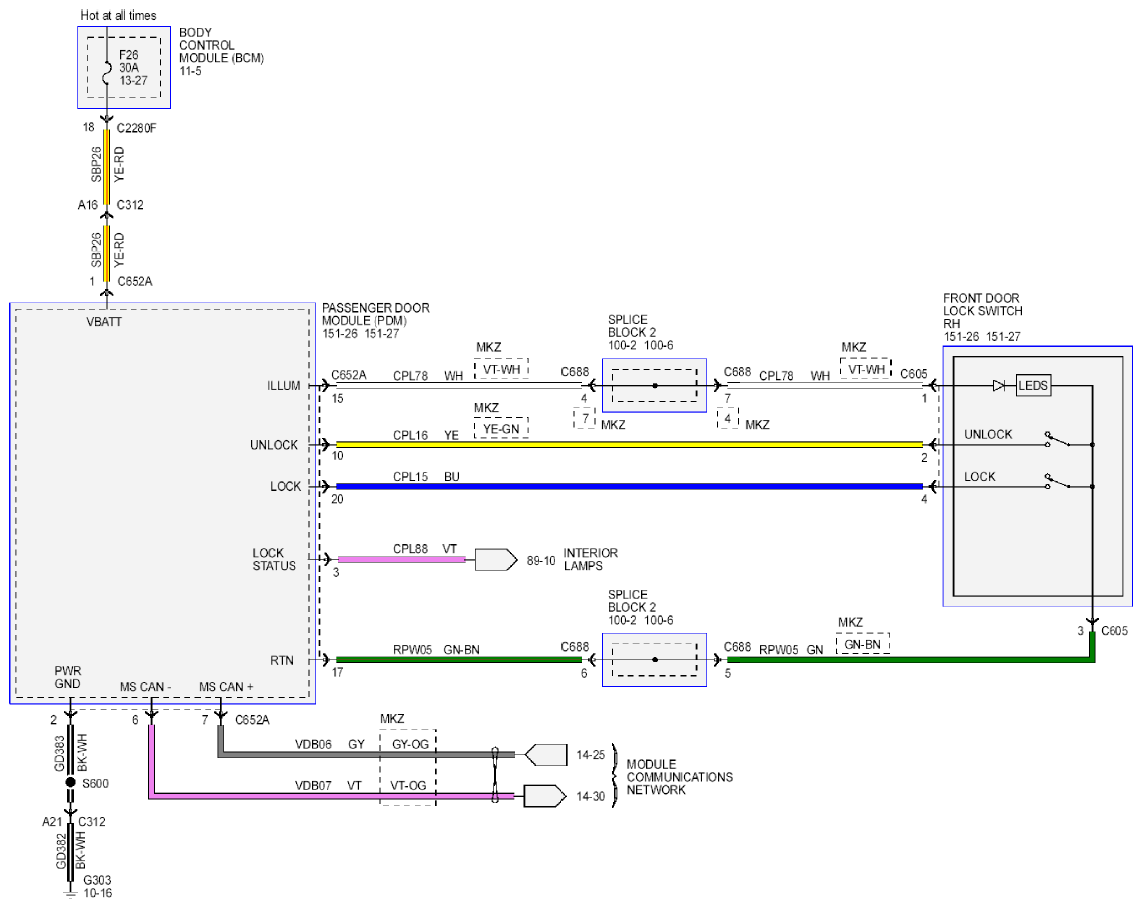

Fig 4: Remote Keyless Entry And Alarm - Wiring Diagram (4 Of 6)
Courtesy of FORD MOTOR CO.

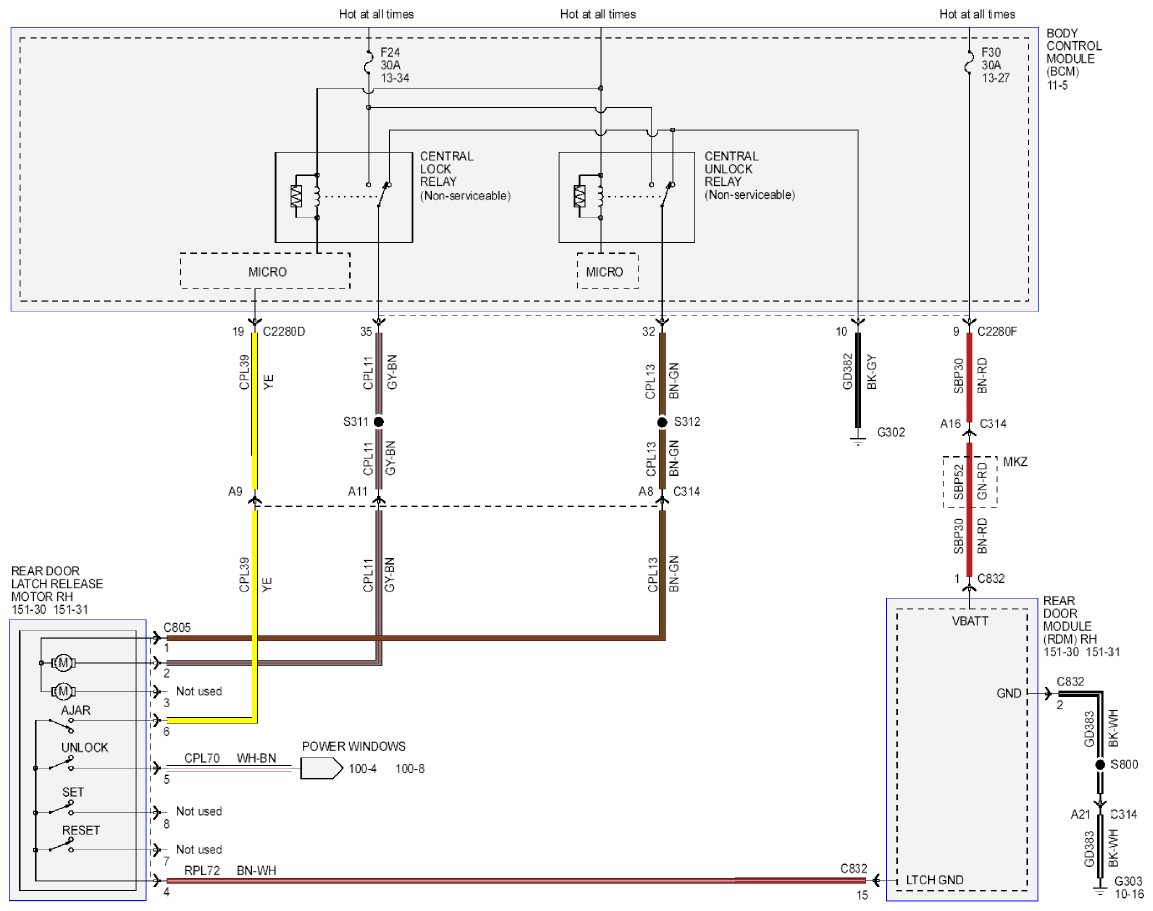

Fig 5: Remote Keyless Entry And Alarm - Wiring Diagram (5 Of 6)
Courtesy of FORD MOTOR CO.

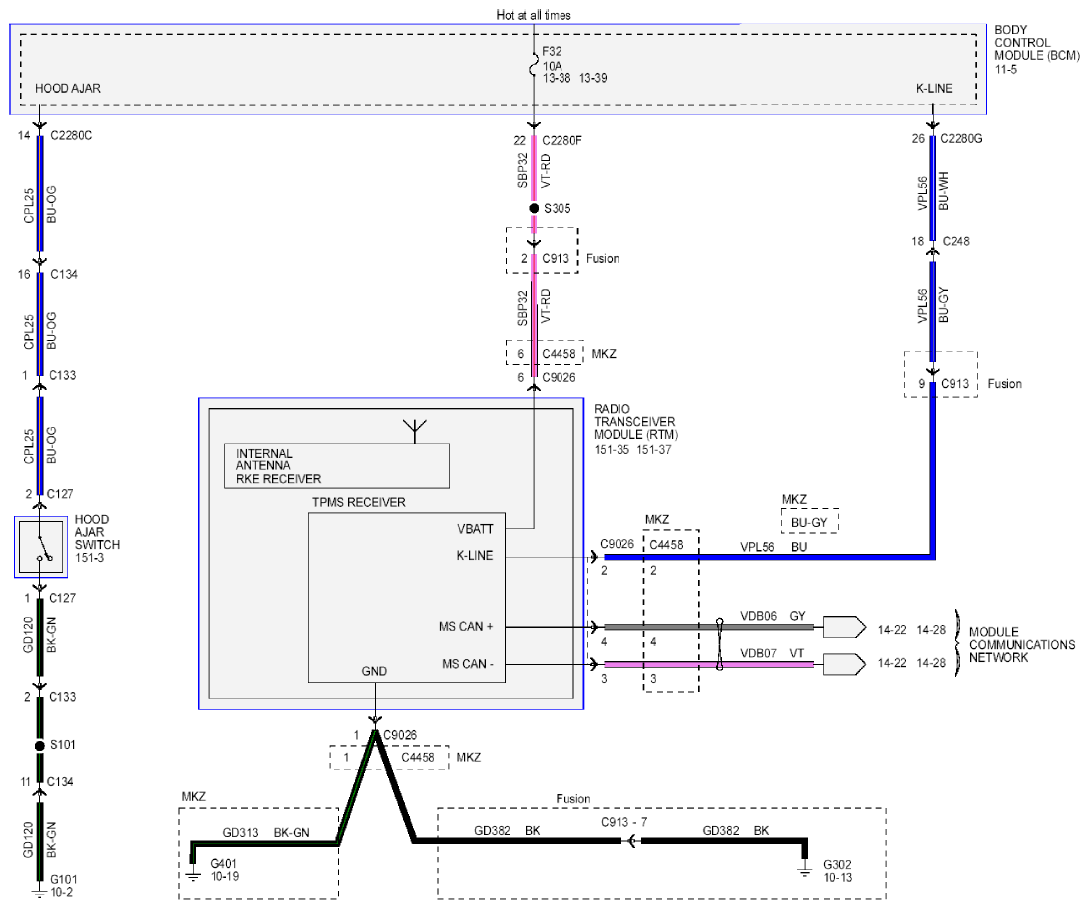

Fig 6: Remote Keyless Entry And Alarm - Wiring Diagram (6 Of 6)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
