Remote Keyless Entry And Alarm: Memory

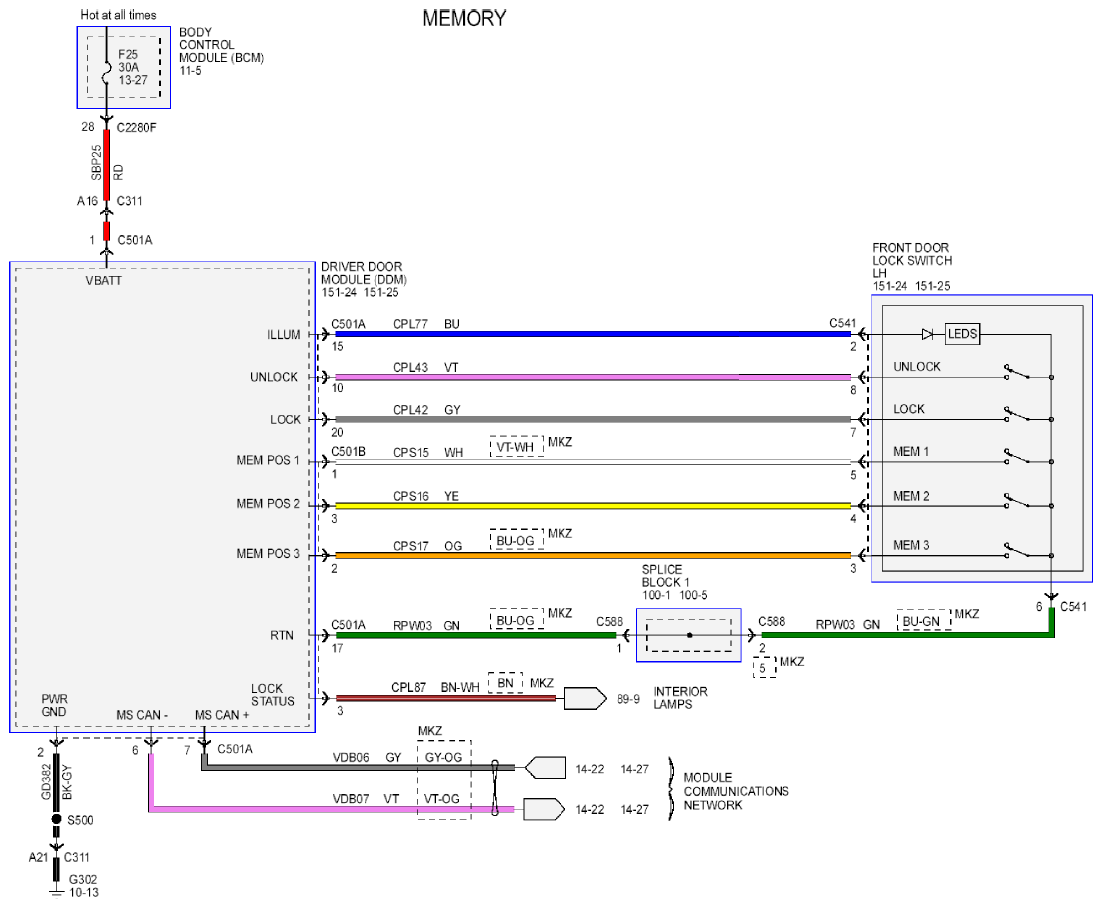

Fig 1: Remote Keyless Entry And Alarm (Memory) - Wiring Diagram

G09269537

Courtesy of FORD MOTOR CO.
