Remote Keyless Entry And Alarm
>>
Manual Luggage Compartment
Manual Luggage Compartment

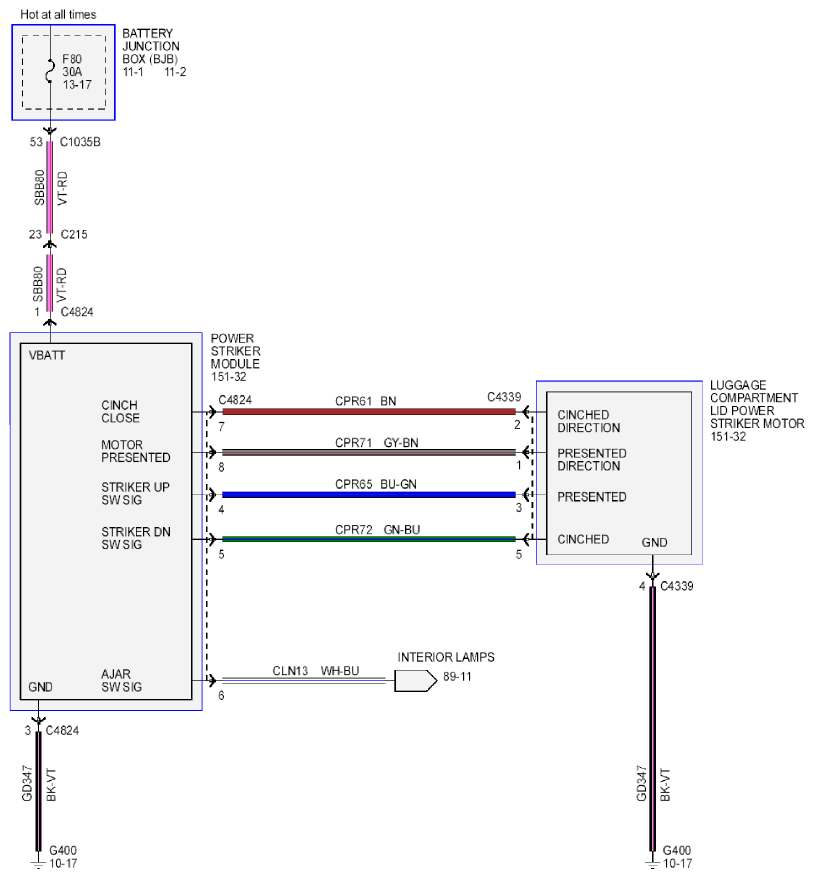

Fig 1: Manual Luggage Compartment - Wiring Diagram (1 Of 2)
Courtesy of FORD MOTOR CO.

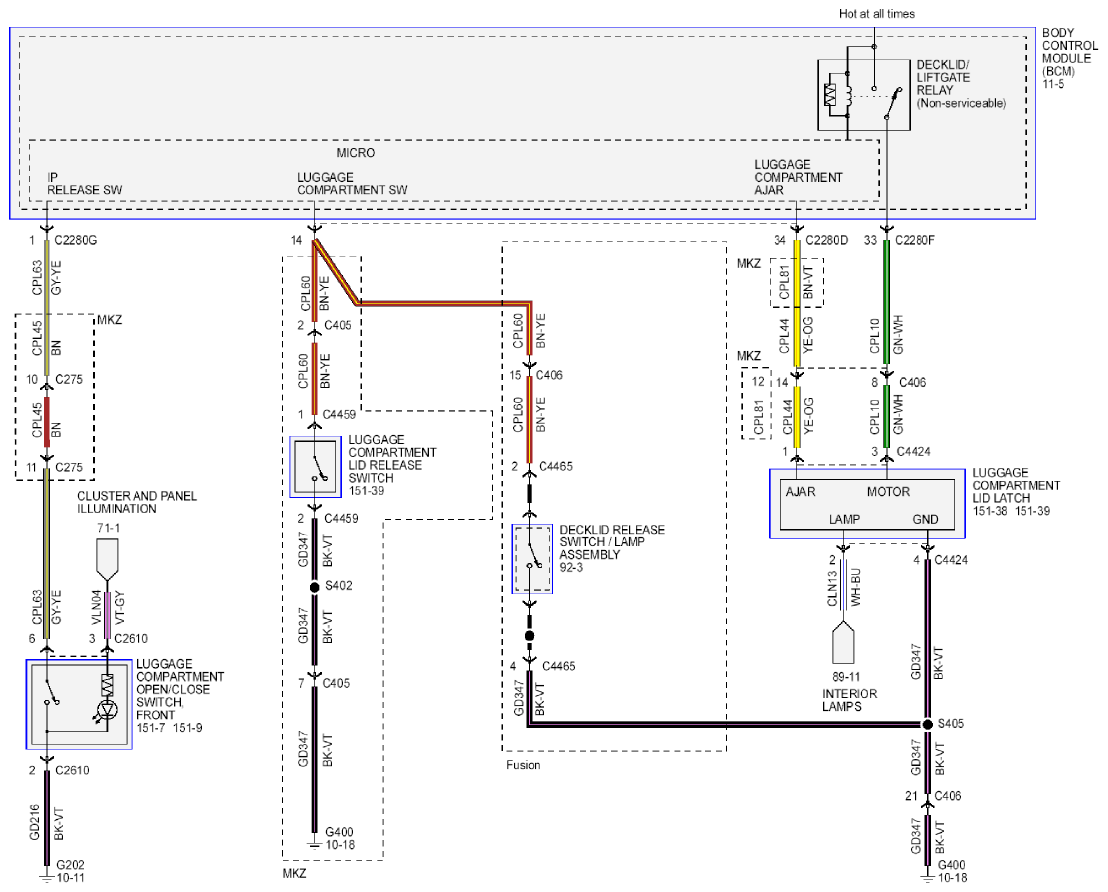

Fig 2: Manual Luggage Compartment - Wiring Diagram (2 Of 2)
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
