Remote Keyless Entry And Alarm: MKZ

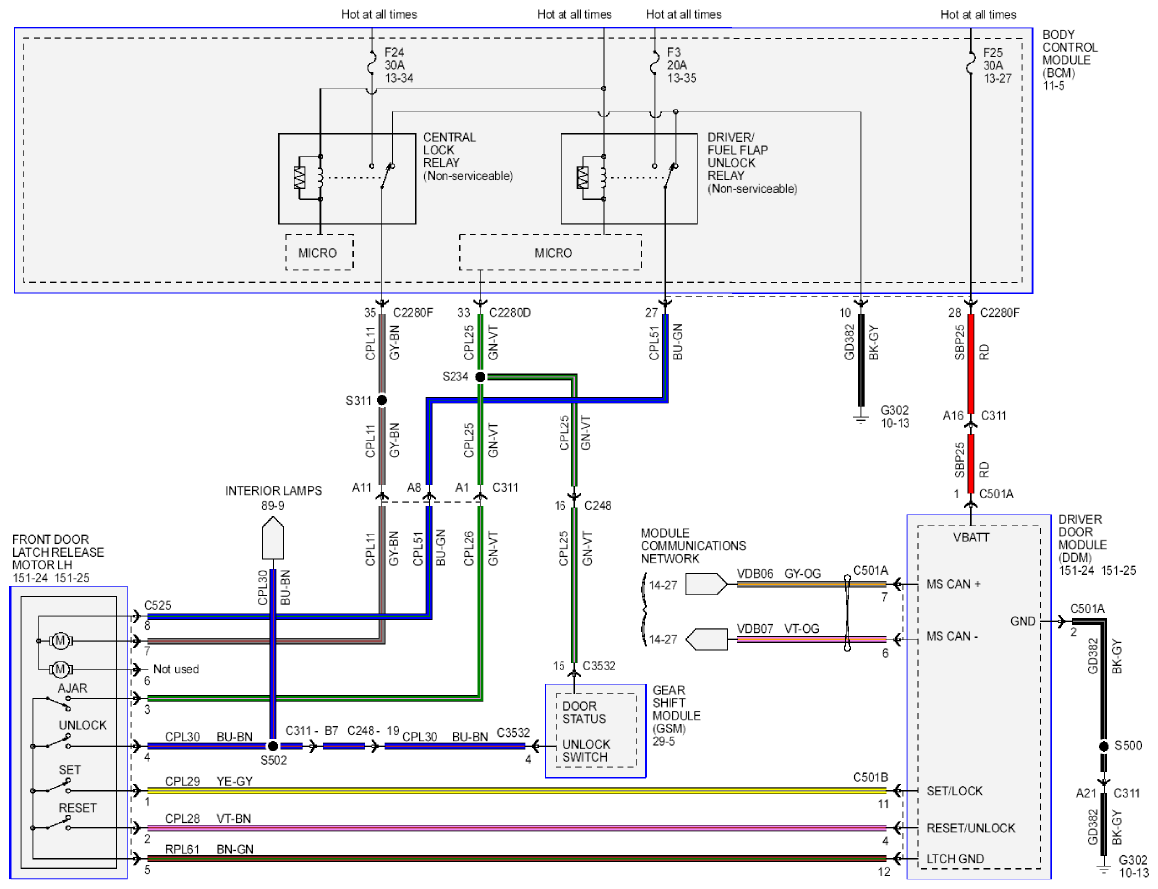

Fig 1: Remote Keyless Entry And Alarm (MKZ) - Wiring Diagram

G09269532

Courtesy of FORD MOTOR CO.
