Power Windows: MKZ

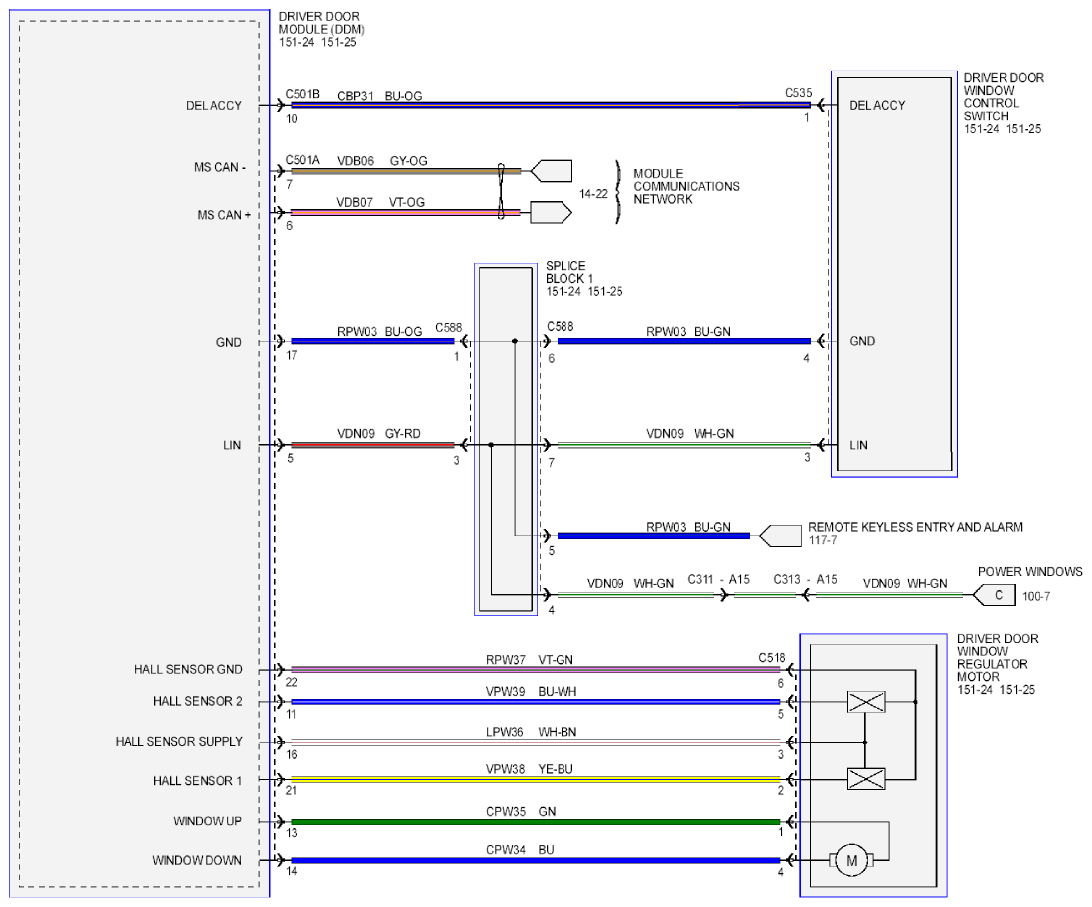

Fig 1: Power Windows - MKZ - Wiring Diagram (1 Of 4)
G09269512Courtesy of FORD MOTOR CO.

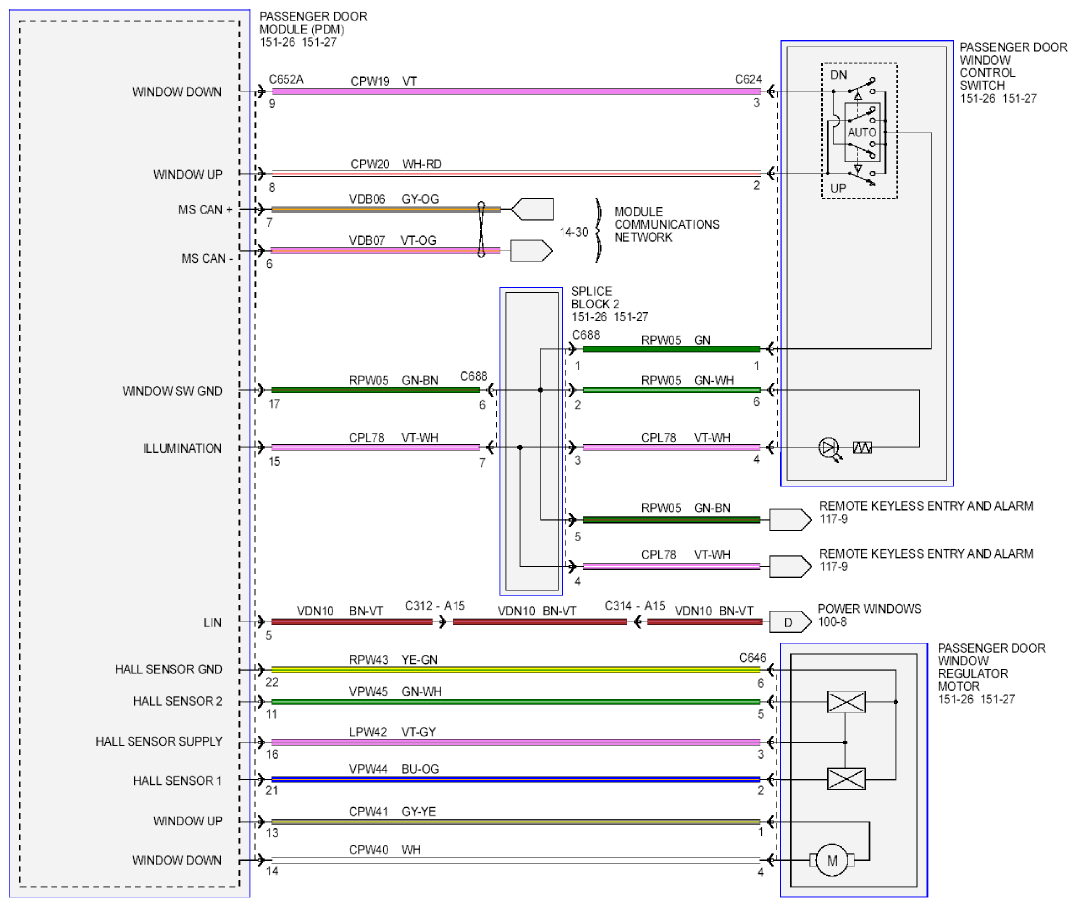

Fig 2: Power Windows - MKZ - Wiring Diagram (2 Of 4)
G09269513Courtesy of FORD MOTOR CO.

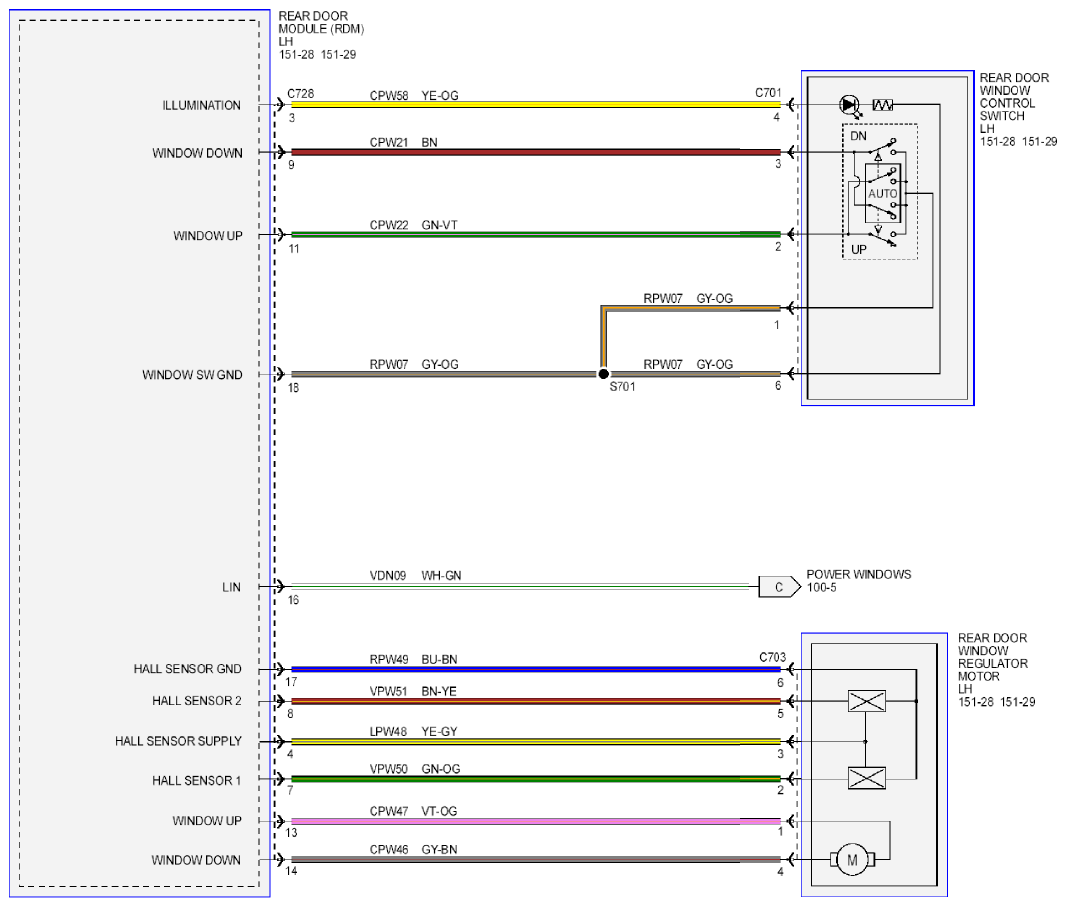

Fig 3: Power Windows - MKZ - Wiring Diagram (3 Of 4)
G09269514Courtesy of FORD MOTOR CO.

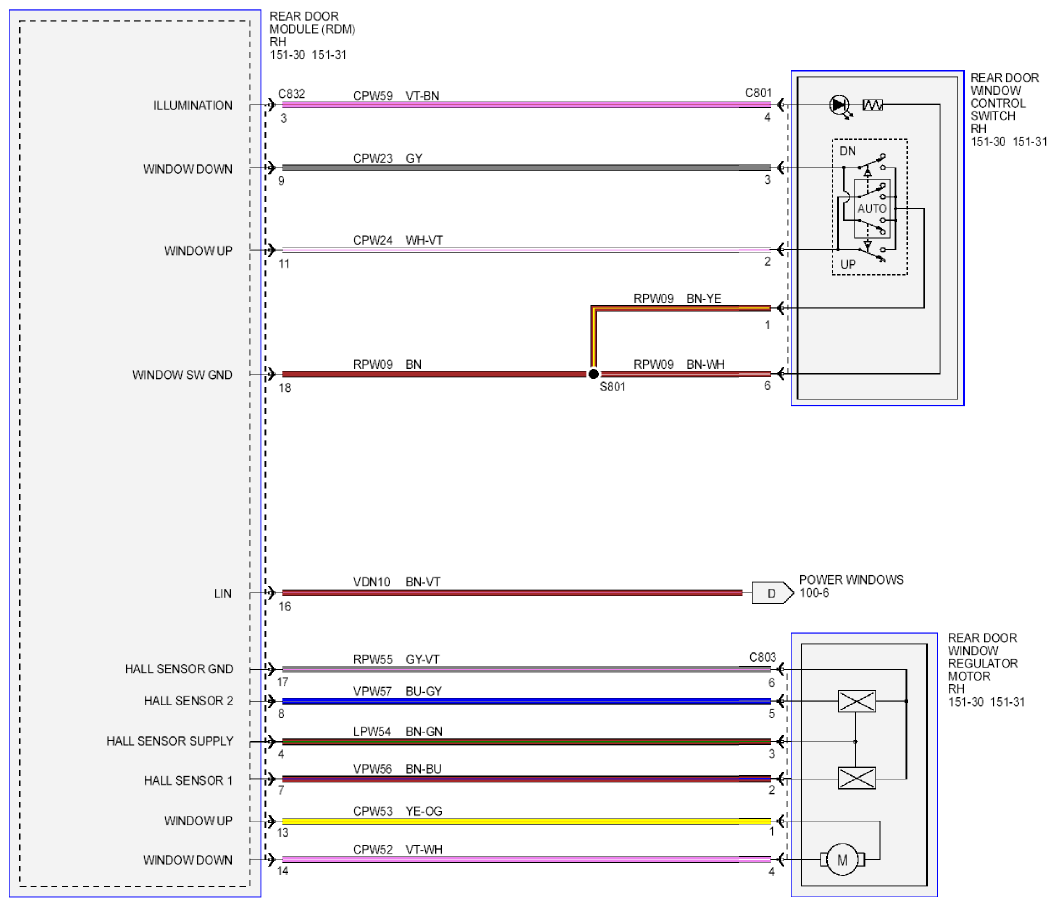

Fig 4: Power Windows - MKZ - Wiring Diagram (4 Of 4)
G09269515Courtesy of FORD MOTOR CO.
