Power Windows: Fusion

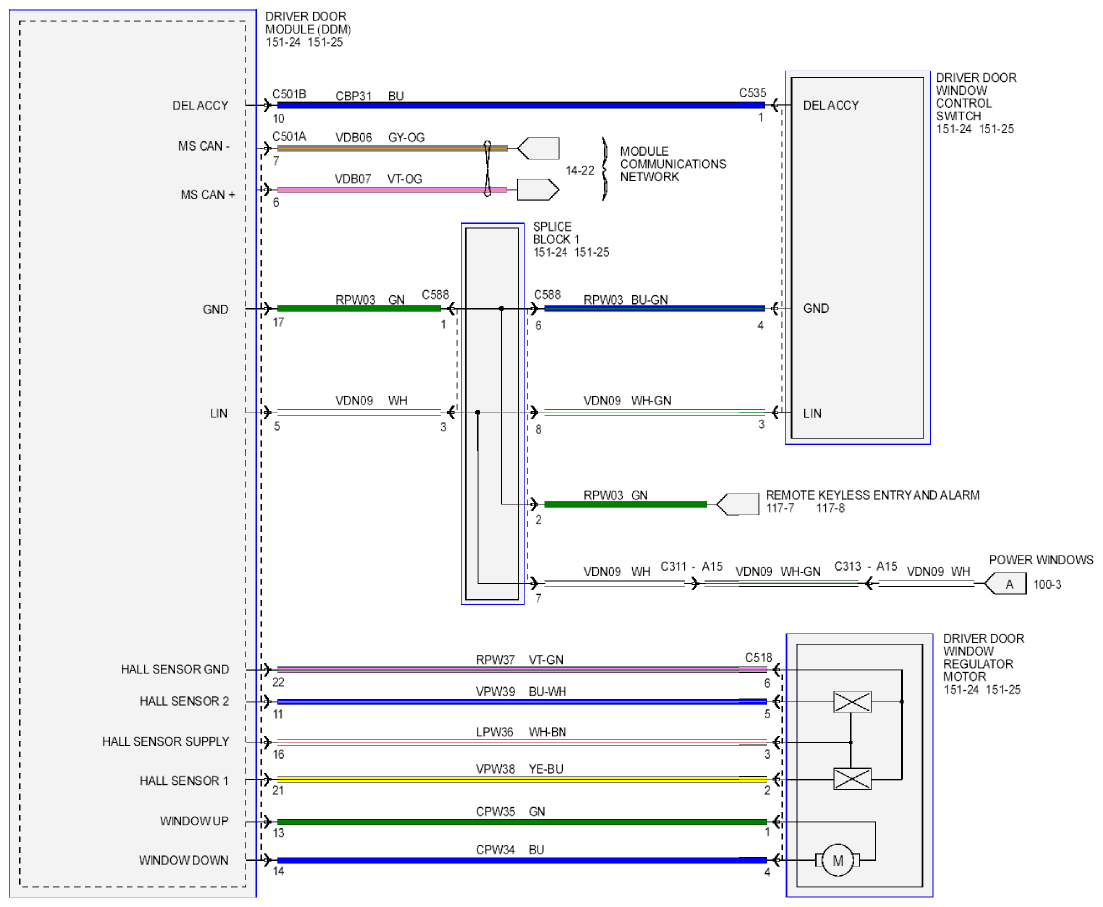

Fig 1: Power Windows - Fusion - Wiring Diagram (1 Of 4)
G09269508Courtesy of FORD MOTOR CO.

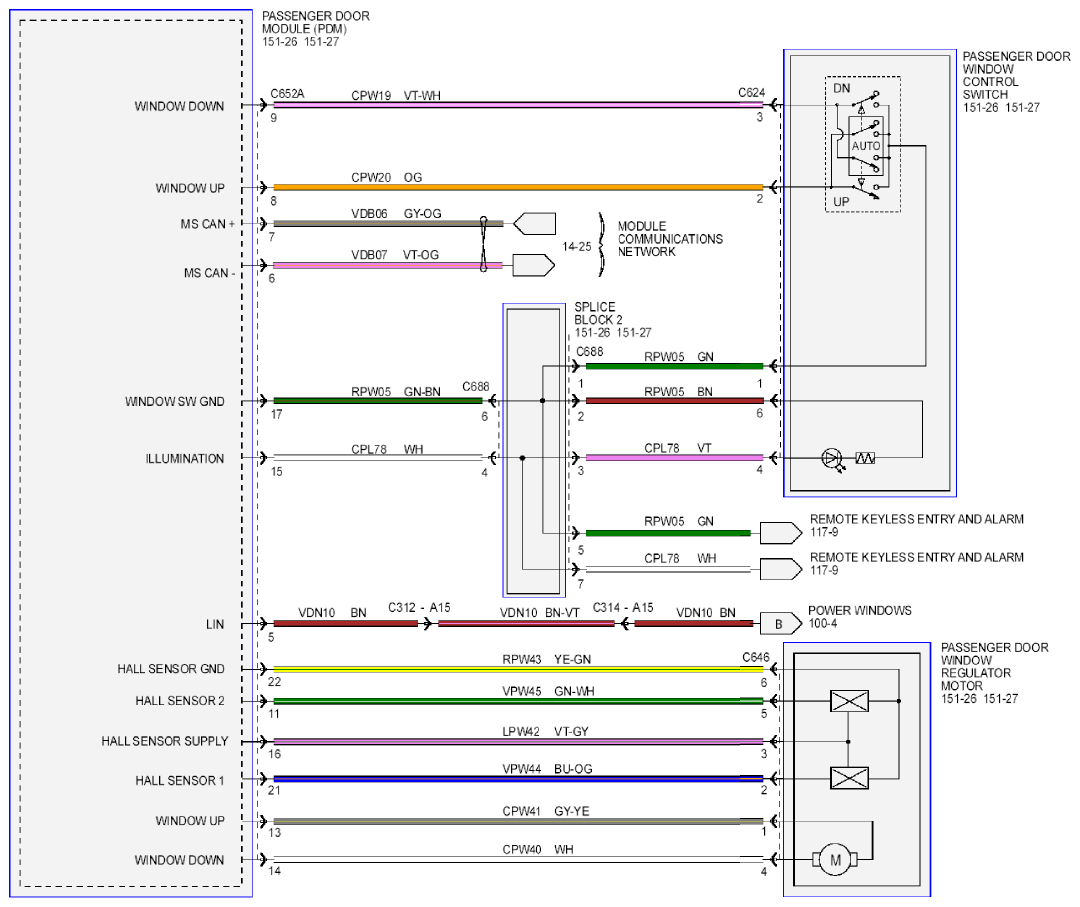

Fig 2: Power Windows - Fusion - Wiring Diagram (2 Of 4)
G09269509Courtesy of FORD MOTOR CO.
Fig 3: Power Windows - Fusion - Wiring Diagram (3 Of 4)
G09269510Courtesy of FORD MOTOR CO.

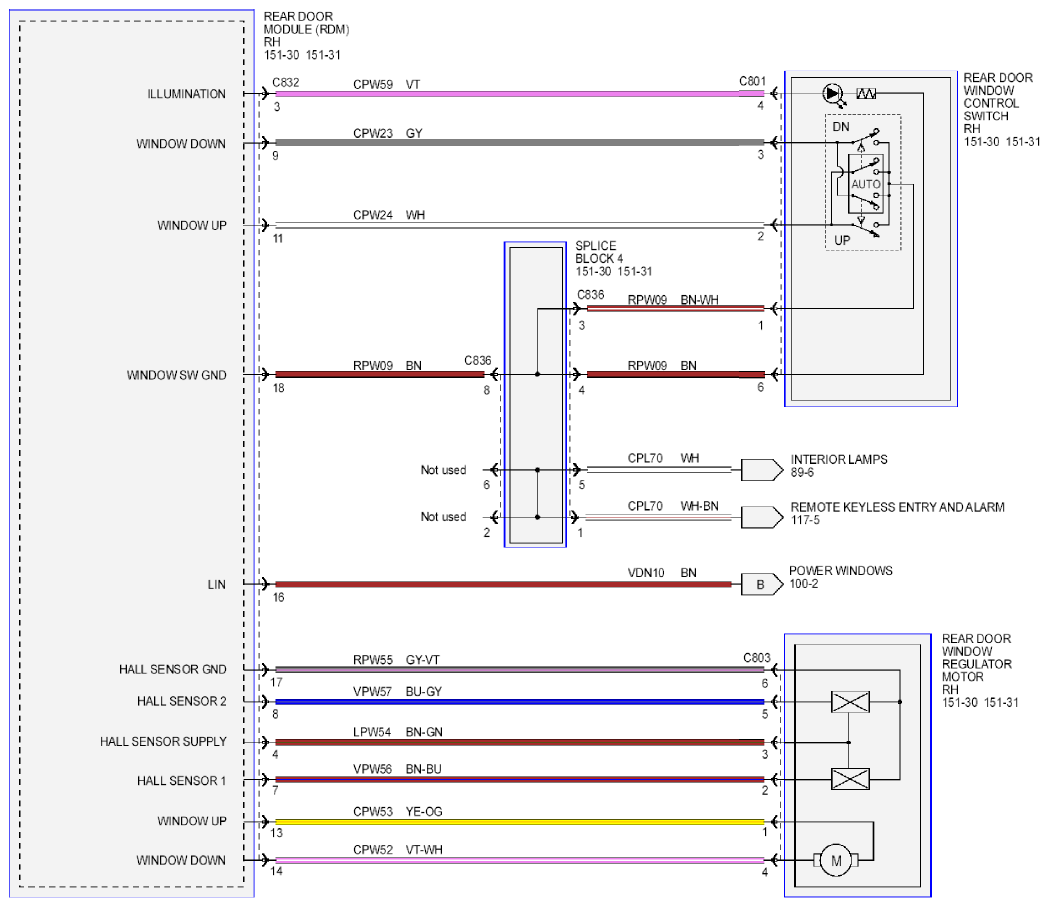

Fig 4: Power Windows - Fusion - Wiring Diagram (4 Of 4)
G09269511Courtesy of FORD MOTOR CO.
