Fusion Power Seat - Passenger

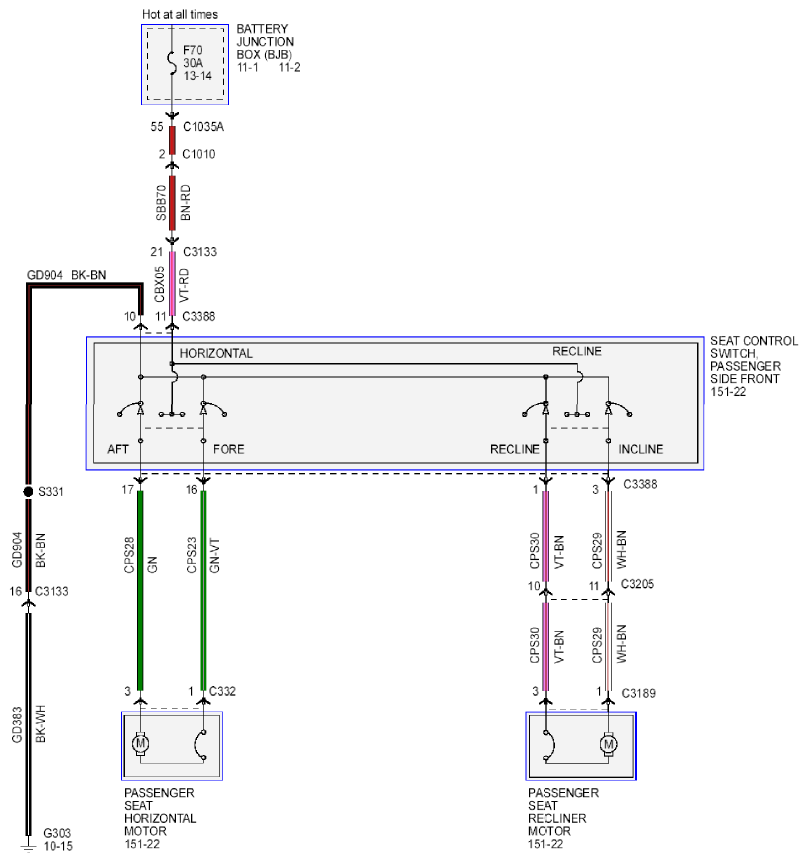

Fig 1: Power Seats Fusion Power Seat - Passenger - Wiring Diagram

G09269559

Courtesy of FORD MOTOR CO.
