Fusion 10-Way Power Seat Without Memory - Driver

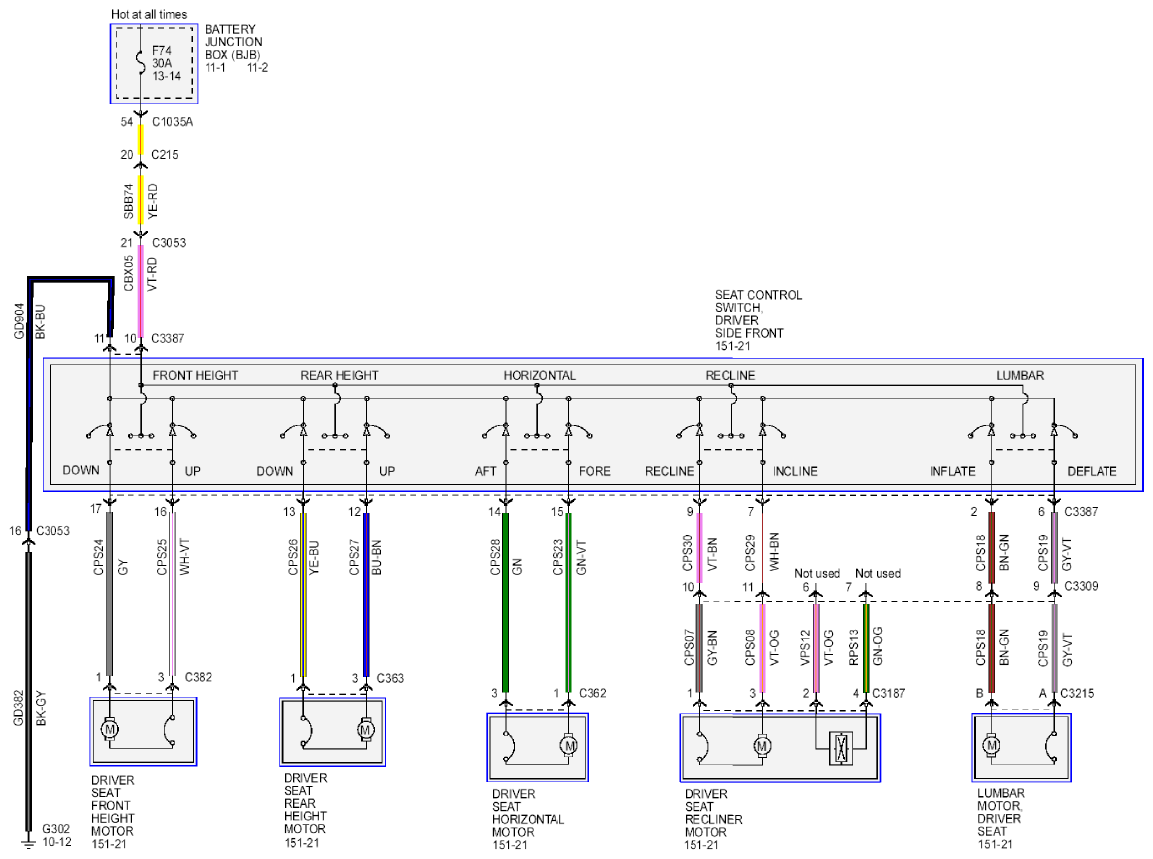

Fig 1: Power Seats Fusion 10 Way Power Seat Without Memory - Driver - Wiring Diagram

G09269558

Courtesy of FORD MOTOR CO.
