Power Mirrors: Notes

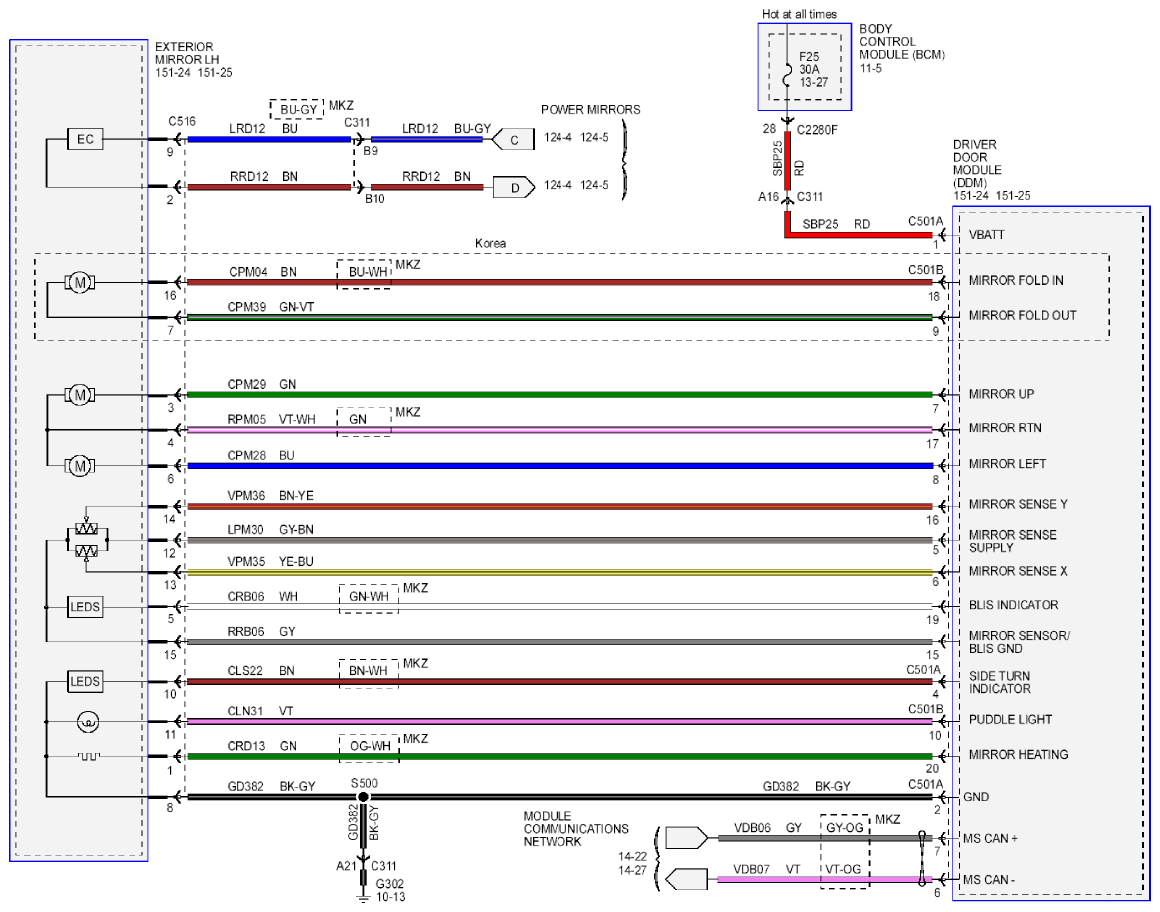

Fig 1: Power Mirrors - Wiring Diagram (1 Of 3)
G09269568Courtesy of FORD MOTOR CO.

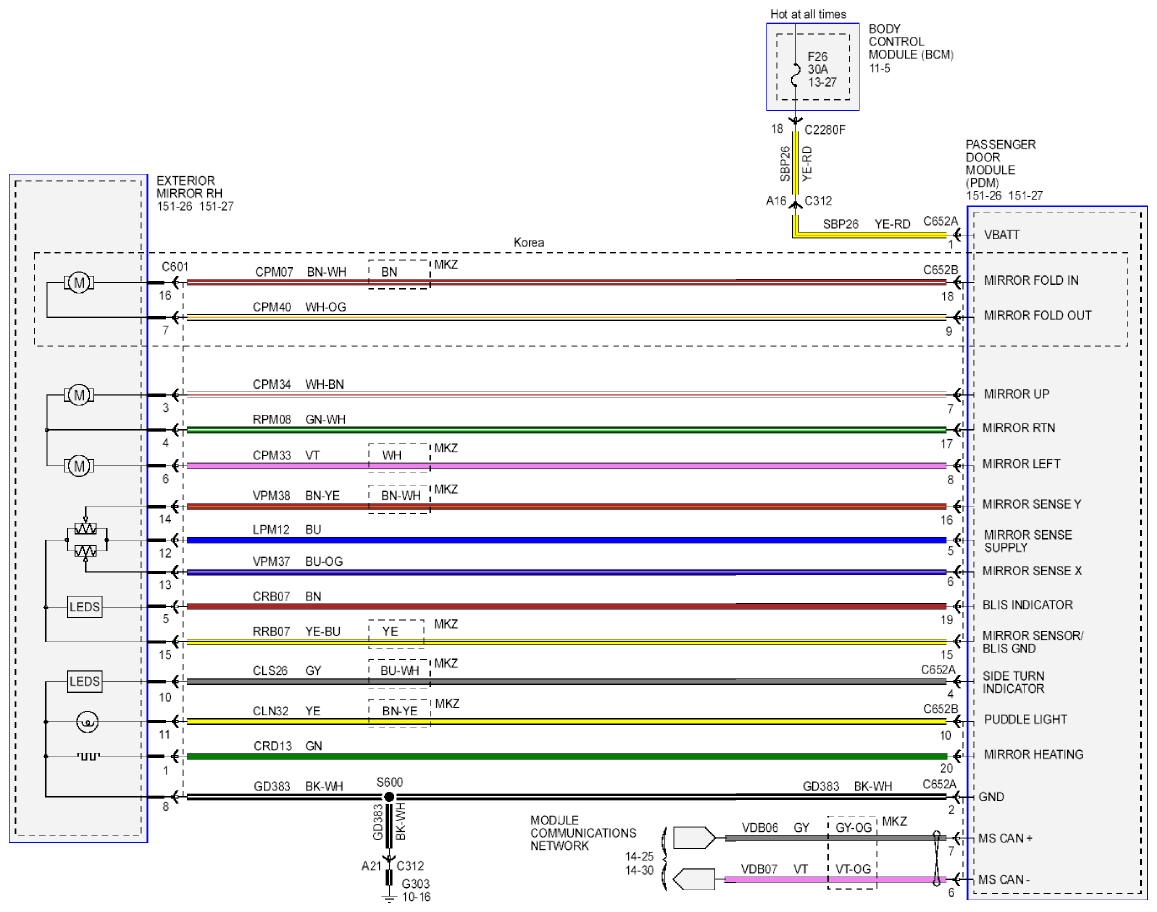

Fig 2: Power Mirrors - Wiring Diagram (2 Of 3)
G09269569Courtesy of FORD MOTOR CO.

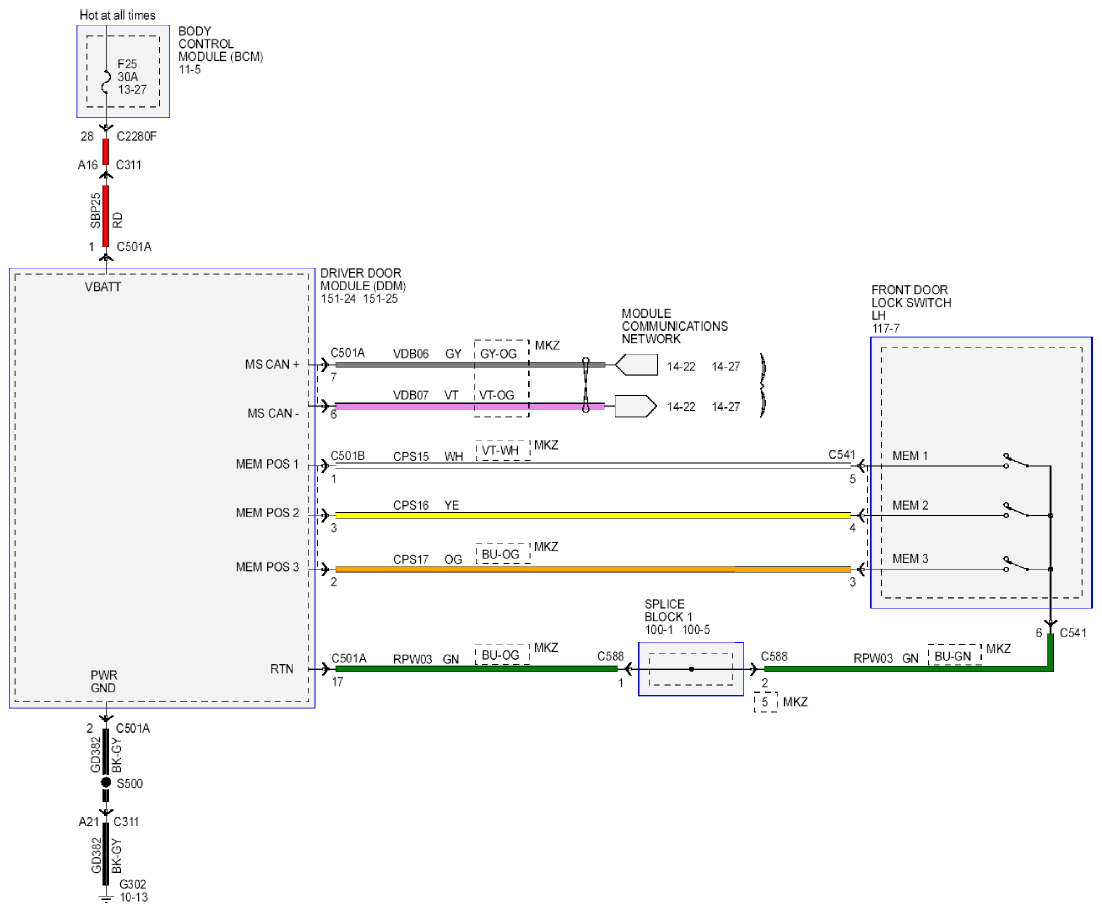

Fig 3: Power Mirrors - Wiring Diagram (3 Of 3)
G09269570Courtesy of FORD MOTOR CO.
