Without Push Button Start

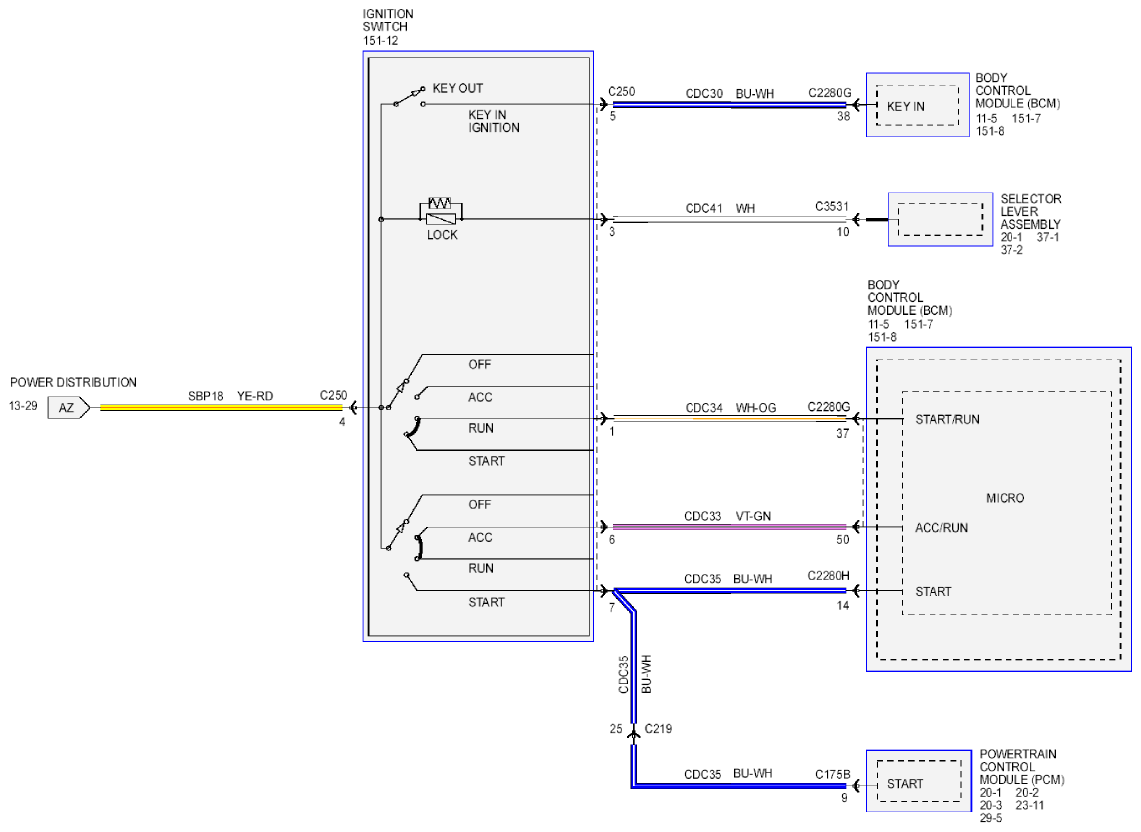

Fig 1: Power Distribution - Wiring Diagram - Without Push Button Start

G09269347

Courtesy of FORD MOTOR CO.
