Power Distribution/SJB
>>
Mega Fuses F2, F3, F5, F6, F8 Midi
Mega Fuses F2, F3, F5, F6, F8 Midi

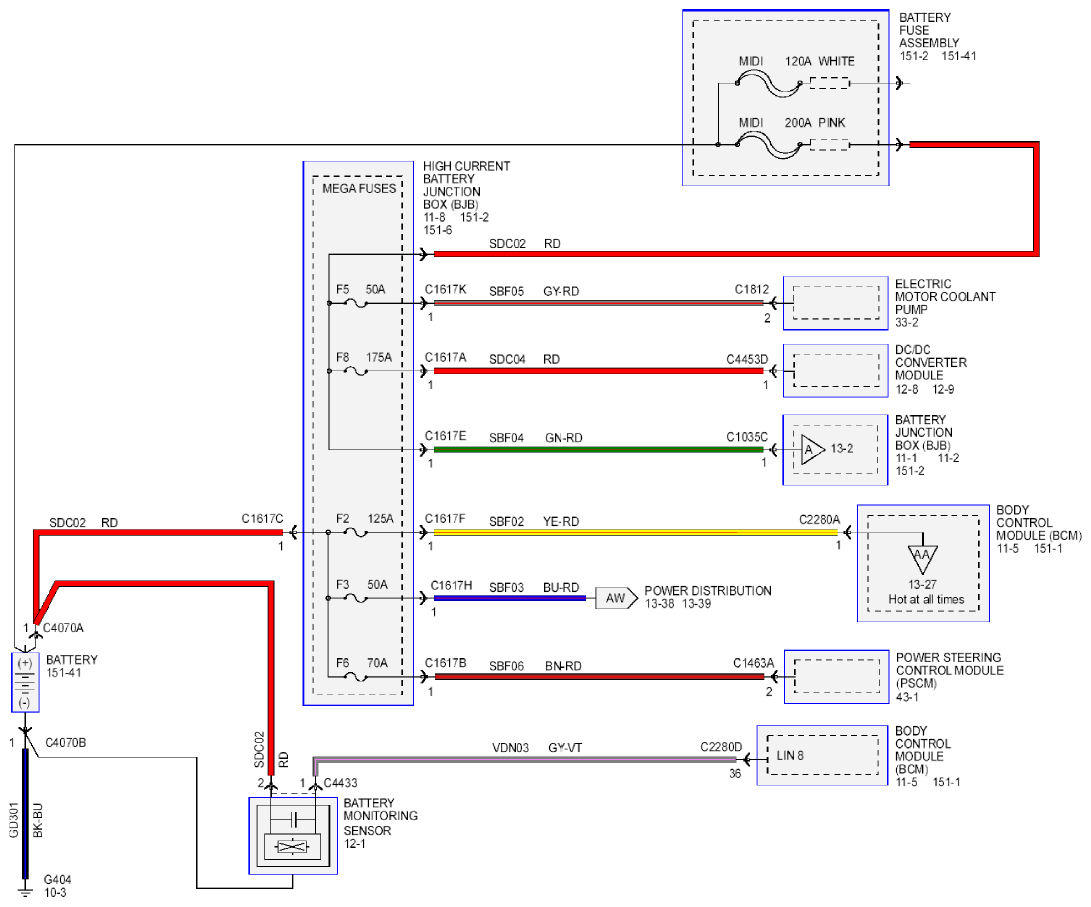

Fig 1: Power Distribution - Wiring Diagram - Mega Fuses F2, F3, F5, F6, F8 MIDI
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
