Power Distribution/SJB: MKZ

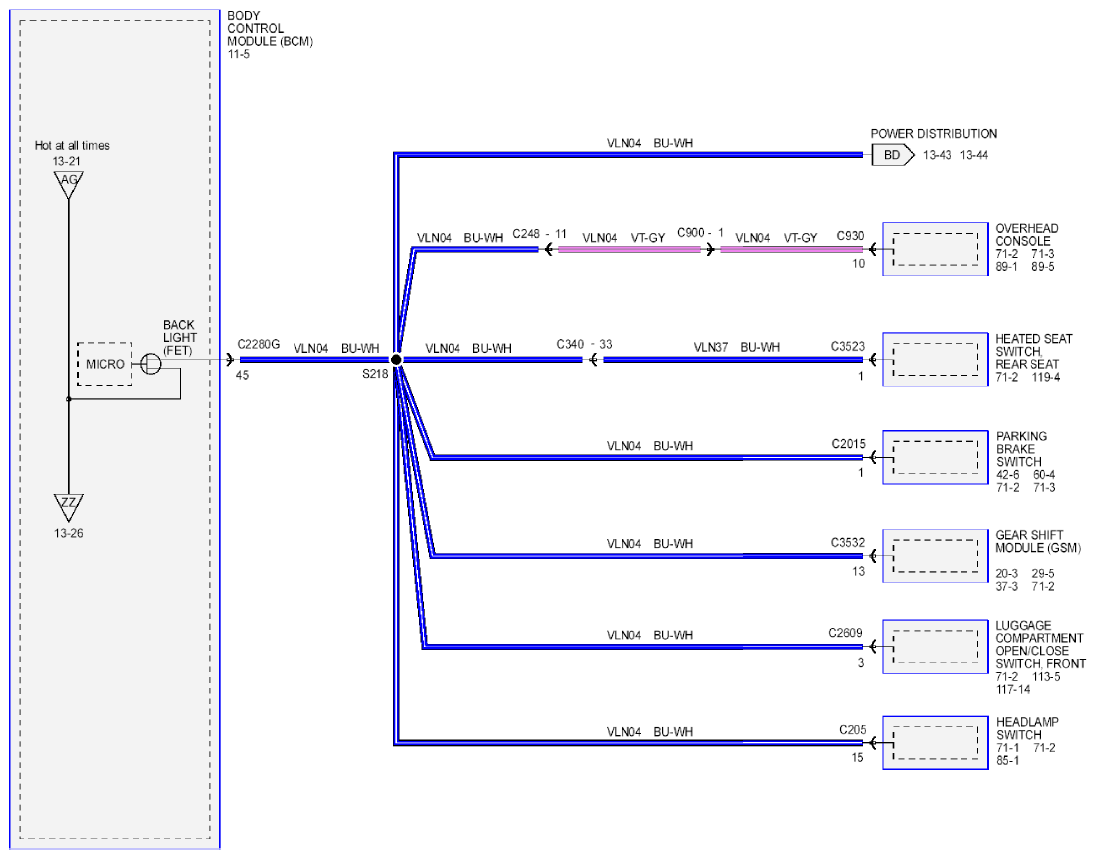

Fig 1: Power Distribution - Wiring Diagram - MKZ (1 Of 3)
G09269339Courtesy of FORD MOTOR CO.

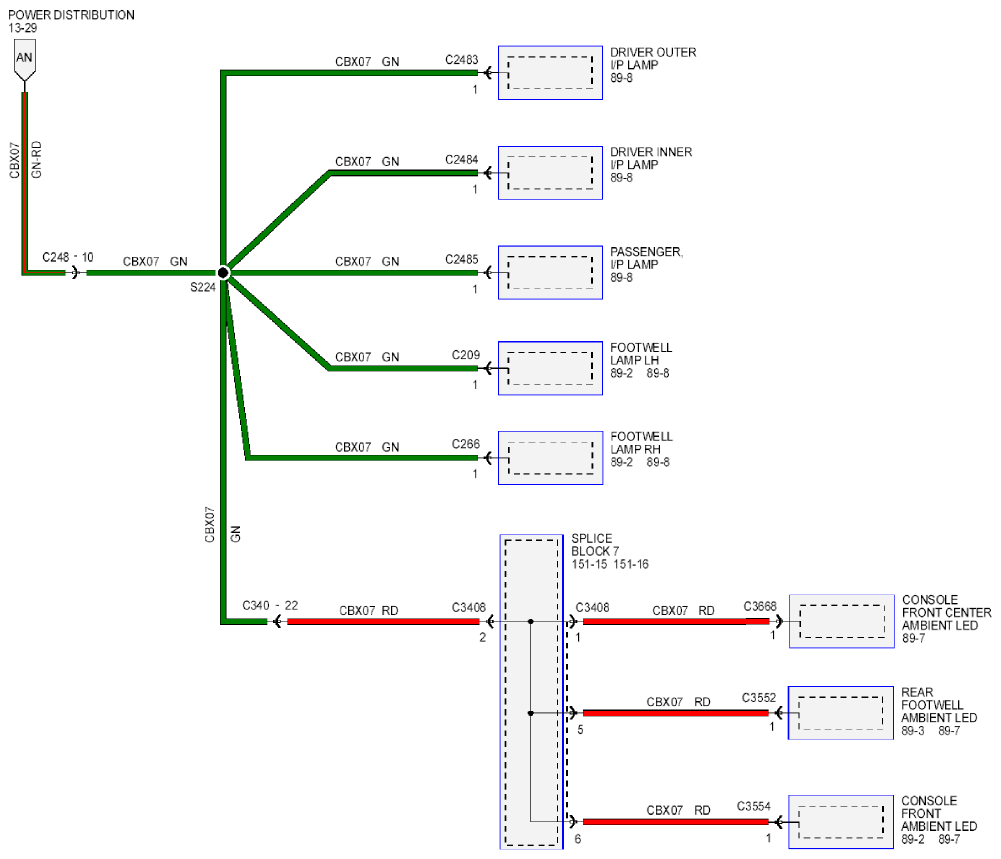

Fig 2: Power Distribution - Wiring Diagram - MKZ (2 Of 3)
G09269346Courtesy of FORD MOTOR CO.

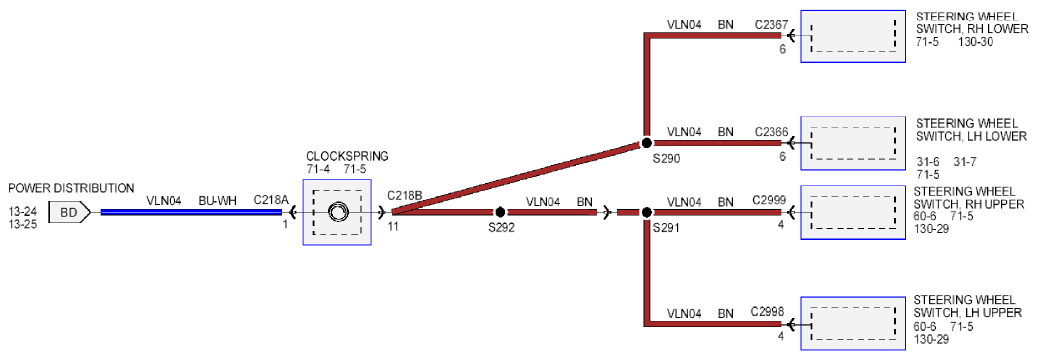

Fig 3: Power Distribution - Wiring Diagram - MKZ (3 Of 3)
G09269358Courtesy of FORD MOTOR CO.
