Power Distribution/SJB: Fusion

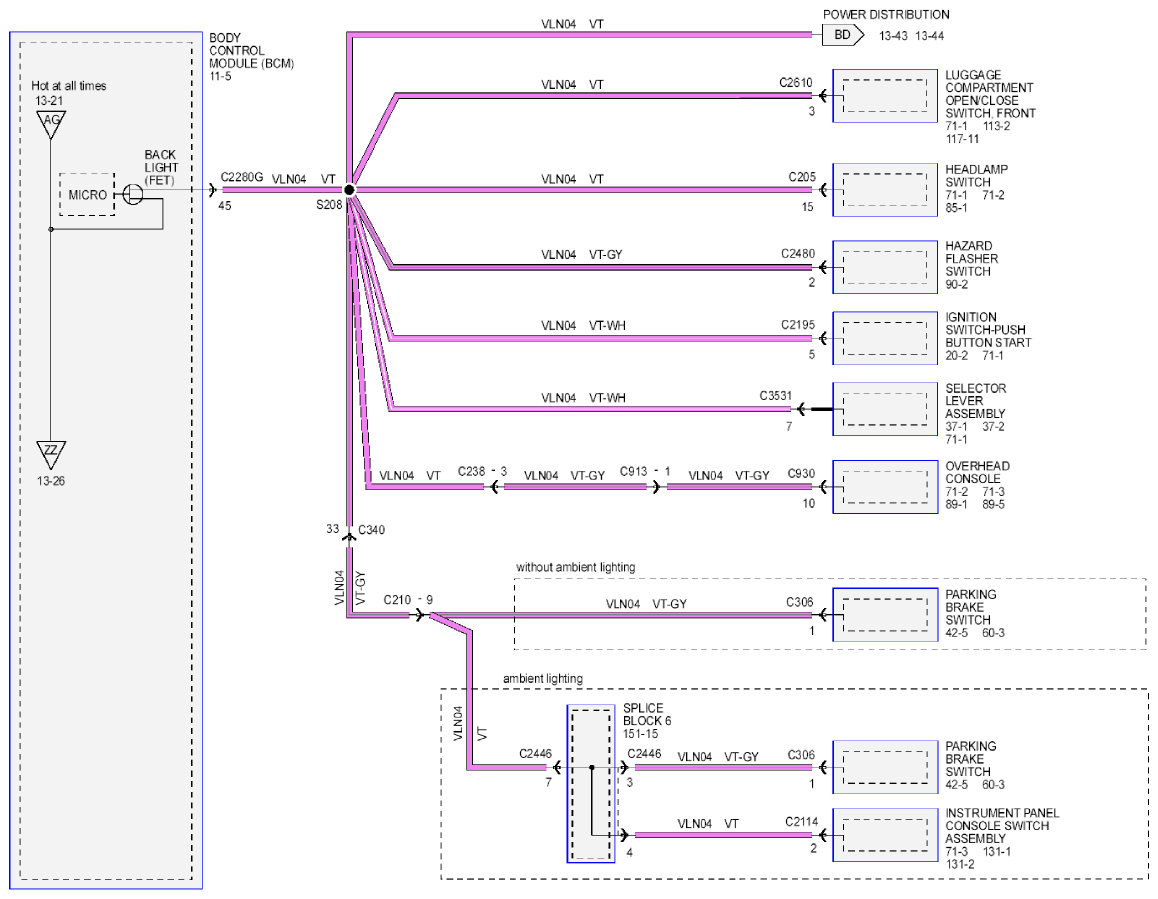

Fig 1: Power Distribution - Wiring Diagram - Fusion (1 Of 3)
G09269338Courtesy of FORD MOTOR CO.

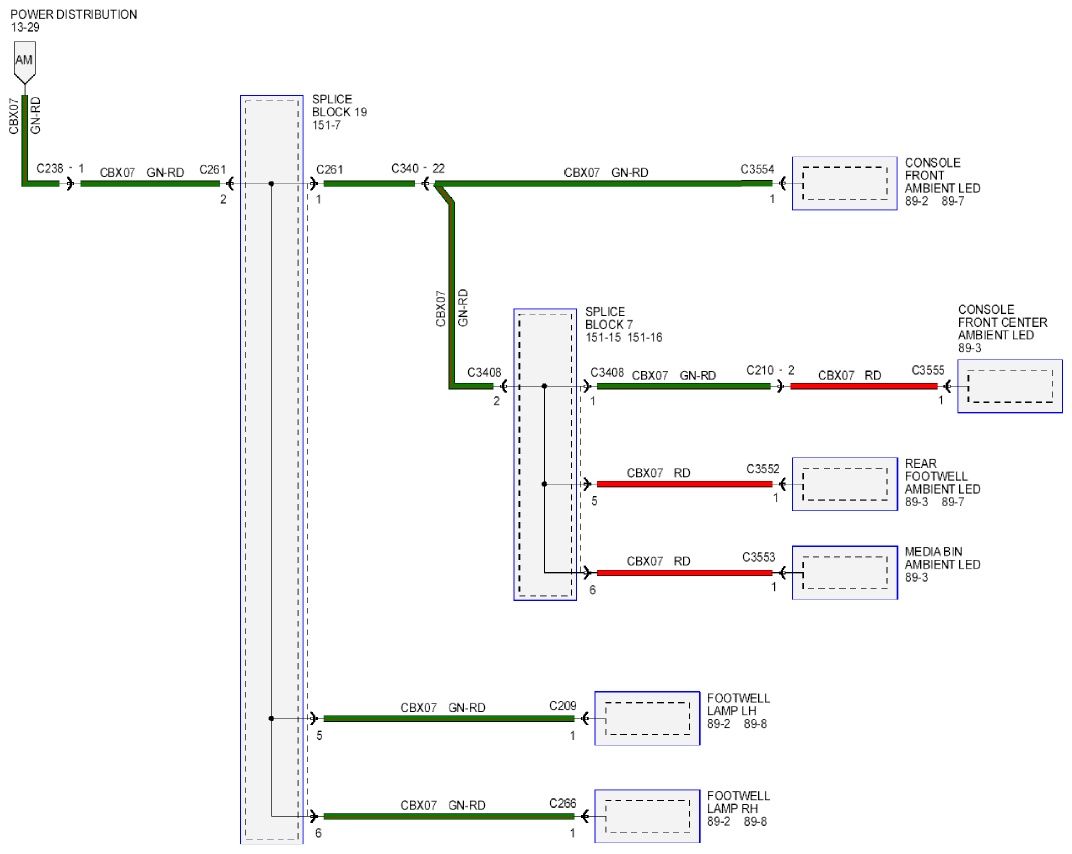

Fig 2: Power Distribution - Wiring Diagram - Fusion (2 Of 3)
G09269345Courtesy of FORD MOTOR CO.

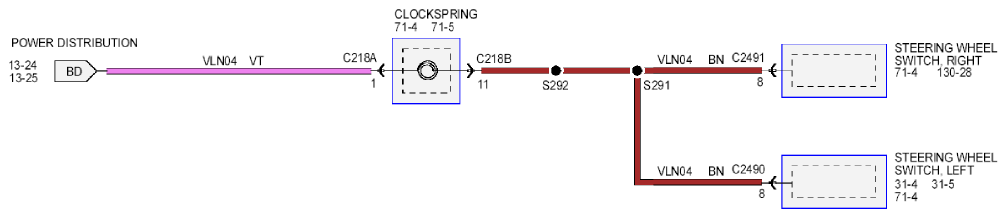

Fig 3: Power Distribution - Wiring Diagram - Fusion (3 Of 3)
G09269357Courtesy of FORD MOTOR CO.
