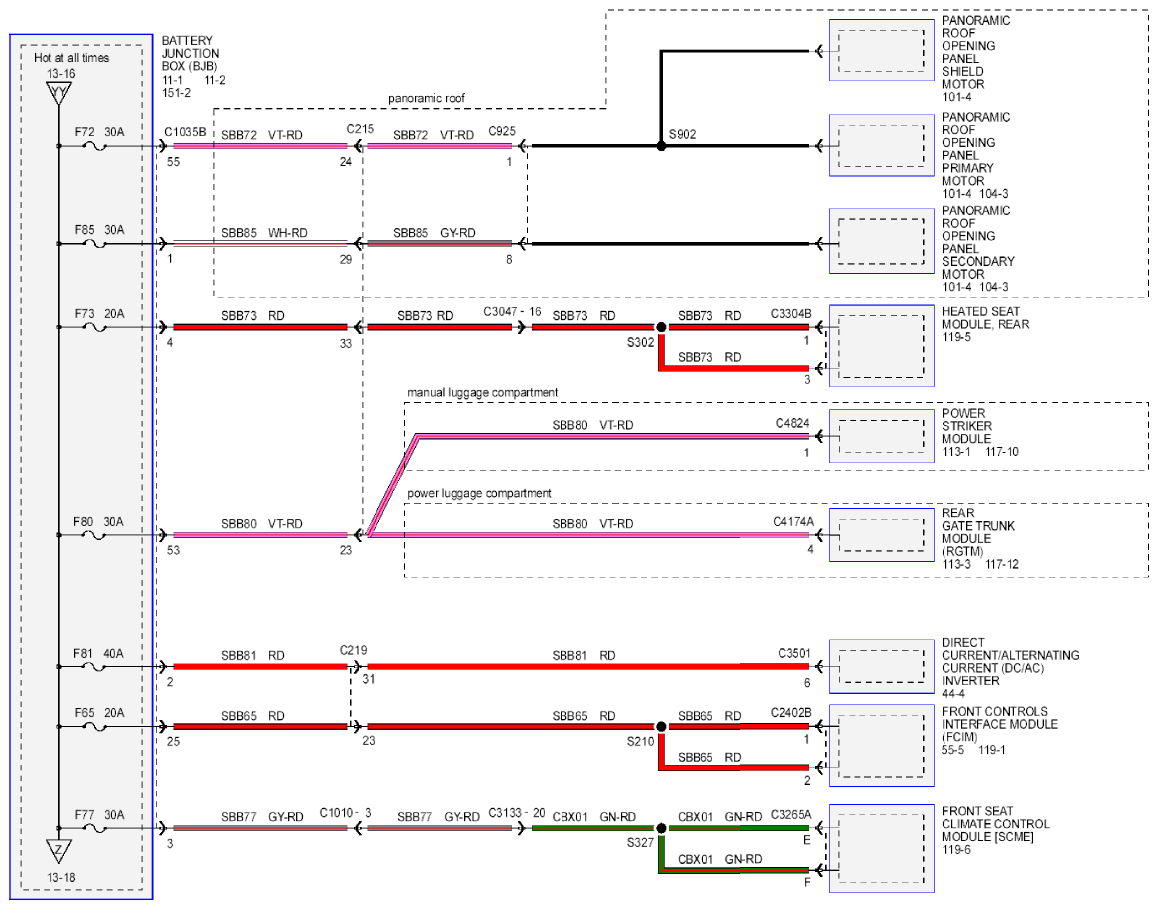

Home >> Ford >> 2014 >> Fusion Titanium Hybrid >> Repair and Diagnosis >> Electrical >> Wiring Diagrams >> OEM Wiring Diagrams -- (Hybrid) >> Power Distribution/SJB >> F65, F72, F73, F77, F80, F81, F85
