Power Distribution/SJB
>>
F46, F47, F69, F70, F74, F82
F46, F47, F69, F70, F74, F82

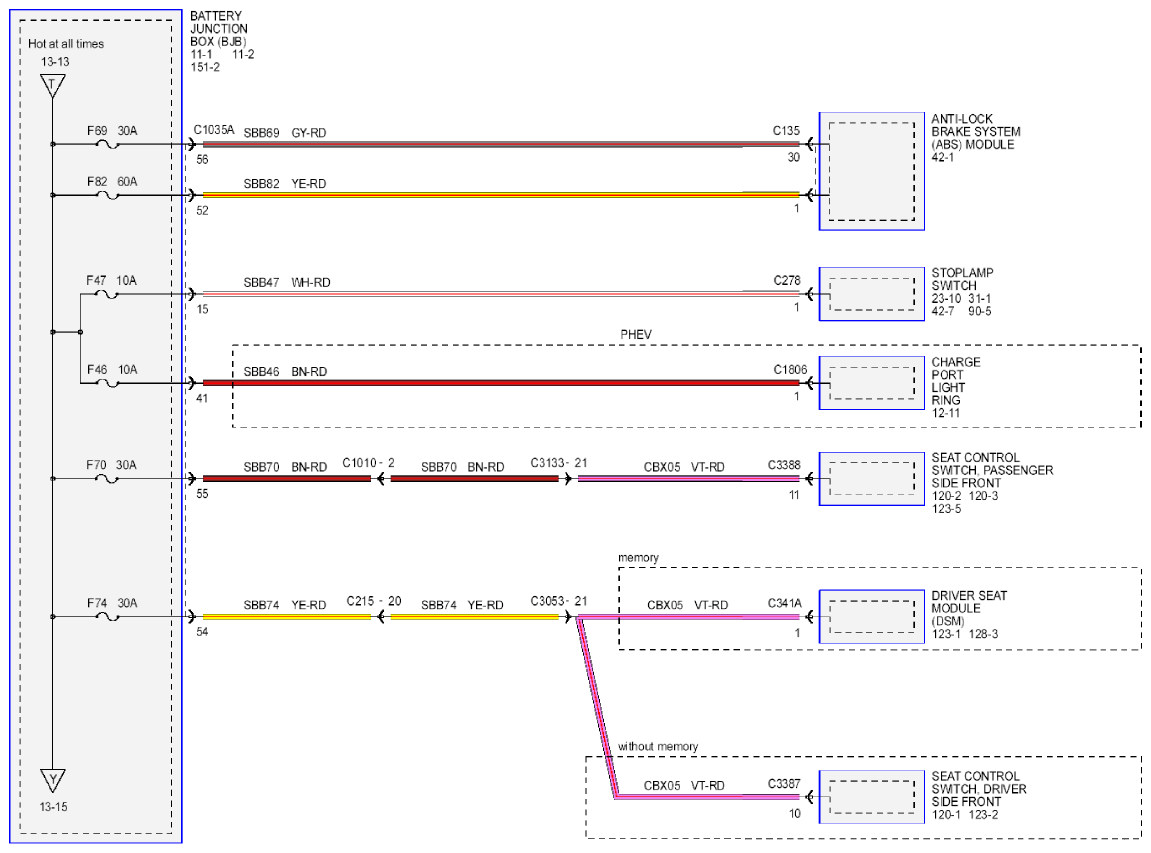

Fig 1: Power Distribution - Wiring Diagram - F46, F47, F69, F70, F74, F82
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
