Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Power Distribution/SJB
>>
F45, F59, F60
F45, F59, F60

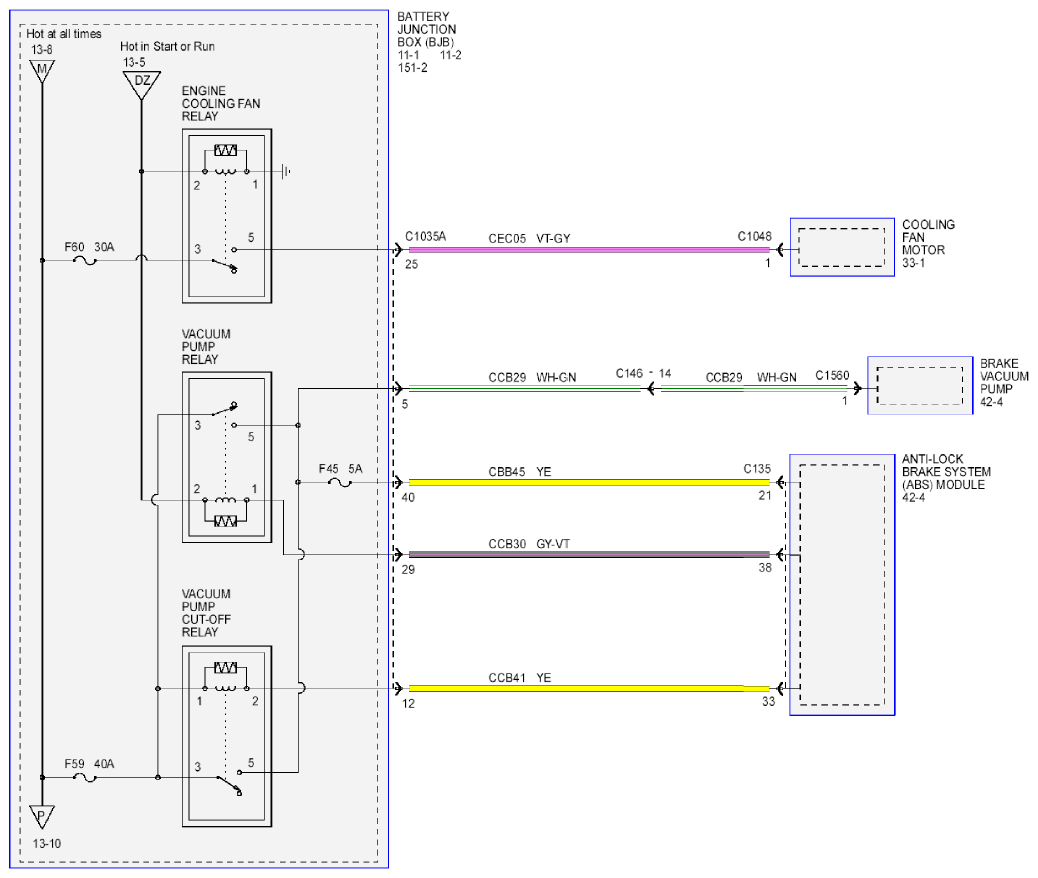

Fig 1: Power Distribution - Wiring Diagram - F45, F59, F60
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
