Fusion Titanium Hybrid
>>
Repair and Diagnosis
>>
Electrical
>>
Wiring Diagrams
>>
OEM Wiring Diagrams -- (Hybrid)
>>
Power Distribution/SJB
>>
F29, F51, F52, F54, F55
F29, F51, F52, F54, F55

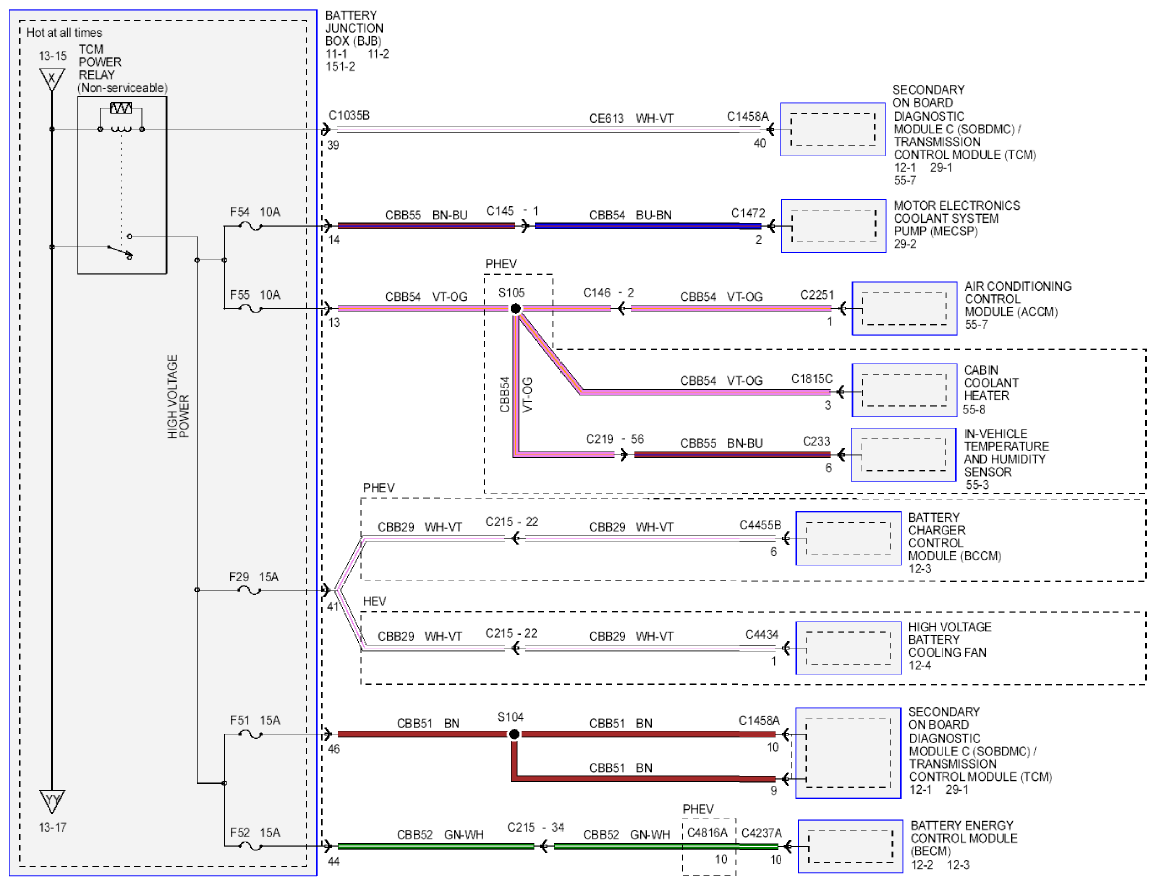

Fig 1: Power Distribution - Wiring Diagram - F29, F51, F52, F54, F55
Courtesy of FORD MOTOR CO.
Courtesy of FORD MOTOR CO.
