Power Distribution/SJB: F24

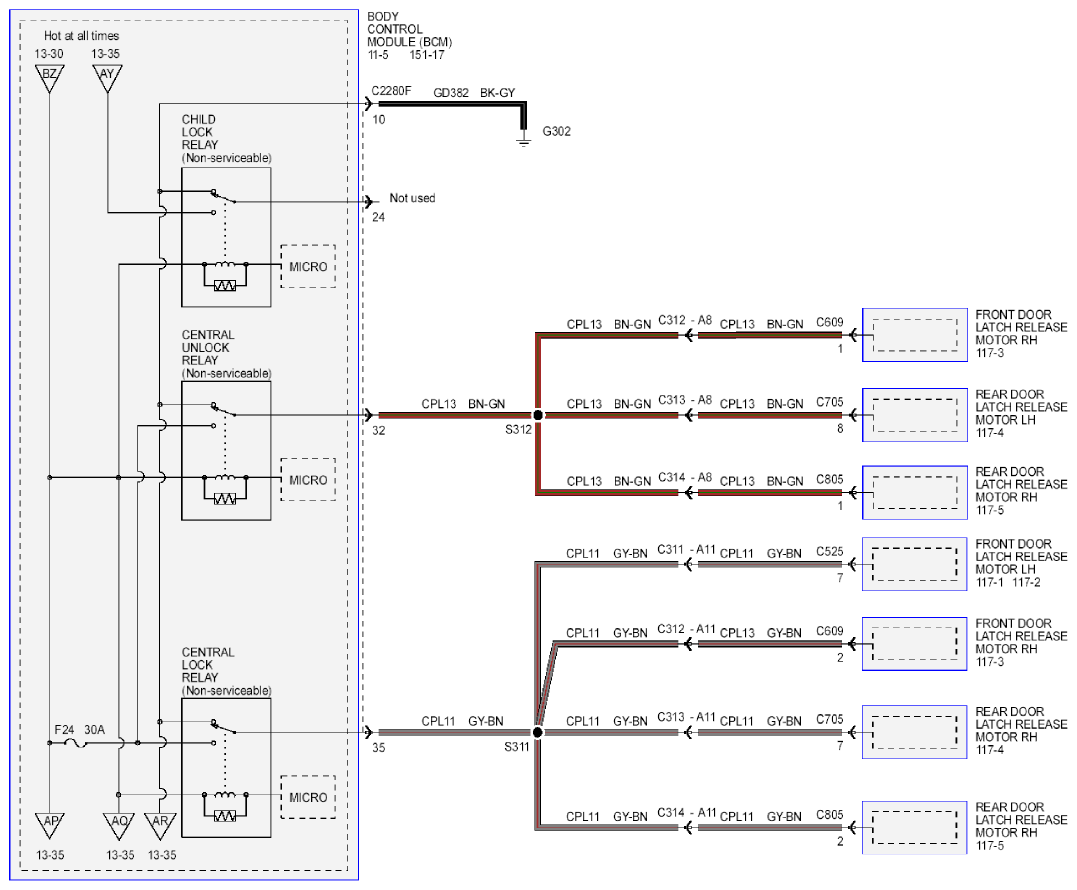

Fig 1: Power Distribution - Wiring Diagram - F24

G09269348

Courtesy of FORD MOTOR CO.
