Power Distribution/SJB: F23

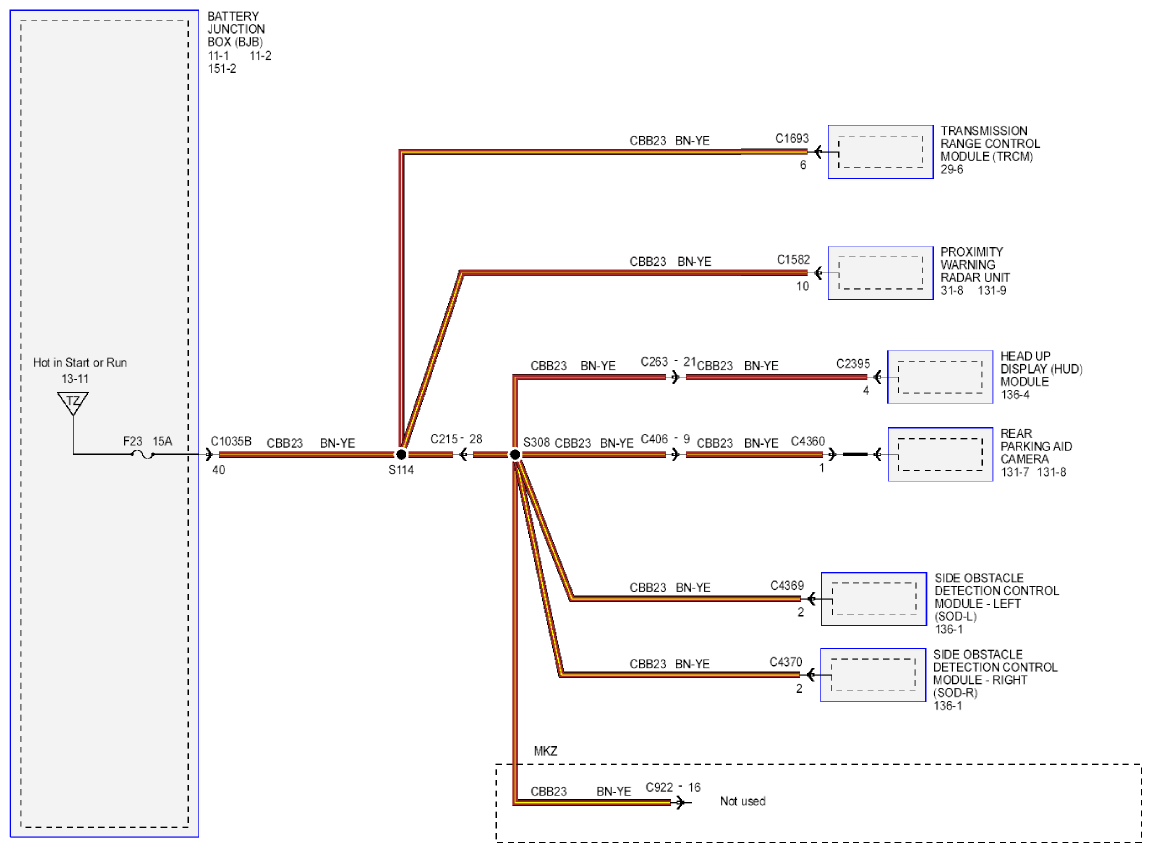

Fig 1: Power Distribution - Wiring Diagram - F23

G09269326

Courtesy of FORD MOTOR CO.
